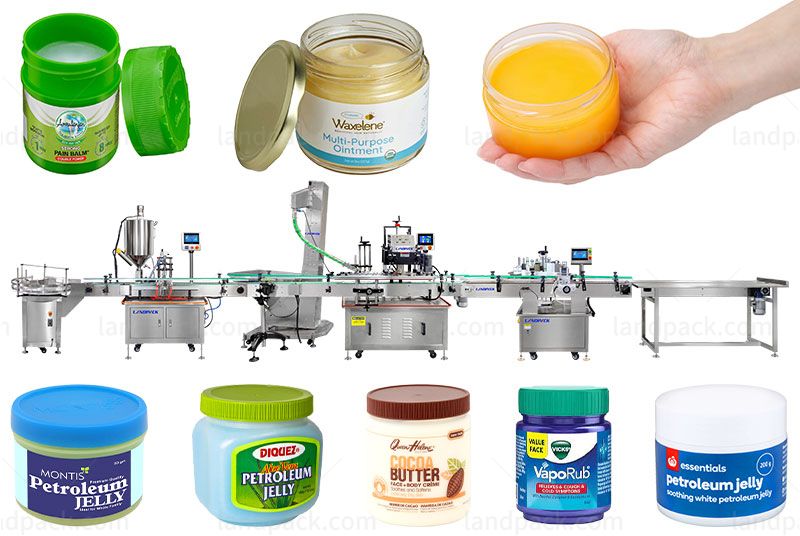

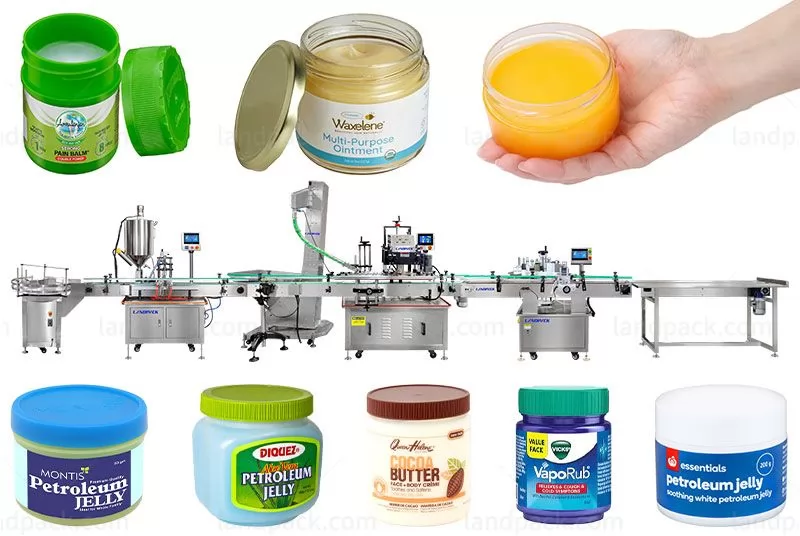

Application:
This liquid filling capping labeling line is widely used in filling various thick liquids, such as vaseline, paste, honey, cream, sauce, lubricating oil, and viscous liquid products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Single Gear Pump Filling: Offers wide application and fast filling speed.
2. Heating & Stirring Device: Enhances performance for paste filling.
3. Automatic Capping: Streamlines the capping process.
Workflow:
1. Auto bottle feeding

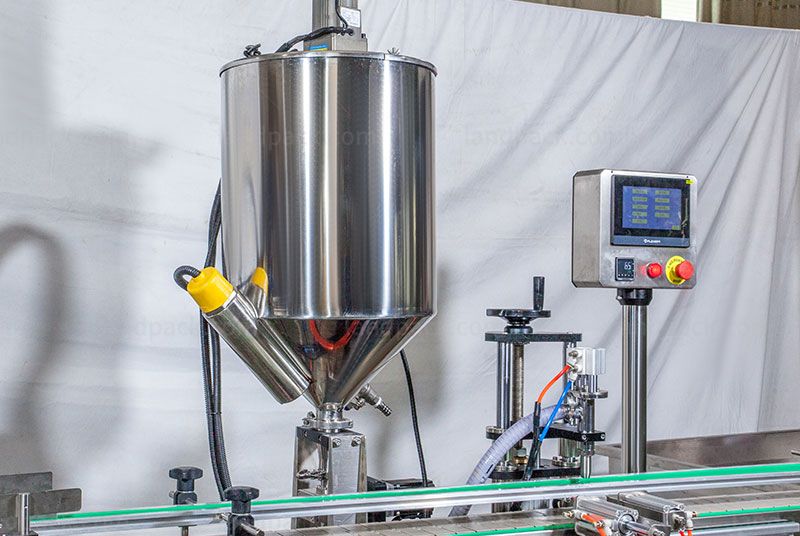

2. Gear pump filling

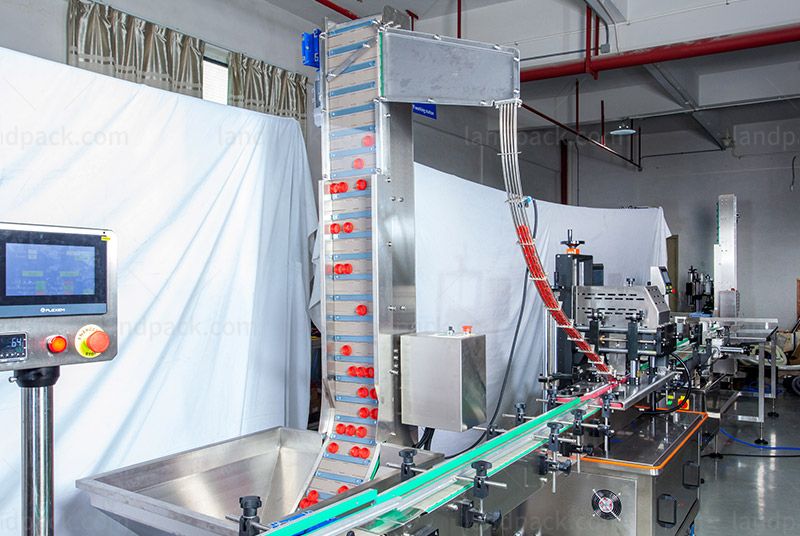

3. Auto cap hanging

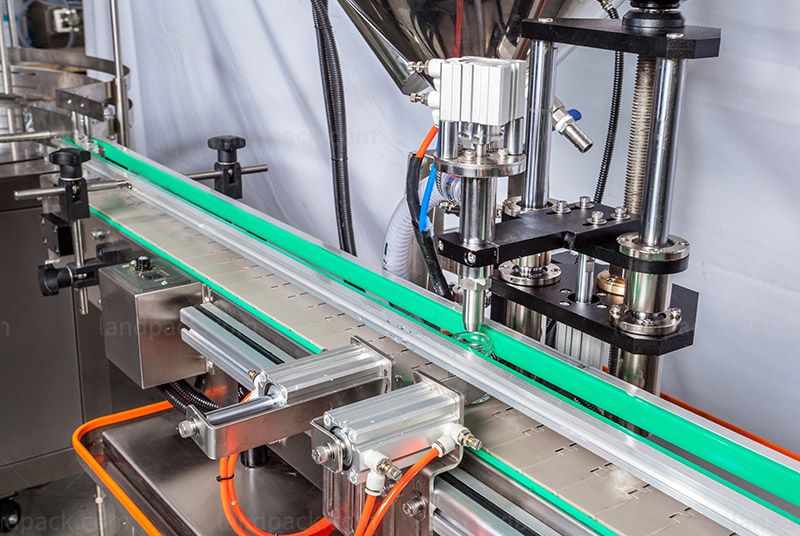

4. Auto capping
5. Auto round bottle labeling
6. Output
| Model | LD-ALF01 |
| Filling Range | 50-1000ml (Customizable) |
| Filling Speed | 20-35 bottles/min |
| Measurement accuracy | ±1% |
| Power | 1 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 400kg |
| Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
