Application:

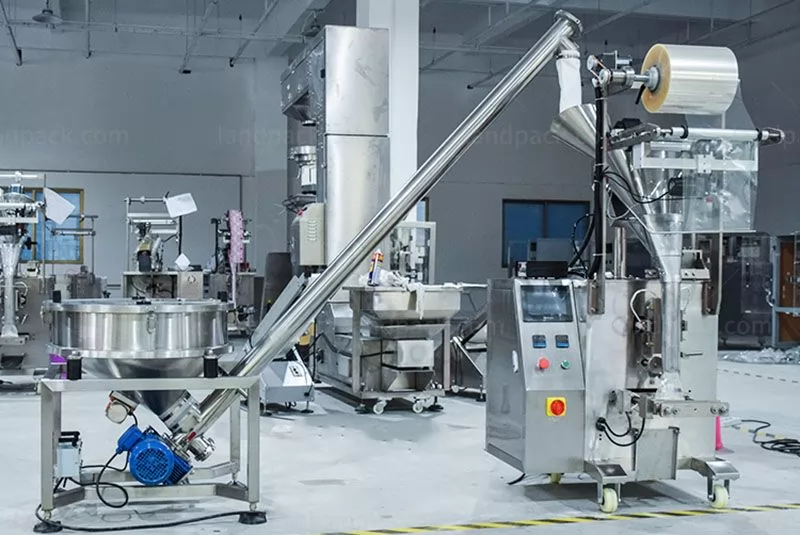

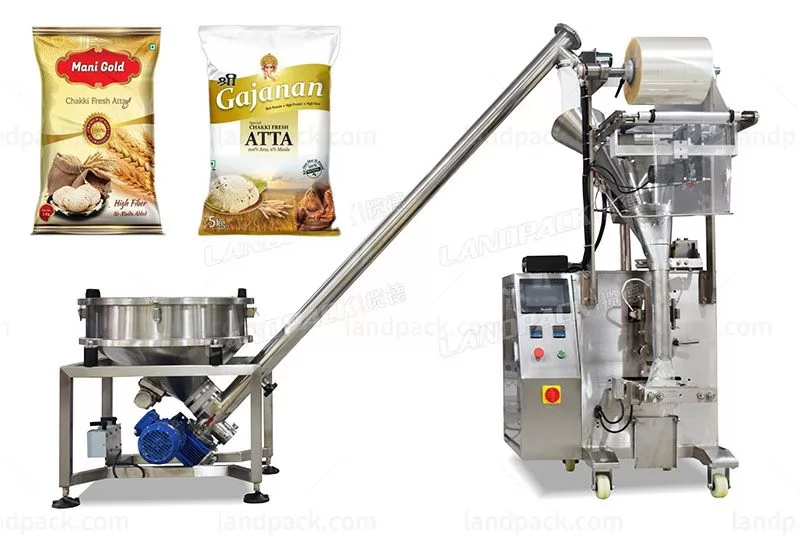

Automatic powder form fill seal machine, Suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
High precision structure for simple and easy operating and repairing.

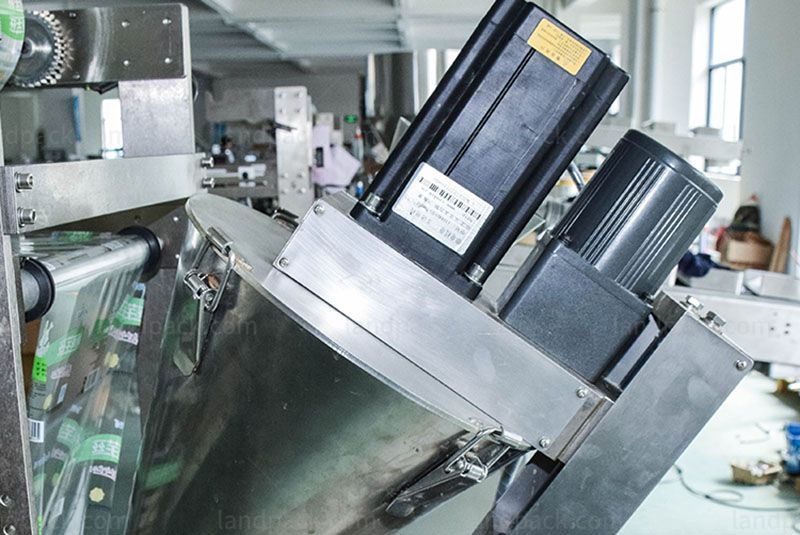

Single-chip CPU,step-motor,easy and accurate to set the bag length.
Own simple circuitry and outstanding function.
Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.
| Model | LD-320D | LD-380D |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
