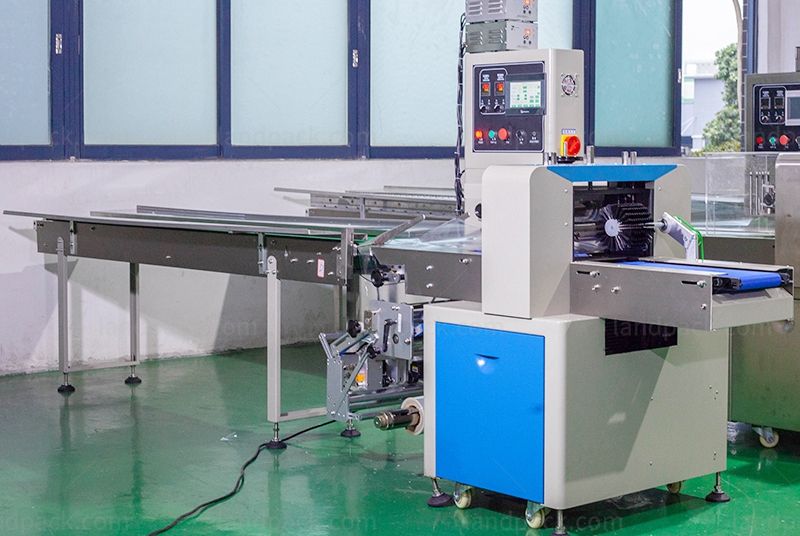

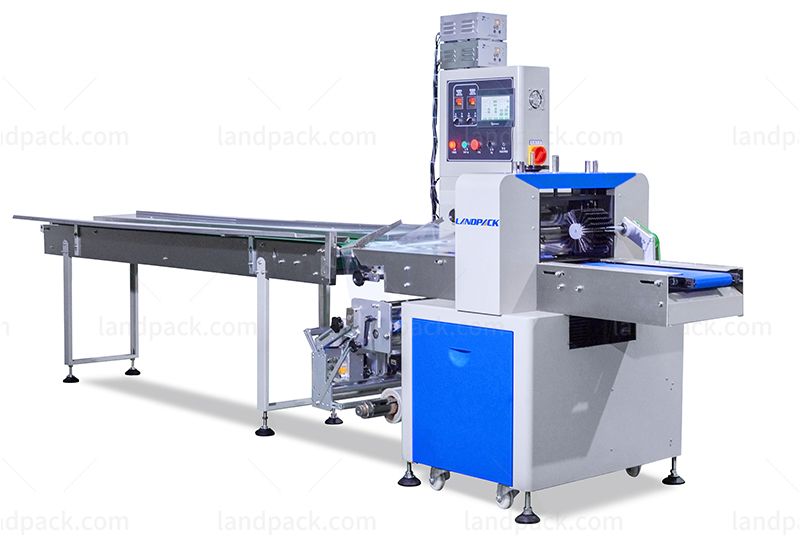

Autoamtic Pillow Packing Machine With Three Servos

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for packaging various kinds of regular objects like biscuits, pies , chocolates,bread, instant ,noodles, moon-cakes,drugs, daily applications, industrial parts,paper boxes,tray etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:pillow packing machine.jpg

Three servo motor control, Bag length can be set and cut in one step,saving time and film.

Interface features easy and quick setting and operation

Self failure diagnosis, clear failure display

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

TypeLP-350XLP-450XLP-600XLP-700X
Film widthMax350mmMax450mmMax600mmMax700mm
Bag length90-220mm or150-330mm150-450mm160-500mm180-600 mm
Bag width 50-160mm50-180mm100-280mm100-330 mm
Product heightMax.65mmMax.80mmMax.110mmMax.110 mm
Film roll diameter Max.320mm
Packaging rate40-230 bags/min40-150Bags/min20-150 bags/min20-130 bags/min
Power220V,50/60Hz,2.6kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw
Machine size(L)3920*(W)670*(H)1320mm(L)4150*(W)820*(H)1450mm(L)4300*(W)920*(H)1460mm(L)4380*(W)980*(L)1480mm
Machine qualityAbout 550kgAbout650kgAbout680kgAbout720kg
Remarksoptional air filling device / optional angle folding
Film materialOPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

After receiving your inquiry,We will send you the quotation as soon as possible.
