Application:

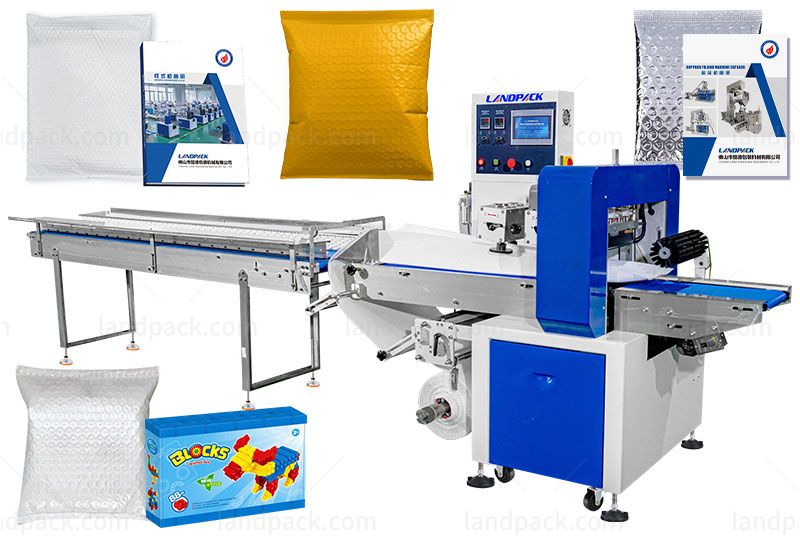

Automatic flow wrapping pillow bag packing machine suitable for books, cleaning sponges, small sachets, soap, cookies, ice lollies, KN95 masks, disposable flat masks, facial masks, wet tissues, napkins, and other dairy products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Full Servo Motor Driver Controlled Intelligent Design cutting with high precision.
2. Adjustable bag former for different product sizes.
3. With the Touch screen parameters setting easily.
4. 20-100bpm faster speed to meet different end customers' requirements.
Workflow:
1. Intelligent control screen
2. Feed the product By manual

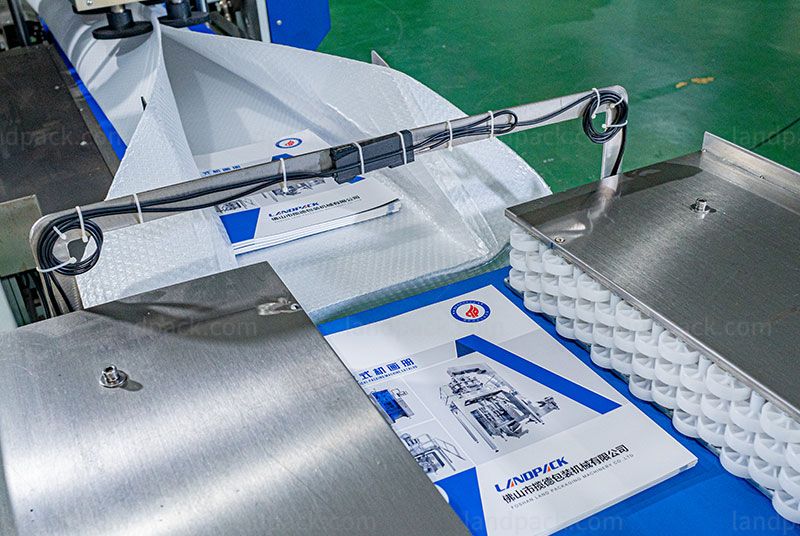

3. Conveyor feeding

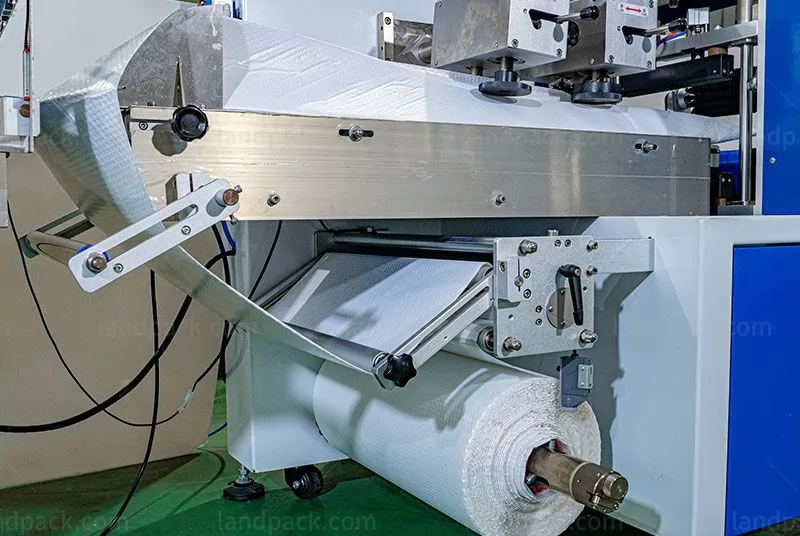

4. Down roll film device
5. Bag forming
6. Backside sealing and horizontal cutting
| Model | LP-600X |
Production capacity | 20-150 bags/min |
Diameter of film roll | Max. 320 mm |
Packaging film width | ≤ 600 mm |
Outer bag size | The longest 500mm widest 280mm product packaging thickness 1-10mm |
Air pressure | 0.5-0.7 Mpa |
Machine noise | Less than 80db(A) decibel |
Rated frequency | 50Hz |
Rated voltage | AC 220V |
Transmission power | 4.2Kw |
Heating power | 2.8 Kw |
Total weight of the machine | 680 Kg |
Machine size | 4300mm*920mm*1460mm (L*W*H) |
After receiving your inquiry,We will send you the quotation as soon as possible.
