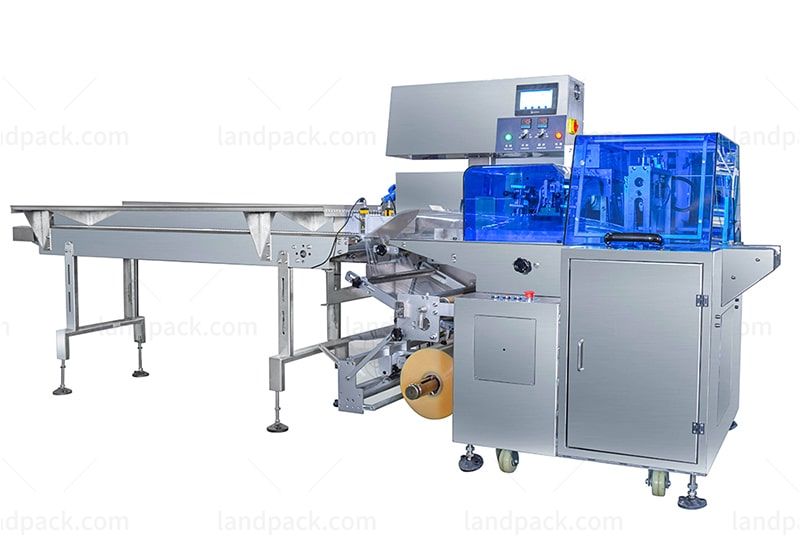

Automatic horizontal packaging machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for packing regular objects such as biscuits, pies, bread, fresh fruits & vegetable, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Horizontal Flow Wrap Machine LP-250X/ LP-350X/ LP-450X/ LP-600X/ LP-700X

For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.

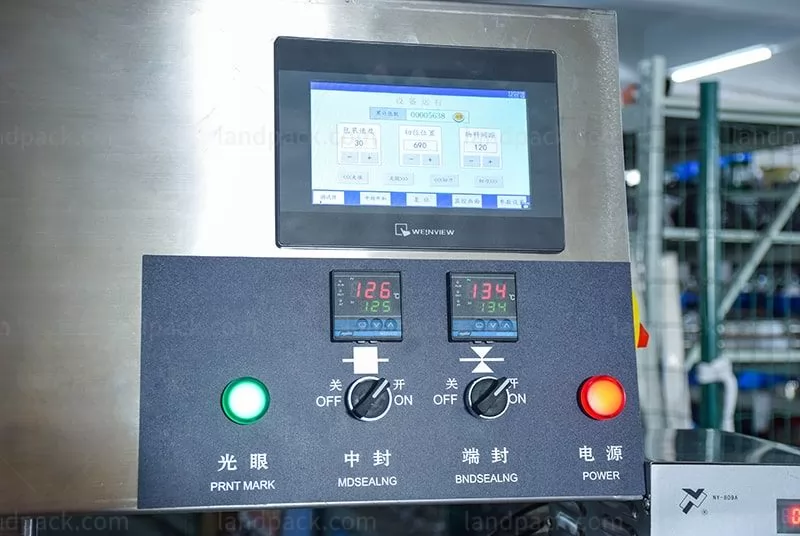

For Easy Operation: Touch screen monitor, independant temperature PID controller.

For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, date printer, etc.

ModelLP-250XLP-350XLP-450XLP-600XLP-700X
Film WidthMax.250mmMax.350mmMax.450mmMax.600mmMax.700mm
Bag Length65-280mm65-330mm150-450mm160-500mm180-600mm
Bag Width30-110mm50-160mm50-180mm100-280mm100-330mm
Product HeightMax.45mmMax.65mmMax.80mmMax.110mmMax.110mm
Packing Speed40-230bag/min40-230bag/min40-150bag/min20-150bag/min20-130bag/min
Power220V 50/60Hz220V 50/60Hz220v 50/60Hz220v 50/60Hz220V 50/60Hz
2.4KW2.8KW2.8KW2.8KW2.8KW
Machine Size3920*670*13204020*720*13204150*820*14504300*920*14604380*980*1480
(L*W*H)mm
Machine WeightAbout 500kgAbout 550kgAbout 650kgAbout 680kgAbout 720kg
Optional Devices:1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor.
4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device
7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine

After receiving your inquiry,We will send you the quotation as soon as possible.
