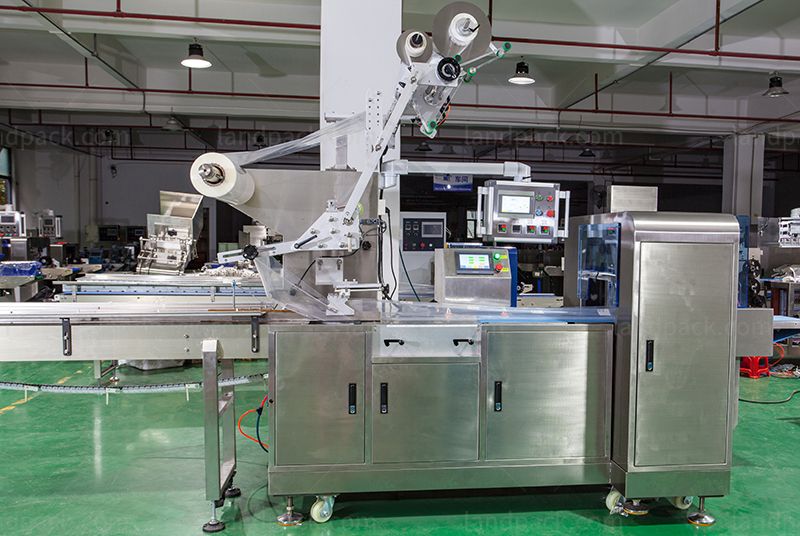

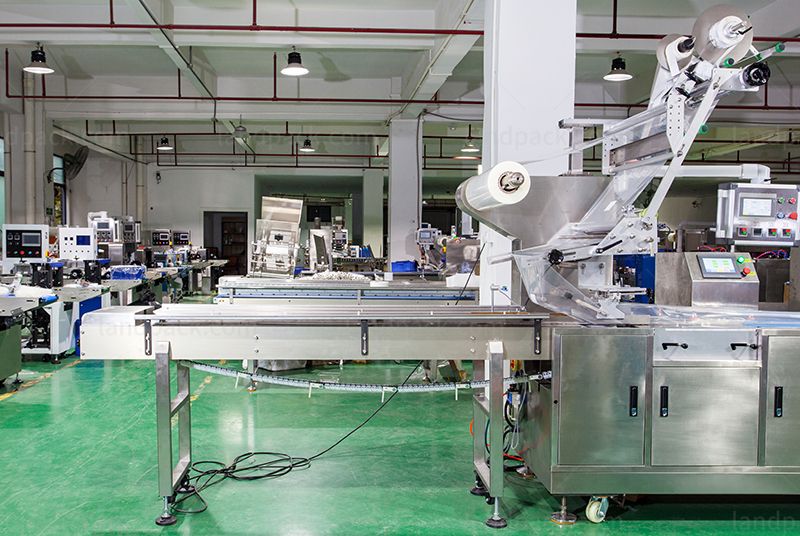

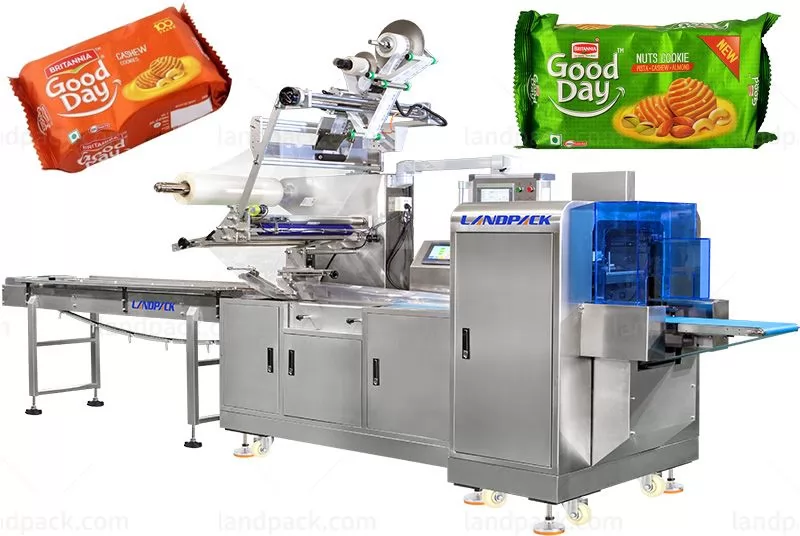

Automatic Reciprocating Pillow Bag Wrapping Flow Pack Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Automatic reciprocating pillow bag wrapping flow pack machine is suitable for packing regular objects such as fruits & vegetable, bread, biscuits, pies, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Reciprocating Pillow Bag Wrapping Flow Pack Machine

1. The reciprocating end sealing mechanism provides a more secure seal than the rotary one, and the sealing die cutter has no loss. The end sealing angle device is more aesthetically pleasing.

2. The height of packaged products is higher than that of rotary products, up to 130mm.

3. Beautiful sealing and wrinkle free, suitable for customers with high packaging requirements

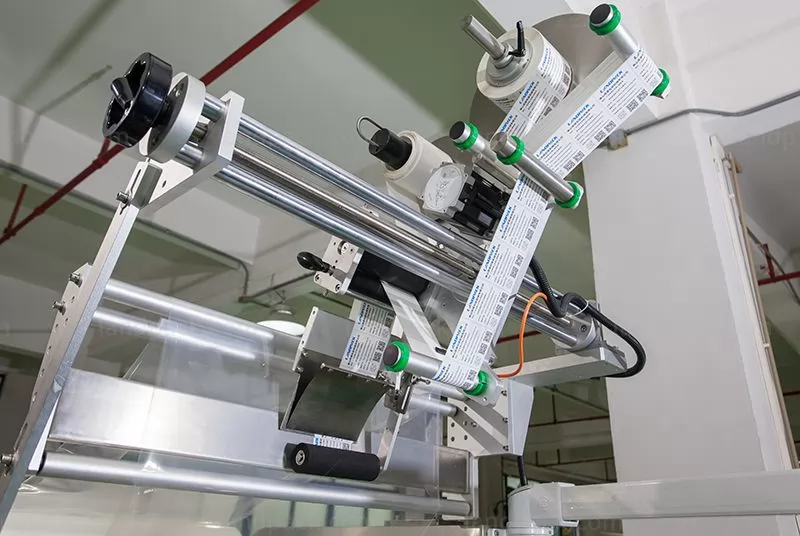

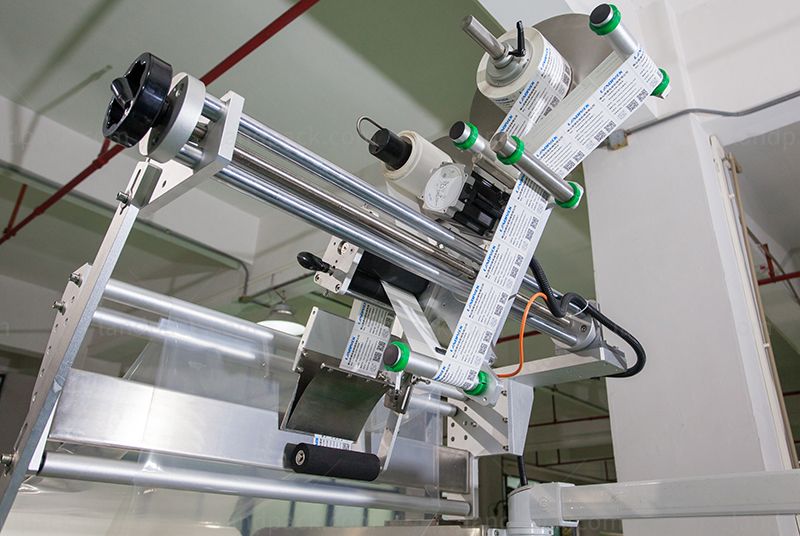

4. It can be equipped with automatic coding, pinhole exhaust device, automatic marking system, automatic punching and other functions.

ModelLP-350LP-400LP-450LP-600LP-700
Film WidthMax.350mmMax.400mmMax.450mmMax.600mmMax.700mm
Bag Length65-330mm150-400mm150-450mm160-500mm180-600mm
Bag Width50-160mm50-180mm50-180mm100-280mm100-330mm
Products HighMax.60mmMax.65mmMax.75mmMax.110mmMax.110mm
Film Roll DiameterMax.320mmMax.320mmMax.320mmMax.320mmMax.320mm
Packing Speed40-180bag/min30-150bag/min30-150bag/min20-150bag/min20-130bag/min
Power220V 50/60Hz220V 50/60Hz220V 50/60Hz220V 50/60Hz220V 50/60Hz
2.6KW2.8KW2.8KW2.8KW2.8KW
Machine Size4030*770*14204030*770*14204030*820*14204030*970*15004030*1070*1500
(L*W*H)mm
Machine WeightAbout 580kgAbout 600kgAbout 650kgAbout 680kgAbout 720kg
Optional Devices1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,
4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device,
7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine

After receiving your inquiry,We will send you the quotation as soon as possible.
