Application:

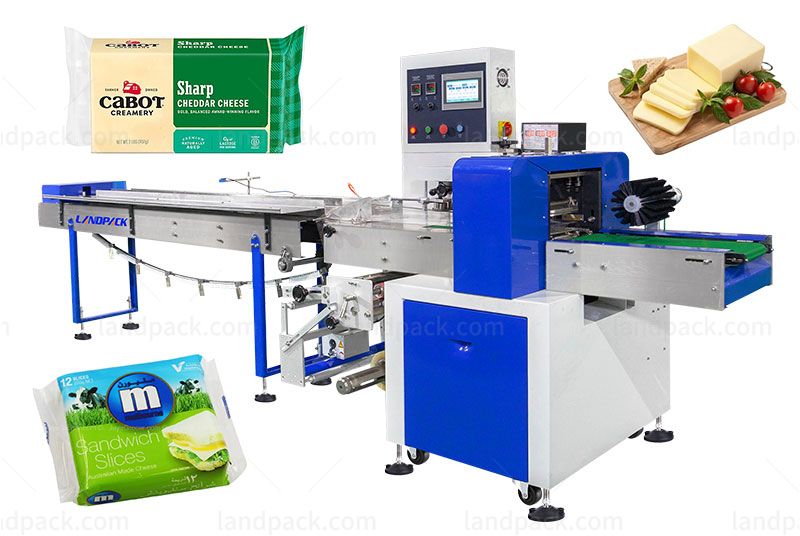

Ideal for packaging a wide range of regular items, including sliced cheese, biscuits, pies, chocolates, bread, instant noodles, mooncakes, pharmaceuticals, daily essentials, industrial parts, paper boxes, trays, and more. Designed for precision and efficiency in diverse industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

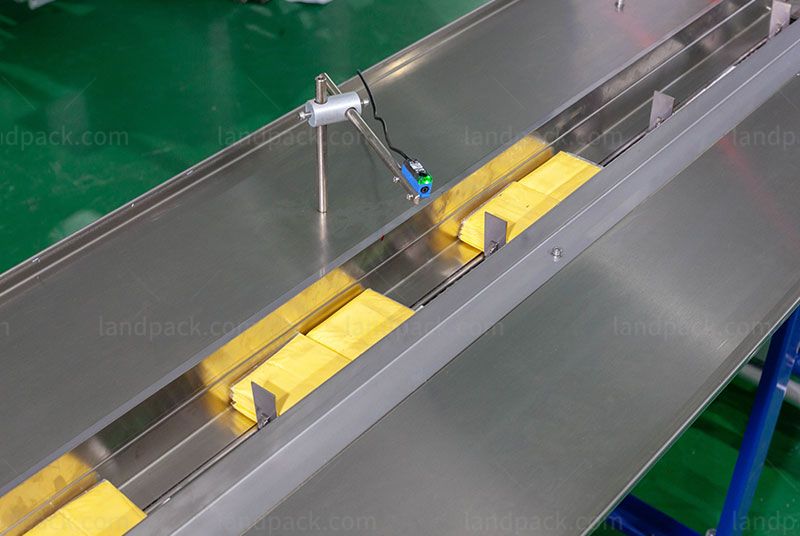

1. Dual/Triple Row Continuous Packaging: Features a bottom paper-feeding belt combined with a pusher conveyor design, ensuring smooth, gap-free material transport for stable and efficient packaging processes.

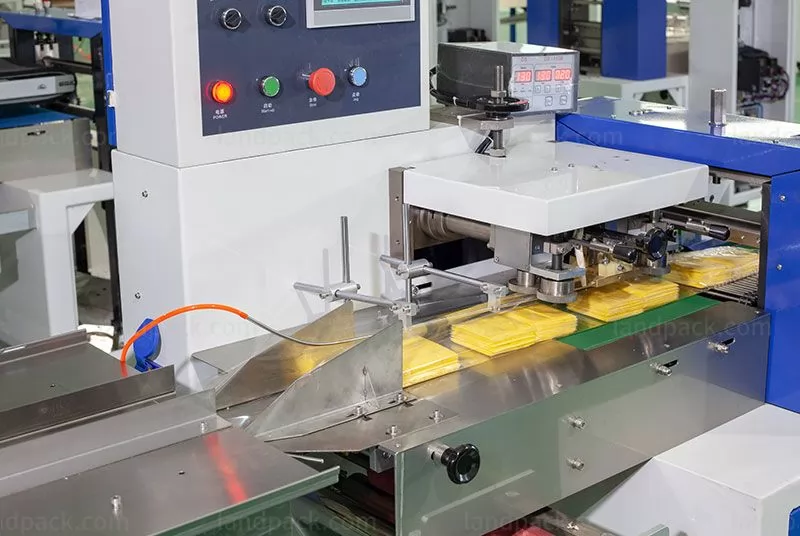

2. End Sealing with Drag Chain for Material Protection: Prevents material pinching during the sealing process, ensuring materials pass smoothly through the sealing area for a more precise and flawless horizontal seal.
3. Flexible Nitrogen Filling Device: Allows for on-demand activation or deactivation based on material characteristics and packaging requirements.
Type | LP-350X | LP-450X | LP-600X | LP-700X |
Film width | Max.350mm | Max.450mm | Max.600mm | Max.700mm |
Bag length | 90-220mm or 150-330mm | 150-450mm | 160-500mm | 180-600 mm |
Bag width | 50-160mm | 50-180mm | 100-280mm | 100-330 mm |
Product height | Max.65mm | Max.80mm | Max.110mm | Max.110 mm |
Film roll diameter | Max.320mm | |||
Packaging rate | 40-230 bags/min | 40-150Bags/min | 20-150 bags/min | 20-130 bags/min |
Power | 220V, 50/60Hz, 2.6kw | 220V, 50/60Hz, 2.8kw | 220V, 50/60Hz, 2.8kw | 220V, 50/60Hz, 2.8kw |
Machine size | (L)3920*(W)670*(H)1320mm | (L)4150*(W)820*(H)1450mm | (L)4300*(W)920*(H)1460mm | (L)4380*(W)980*(L)1480mm |
Machine quality | About 550kg | About 650kg | About 680kg | About 720kg |
Remarks | Optional air filling device / optional angle folding | |||
Film material | OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film |
After receiving your inquiry,We will send you the quotation as soon as possible.
