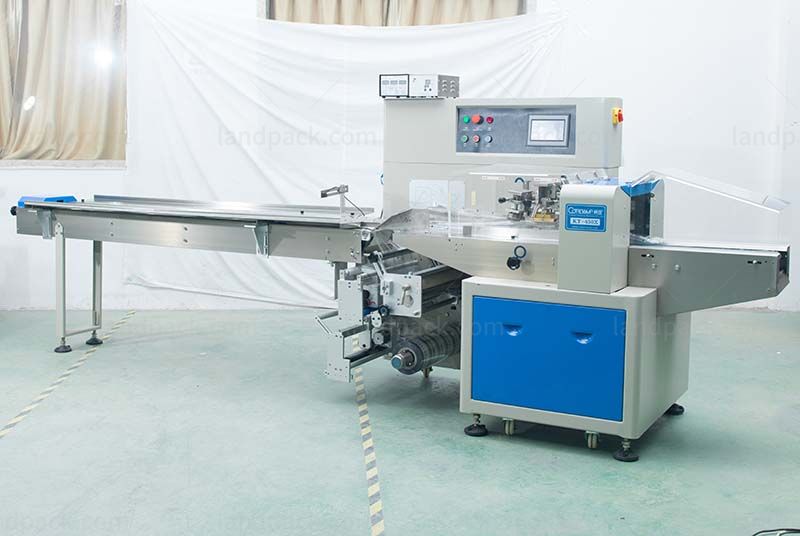

Vegtable and Friuts Horizontal Flow Wrap Pillow Machine (HFFS)

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for packaging soft, strip and unorganized objects into pillow bag or gusseted bag. like towels, tissues, noodles, egg rolls, sausages, ice-lollies, soft candies, fresh fruits, fresh vegetable without tray etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Horizontal Flow Wrap Machine LP-250X/ LP-350X/ LP-450X/ LP-600X/ LP-700X

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

Interface features are easy and quick setting and operating.

Self diagnosis failure function, clear failure display.

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packing different materials.

Positioned stop function,without sticking knife or wasting film.

Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical urgrade.

ModelLP-250XLP-350XLP-450XLP-600XLP-700X
Film WidthMax.250mmMax.350mmMax.450mmMax.600mmMax.700mm
Bag Length65-280mm65-330mm150-450mm160-500mm180-600mm
Bag Width30-110mm50-160mm50-180mm100-280mm100-330mm
Product HeightMax.45mmMax.65mmMax.80mmMax.110mmMax.110mm
Packing Speed40-230bag/min40-230bag/min40-150bag/min20-150bag/min20-130bag/min
Power220V 50/60Hz220V 50/60Hz220v 50/60Hz220v 50/60Hz220V 50/60Hz
2.4KW2.8KW2.8KW2.8KW2.8KW
Machine Size3920*670*13204020*720*13204150*820*14504300*920*14604380*980*1480
(L*W*H)mm
Machine WeightAbout 500kgAbout 550kgAbout 650kgAbout 680kgAbout 720kg
Optional Devices:1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor.
4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device
7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine
