Automatic Frozen Food Sliced Meat Mini Doypack Machine With Metal Detector

  • Application
  • Description
  • Parameter
  • Video

Application:
The frozen food packaging machine is ideal for efficiently packaging a variety of frozen foods, including sliced meat, dumplings, meatballs, shrimp, shellfish, chicken wings, beef, fries, tofu puffs, and more. It ensures precise weighing, sealing, and preservation to maintain product freshness and quality.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:frozen food packaging equipment

1. Space-saving structure, ideal for limited production areas.

2. Perfect for sticky or hard-to-feed products, ensuring smooth and accurate weighing.

3. Ensures food safety compliance by detecting and eliminating metal contaminants.

4. Equipped with an intuitive touch screen for easy parameter adjustments and monitoring.

5. Provides firm sealing and precise cutting for high-quality packaging results.

6. Made of stainless steel, ensuring long-term reliability and easy cleaning for food-grade safety.

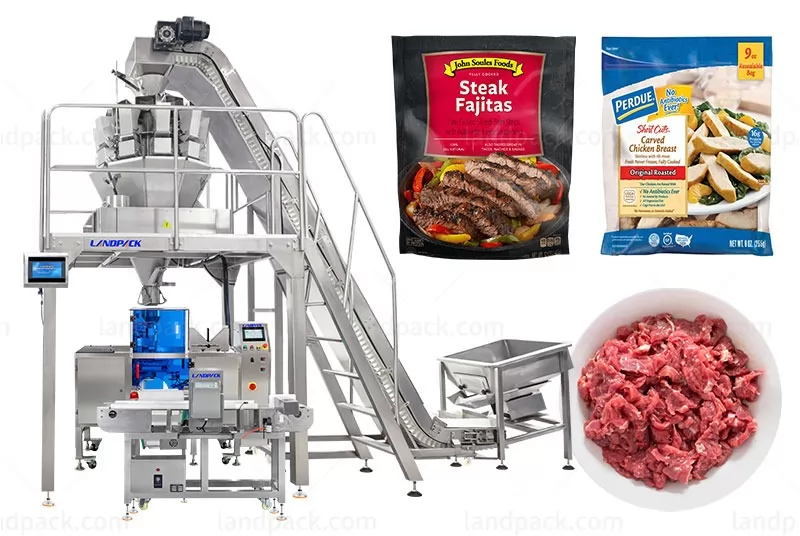

Work Flow:

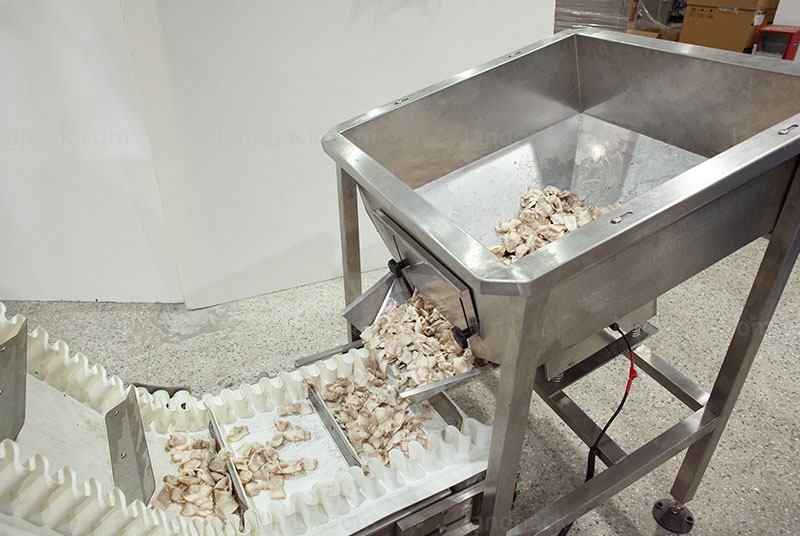

1. Slope elevator delivers frozen meat
2. Screw Weigher Measure Weight
3. Take the bags
4. Ribbon code printing
5. Open zipper
6. Open the bags

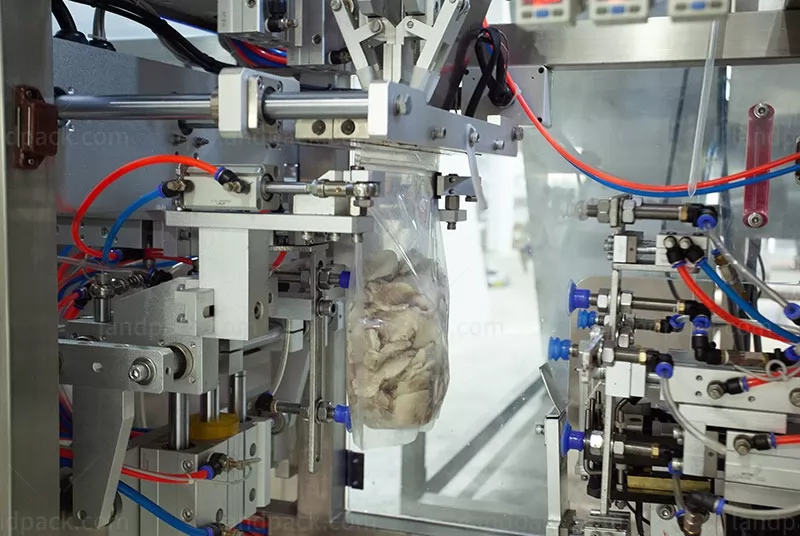

7. Filling
8. Sealing
9. Finished Product Conveyor
10. Metal detector detects metal

Model

LDB-200

LDB-300

LDB-430

Bag Material

Multilayer Composite Premade Bag (e.g.: PET/PE)

Premade Bag Type

3 Side Seal Bag, Stand-up Bag

Upgradable Bag Type

Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)

Bag Size

70mm≤W<150mm, 70mm≤L≤150mm

80mm≤W≤300mm, 100mm≤L≤300mm

80mm≤W≤300mm, 100mm≤L≤430mm

Speed

5-60 bags/min

5-15 bags/min

Sealing Type

Straight grain, the pitch is 1mm (Optional reticulate)

Sealing Width

10mm (5-20mm can be customized)

Voltage

220V, Single-phase, 50/60HZ, 1.2KW

Air Pressure

0.65Mpa

Air Consumption

0.3m³/min (Standard machine, no additional function)

Body Dimension

1770*600*1230mm

1770*600*1230mm

1770*600*1360mm

Machine Weight

300kgs

350kgs

450kgs

After receiving your inquiry,We will send you the quotation as soon as possible.
