Application:

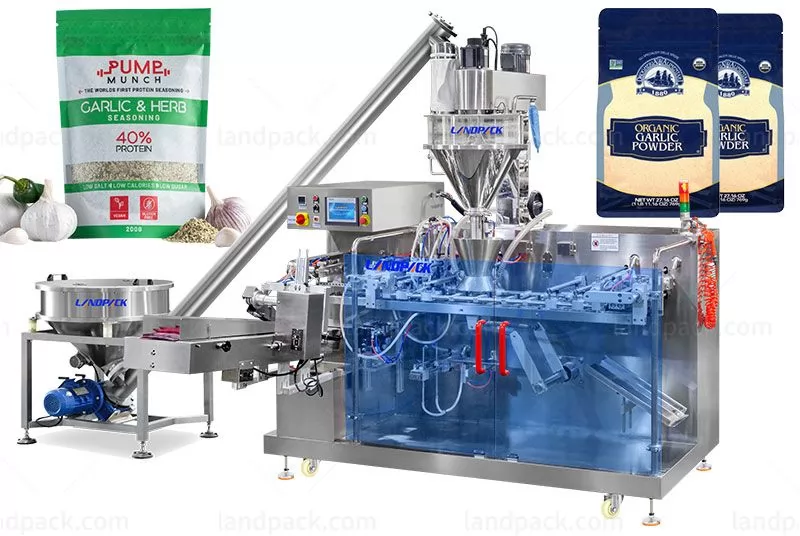

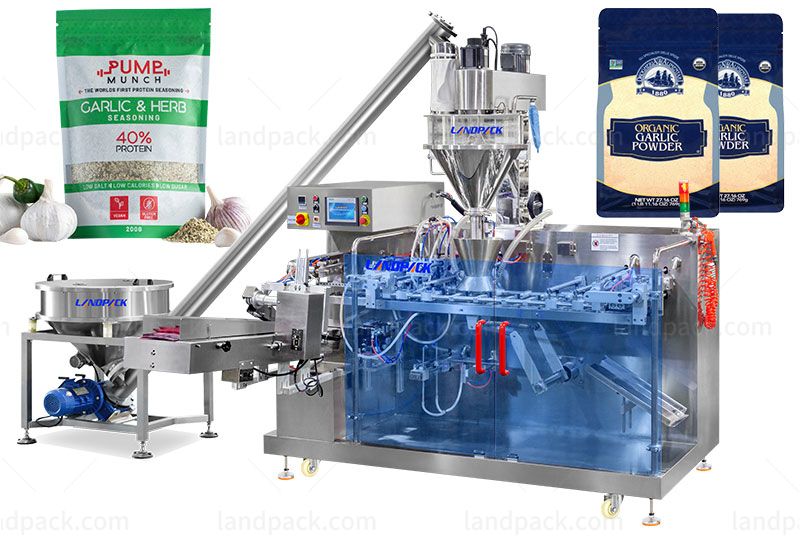

Automatic Horizontal Premade Zipper Bag Gusset Pouch Doypack Garlic Powder Packaging Machine, it is suitable for powder: garlic powder, tea powder, bakery powder, spices, coffee powder, medical powder, etc.
Sutable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1.This is a fully-automatic packing machine with Multi-function which can be integrated with various filling systems.
2.High capacity auger feeding machine, save labr cost
3.Servo motor to control and high speed to work.
4.Automatic alarming function and stop when the inadequate air pressure.
5. High precision horizontal bag feeding device, speed adjustable)
6.Famous brand components, ensure the quality and durability of machine.
7. Open the zipper efficiently and accurately;
8. Heavy weight prowder,beautiful packaging, accurate measurement
9. Vacuum cleaning to keep the bag mouth clean;
10.Smooth performance and low noise, perfect package appearance with enough film storage, Sensible safety device and no pollution during production to get Friendly working environment.
Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
Machine weight | 800KG | 800KG | 900KG | 1000KG |
Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
Collocation | Screw metering,screw elevator |
After receiving your inquiry,We will send you the quotation as soon as possible.
