Application:
Suitable to use in packing high accuracy and easily fragile material. Such as toys, paintballs, marbles, nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, apple slices, frozen dumplings, coffee beans, pasta, cotton candy, french fries, rice, small hardware, etc.
Suitable Pouch:
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The system employs intelligent weighing technology to ensure precise measurements during the packaging process.
2. It operates at high speeds while maintaining stability, resulting in efficient production.
3. The use of #304 stainless steel for food filling components ensures hygiene and durability.
4. Equipped with a Siemens PLC and a touch screen, the system is easy to operate and configure.
5. While it's well-suited for the food industry, it also finds applications in chemical, commodity, and toy industries.
6. The 110-degree customized widened automatic weigher enhances product flow, making it smoother and more shatter-resistant.
7. It accommodates different bag types and sizes, with a maximum size of 260 mm*350 mm.
8. All material contact parts feature a shockproof silicon plate, safeguarding fragile products.

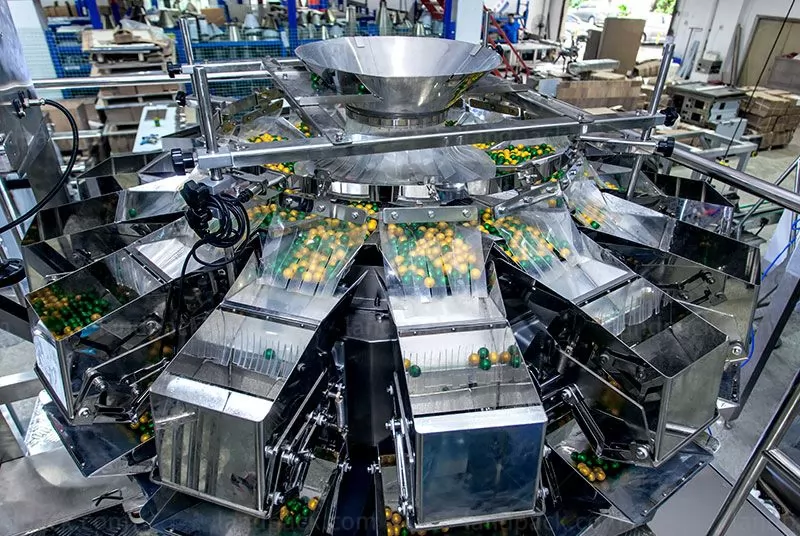

9. The system boasts a 14-head, 2.5-liter multi-head weigher, ensuring high accuracy and easy attainment of target weights.
10. A retainer plate and conveyor chain support heavier and delicate products during the packaging process.
11. A desiccant dispenser keeps the interior dry to maintain product freshness.
Workflow:
1. Giving the bag
2. Open the bag
3. 14head 2.5L weigher for weighing the product with an anti-damage device protecting the raw material

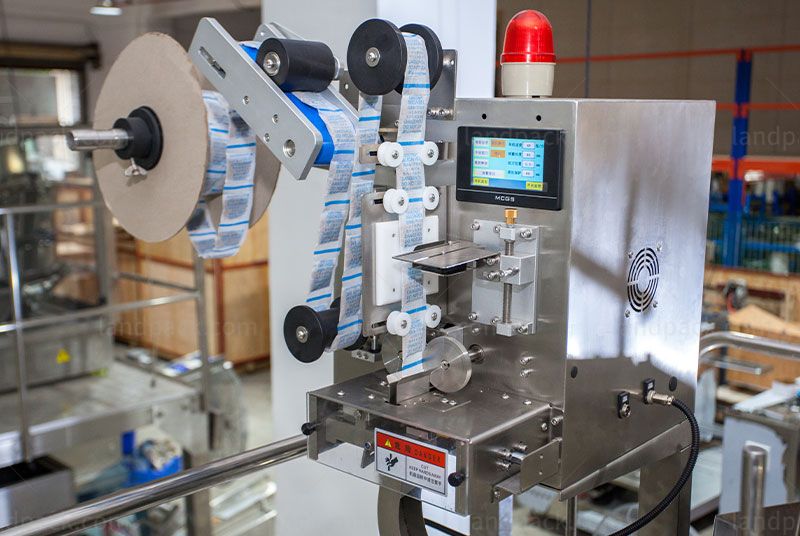

4. Desicant dispenser
5. Collect hopper for raw material faster the speed
6. Retainer Plate to protect the raw material and reduce the buffer
7. Conveyor Chain for support the over 1kg heavier product
8. Tidy up the bag
9. Sealing the bag
10. Output for the finished bag
Model | LDSP-210A |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
size | W: 100-210 mm |
Filling range | 20-1000g |
Packing speed | 20-50 bags/min (speed is determined by the product filling quantity) |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Weight | 900 KG |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
