Application:
Suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambles:

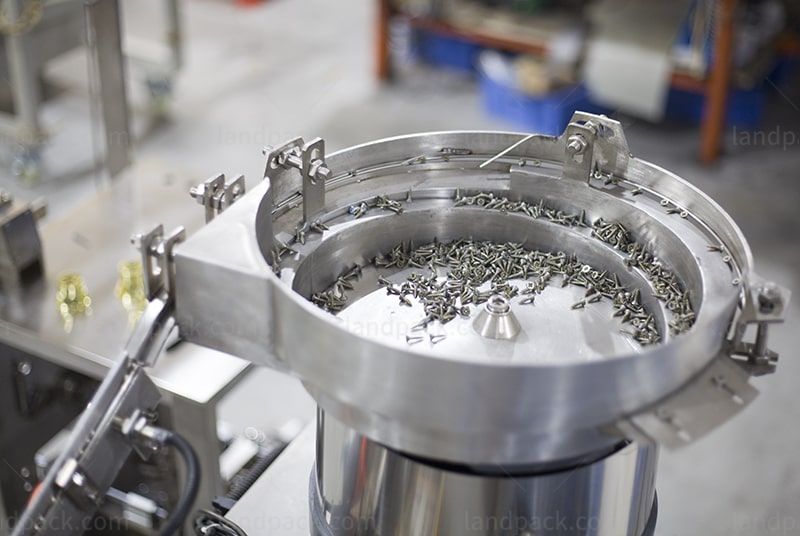

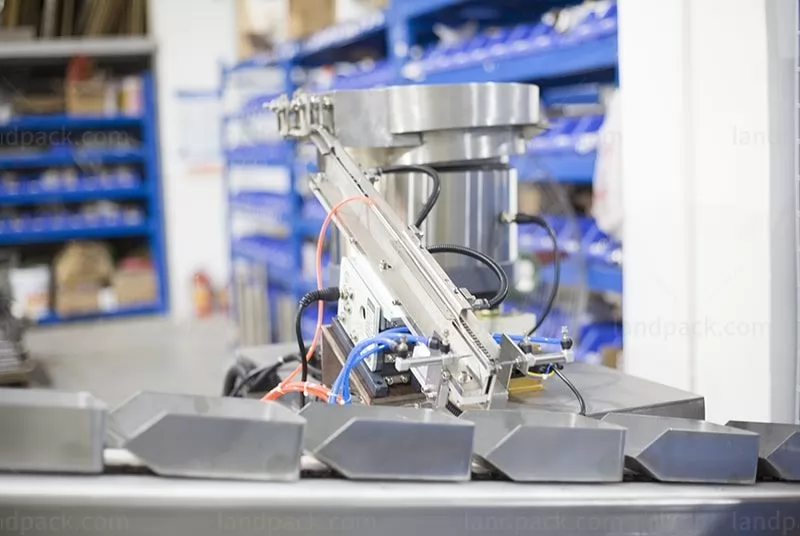

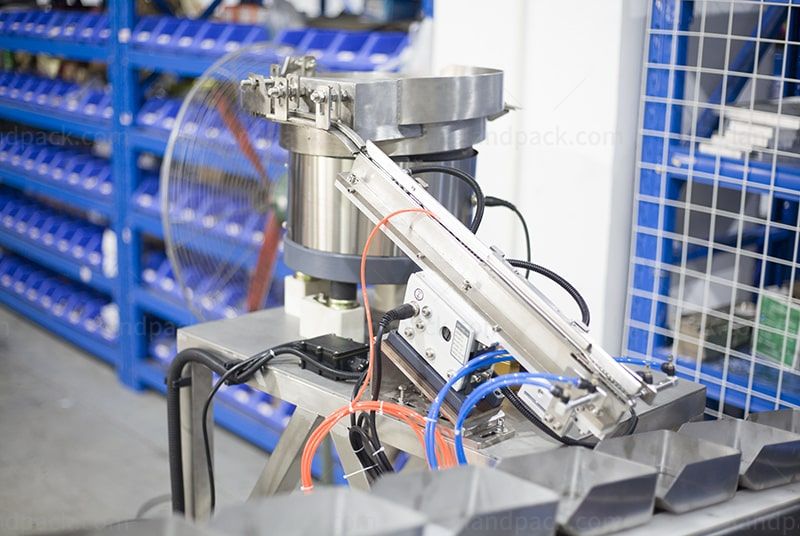

Custom-tailored vibration plates for screw sample, liner vibration arrange device and high precision counting device.
Vibration feeding screw to count, counting accurate.
Step motor control combines with coding tracking system, cutting right.
Single-chip microcomputer control system, self-diagnosis, automatic stop when fault, automatic alarm.
Auto display package quantity, easy operate and safety.

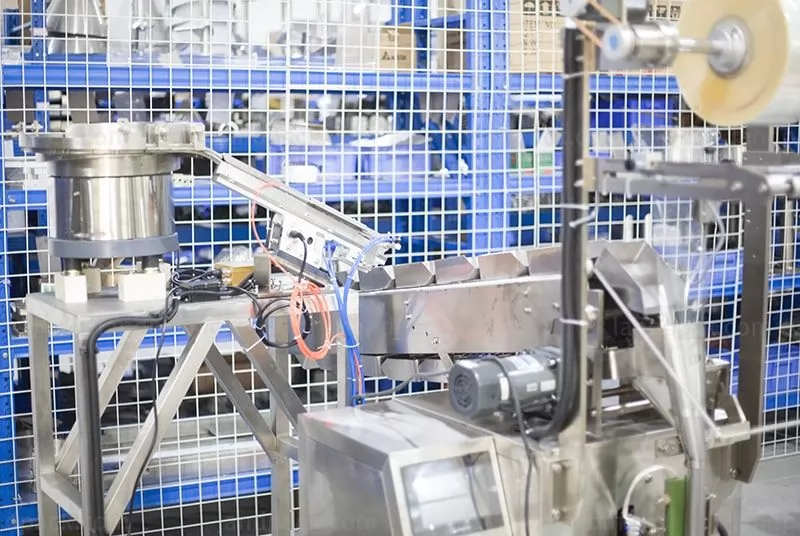

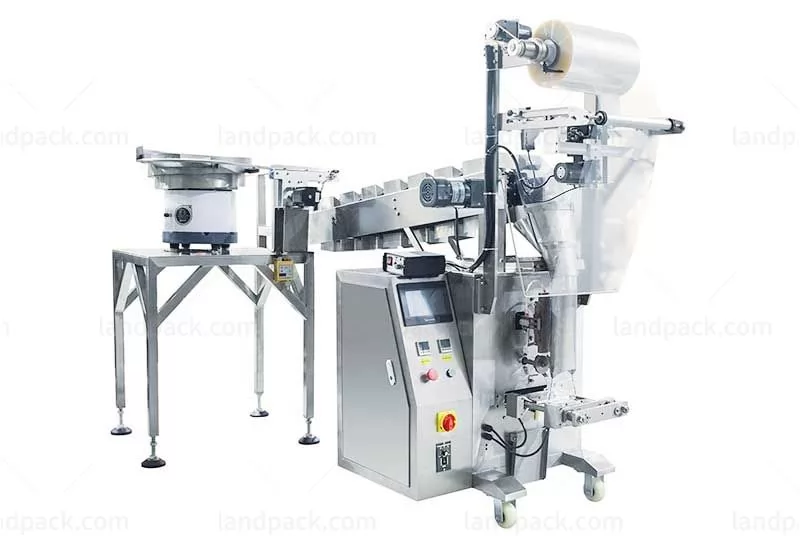

Machine can automatic finish counting, making bag, filling, sealing and cutting.
Photoelectric tracking system, automatic track the mark on the film.
| Model | LD-100 | LD-200 | LD-600 |
| Vibration Disk Number | 1 | 2 | 6 |
| Packing Speed | 30-70Bags/min | 30-70Bags/min | 30-70Bags/min |
| Measure Range | 1-X Pieces(Depend on Product) | ||
| Bag Sizes | (L)20-120mm; (W)50-85mm | (L)20-120mm; (W)50-85mm | (L)20-120mm;(W)50-85mm |
| Total Power | 1.2KW | 2.2KW | 2.2KW |
| Net Weight | 150KG | 250KG | 450KG |
| Bag Type | Back-Sealing Bag; 3 Sides Sealing Bag | ||
| Packing Material | Composite film, aluminum foil or heat shrink material | ||
| Dimensions | 1270*945*1616mm(L*W*H) | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
