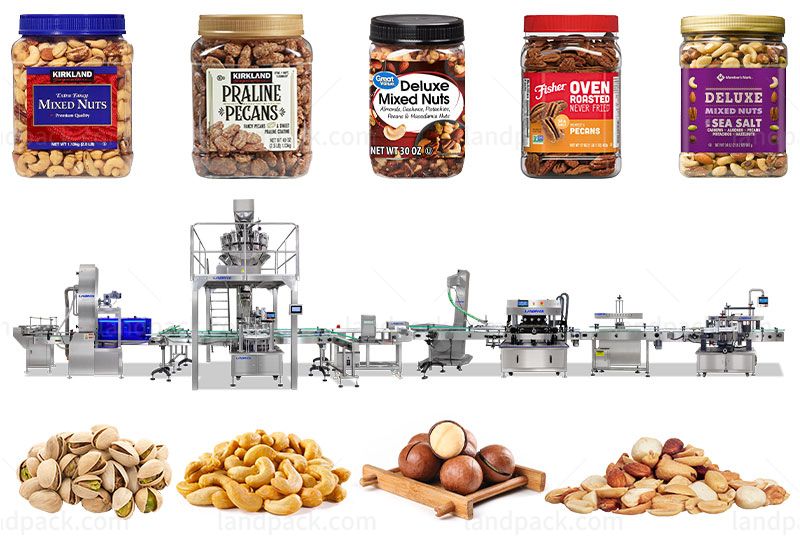

Automatic Granule Bottles Weighing Filling Machine Line With UV Sterilization

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for automatic bottling filling of various granular products, such as nuts, beans, peanuts, candy, seeds, potato chips, popcorn, almond, dry fruit, vegetable salad, frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:automatic bottle filling machine

1. The whole line of round bottles and square bottles are shared, with strong compatibility.

2. The conveying line enters the bottle to save labor.

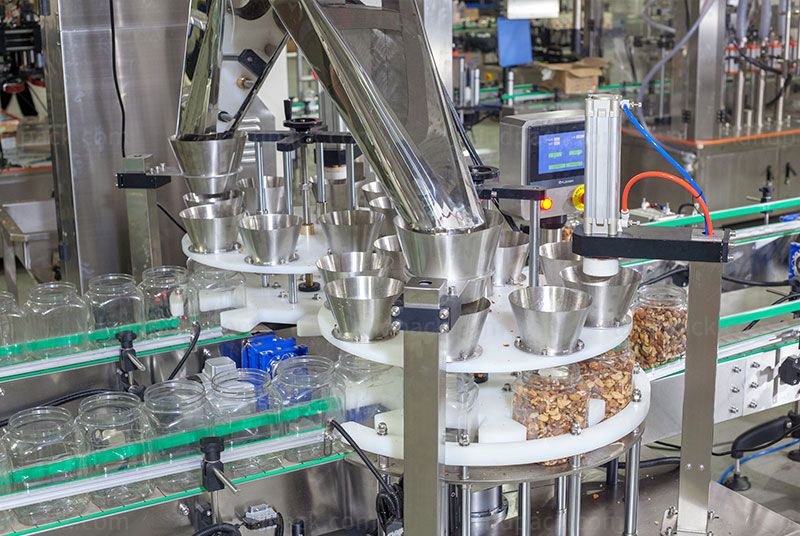

3. Multi-head combined scale metering turntable filling, high combination precision, and turntable lifting speed.

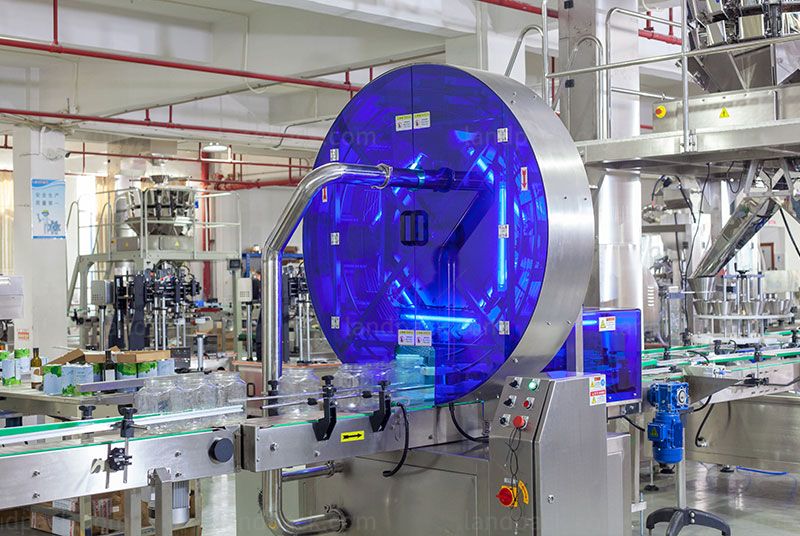

4. Equipped with a UV sterilizer, which can sterilize the inside of the bottle and recover dust before filling, so as to achieve the cleaning effect in the tank.

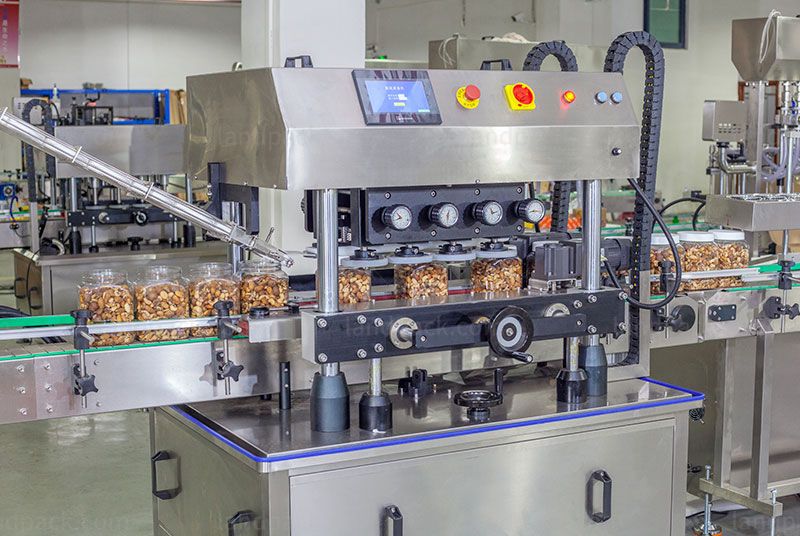

5. Equipped with nitrogen filling and aluminum foil sealing, product insurance, and extended shelf life.

Model
LD-AF01
Filling Range
10-2000g (Customizable)
Filling Speed
120 pcs/min
Measurement accuracy
±0.3-1.5%
Power
1 KW
Working power supply
220V, 50Hz
Working pressure
0.6-0.8MPa
Weight
400kg
Size
L4002*W2694*H2250 (mm)

After receiving your inquiry,We will send you the quotation as soon as possible.
