Application:

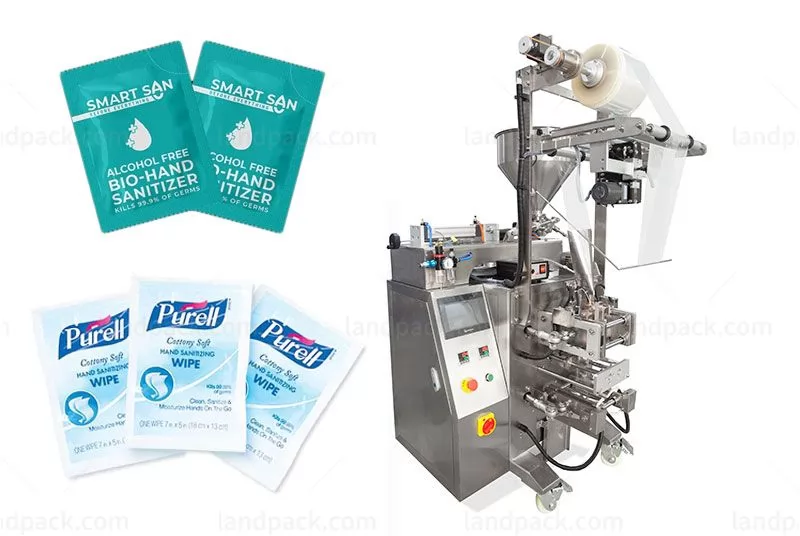

Suitable for 4 side sealing sachet of conventional liquids such as hand sanitizer, disinfectant, shampoo, sauces, seasoning, ketchup, honey, vitamin water, juice drinks, oil, water, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag/sachet/3 side seal bag/4 side seal bag weight
3. Bag/sachet/3 side seal bag/4 side seal bag dimension
4. Bag/sachet/3 side seal bag/4 side seal bag material
Packing Exambers:
1. Multipurpose packaging, suitable for various packaging of different products.
2. Bag type can be customized to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.
3. Multilingual screen display, easy operation.
4. PLC touch screen, step motor control, easy and accurate to set the bag length.

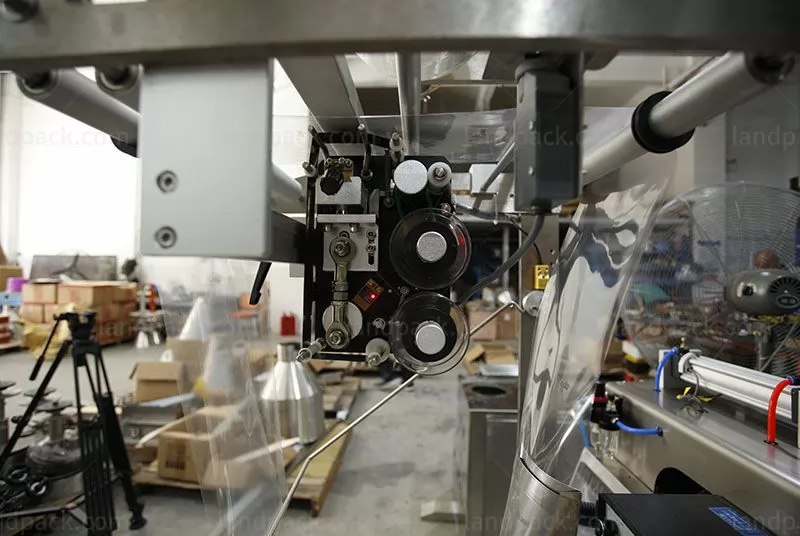

5. The machine completes the whole procedure of filling, bagging, and date printing, charging (exhausting) automatically.
6. Famous brand components, ensure the quality and durability of the machine.
Model | LD-320L | LD-380L |
Film width | 120-320mm | 180-380mm |
Bag length | 50-200mm | 60-280mm |
Bag width | 50-150mm | 60-180mm |
Diameter of the film roll | Max.300mm | Max.320mm |
Packing speed | 35-70 bags/min | |
Measuring range | 50-500ml | 50-750ml |
Film thickness | 0.04-0.07mm | |
Power | 220V, 50/60Hz, 2.2KW | 220V, 50/60Hz, 2.5KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
Machine weight | About 300kg | About 450kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
