Application:
Suitable for packing all kinds of liquid, fluid, and paste material, such as hand sanitizer, alcohol, shampoo, wine, mayonnaise, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, ketchup, daily necessities, medicine, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling range
3. Bottle dimension
4. Bottle material
Packaging Exambers:
1. Machine has a nice appearance and reasonable structure, it's currently the most advanced new design hand sanitizer filling machine, the machine can be customized with 4/6/8/12/etc filling heads according to the customer's production capacity.

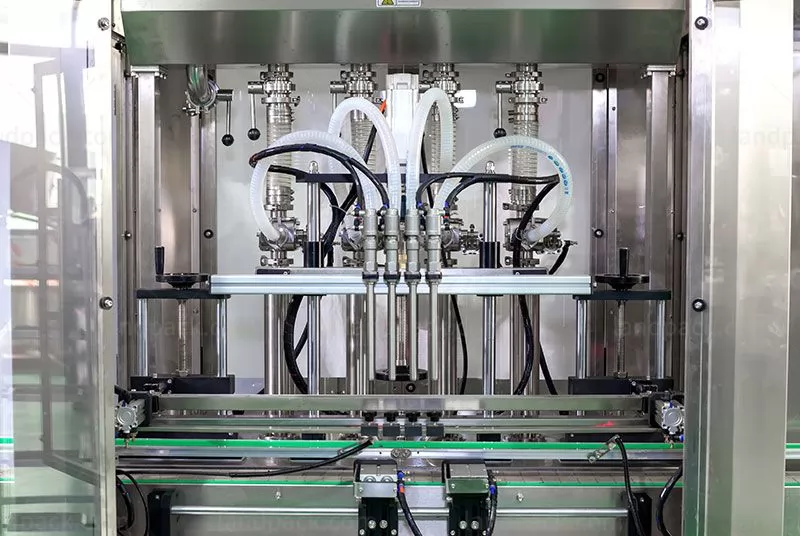

2. Adopts positive displacement plunger pump for filling (when the filling volume difference is large, the corresponding pump body needs to be replaced), can make overall adjustment of all the pumps, can also make a slight adjustment of a single pump, quick and convenient.

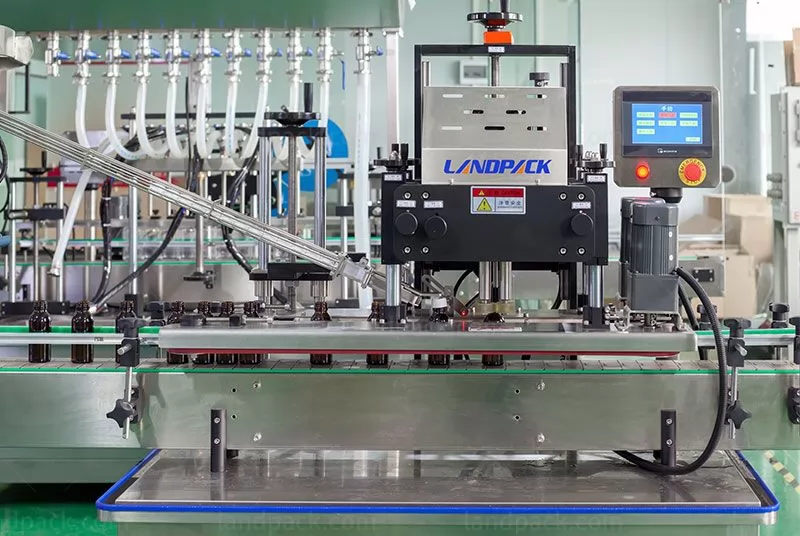

3. PLC control system, color touch screen display, and filling volume can be adjusted directly on the touch screen, easy to operate.
4. The machine comes with a heating and stirring system, so which makes the product more uniform, better mobility, and easy to fill
5. Has the function of no bottle no filling, frequency control, and automatic counting.
6. Machine shell is made of 304 stainless steel, and meets GMP standards.
Model Name | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Nozzle | 6 | 8 | 10 |
Production Speed | 20-35Bpm | 30-40Bpm | 40-50Bpm |
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% | ||
Filling Range | 50-5000ml | ||
Power Supply (without heating) | 1Kw | 2kw | 2.5kw |
Power Supply | 220V/380v 50hz Three phase | ||
Air Pressure | 0.6-0.8Mpa | ||
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. | ||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | ||
Dimension (mm) | 4000*1320*2090 | 4000*1320*2090 | 4000*1320*2090 |
Weight | 650kg | 800kg | 800kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
