Application:
This machine is suitable for various kinds of food, Medicine, and chemical liquid products like Mouthwash, Ketchup, flavoring, sauces, Pasty, Shampoo, cream, body wash liquid, and so on.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag/sachet/3 side seal bag/4 side seal bag weight
3. Bag/sachet/3 side seal bag/4 side seal bag dimension
4. Bag/sachet/3 side seal bag/4 side seal bag material
Packaging Exambers:

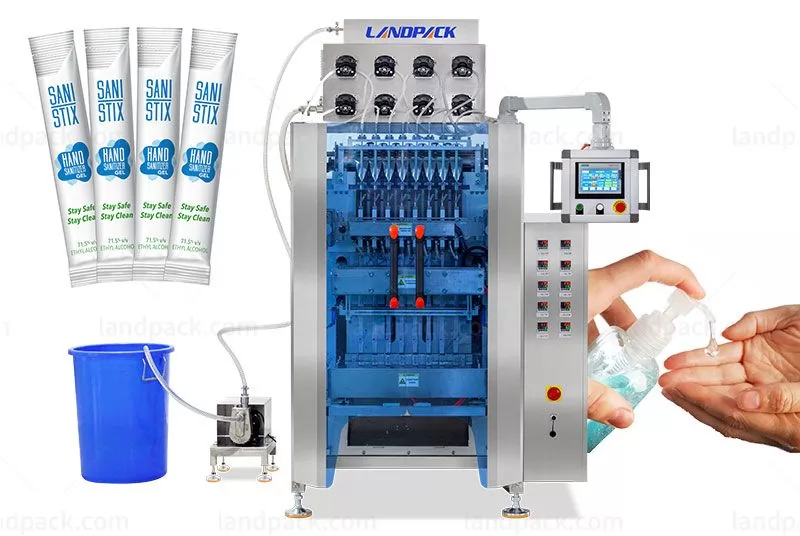

PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

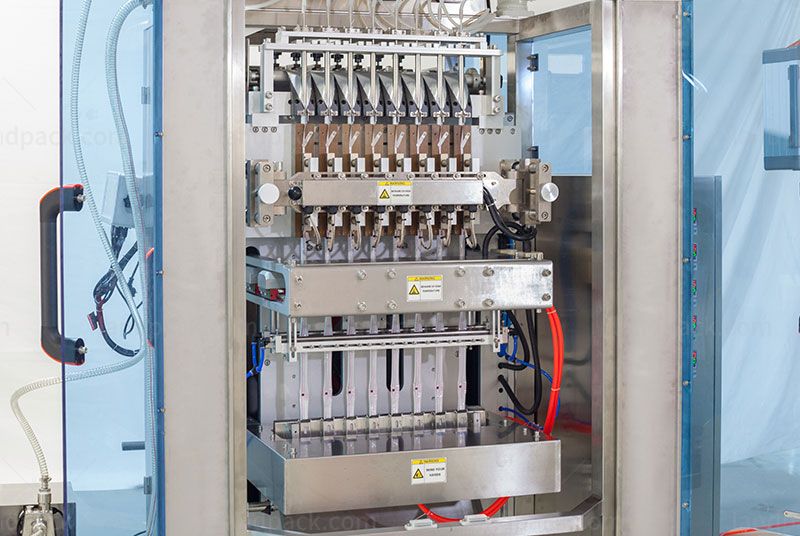

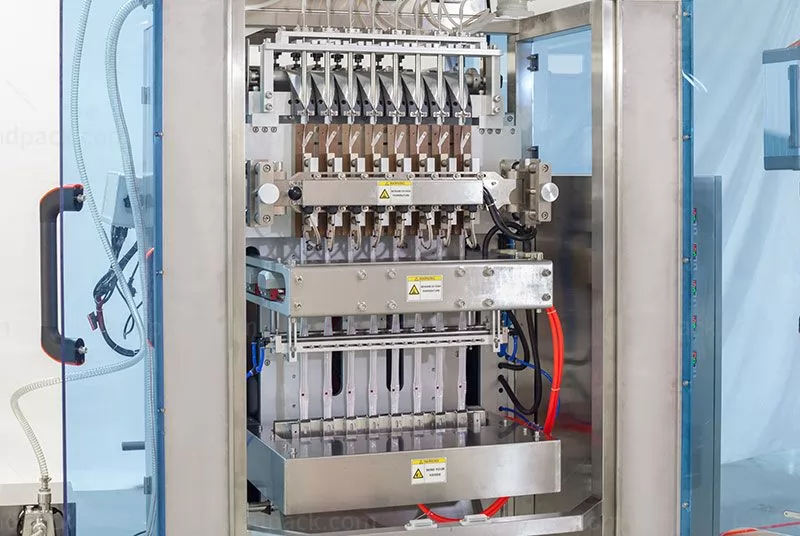

Film-pulling with servo motor double belt: less pulling resistance, the bag is formed in good shape with a better appearance, the belt is resistant to worn-out.
External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.
| Model | LD-280L | LD-560L |
| Track Number | 4~6 Track | 8~12 Track |

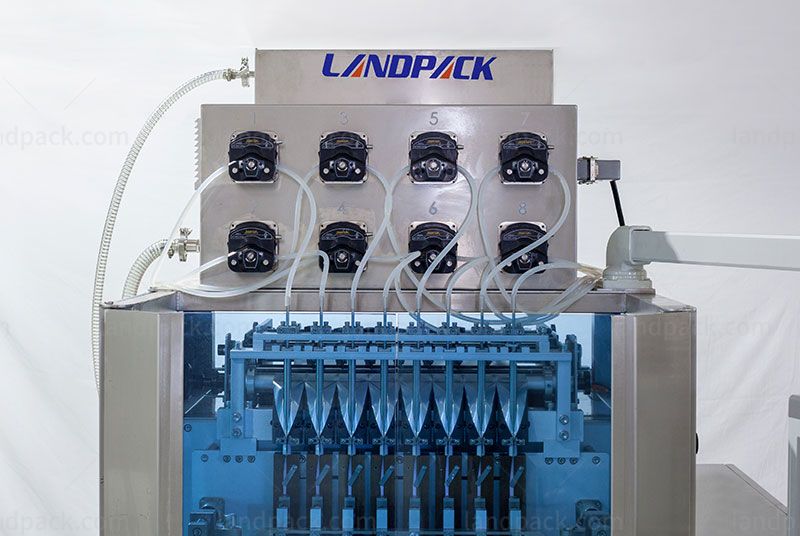

| Filling Method | 1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup | |
| Capacity | Max.35 cycle/min | |
| Sachet Size | L:50--180mm; W:17-30mm | L:50--180mm; W:17--30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |

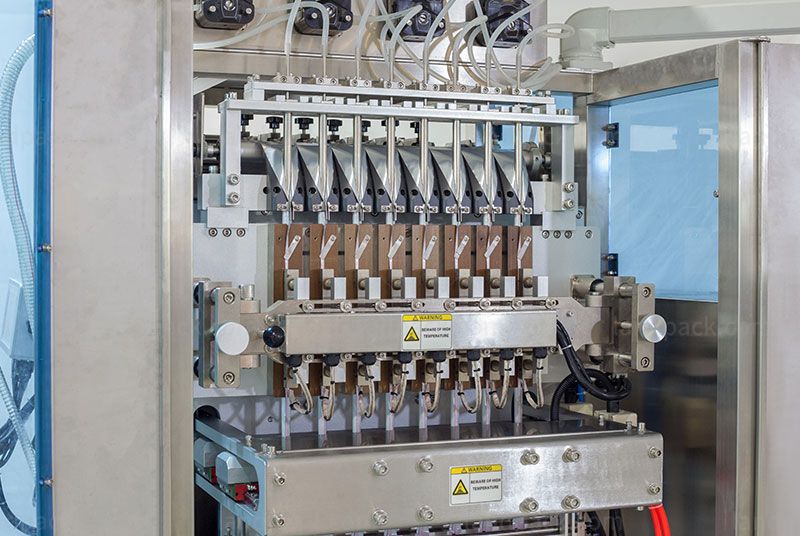

| Sealing Type | Backsealing/ Stick bag | |

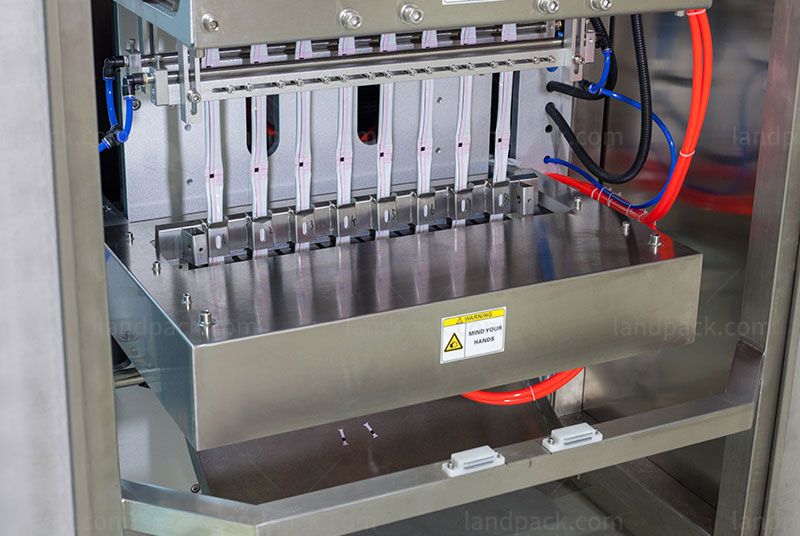

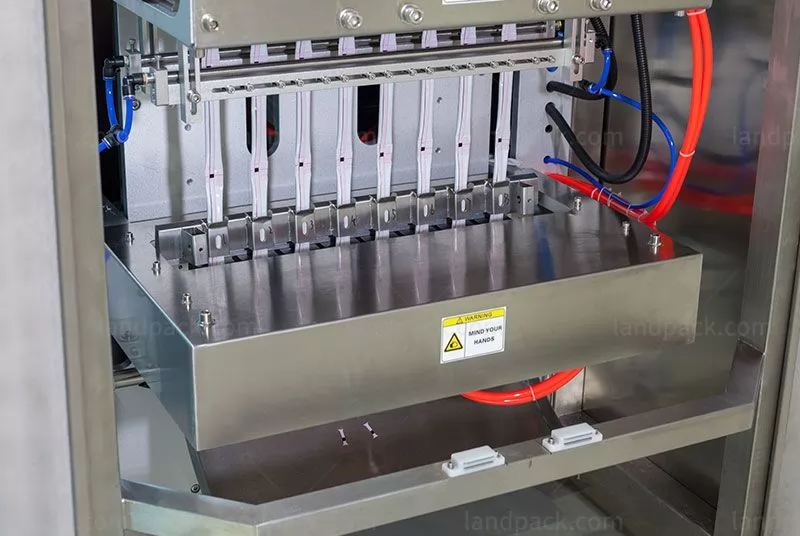

| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw |
After receiving your inquiry,We will send you the quotation as soon as possible.
