Application:
It is widely used in the filling of various semi-fluids, pastes, viscous bodies, and sauces, such as honey, mayonnaise, tomato sauce, pulp-containing beverages, jam, ketchup, chili sauce, salad dressing, etc.
Packaging Material:
HDPE, Aluminum, Plastic, Glass, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension
Packaging Exambers:

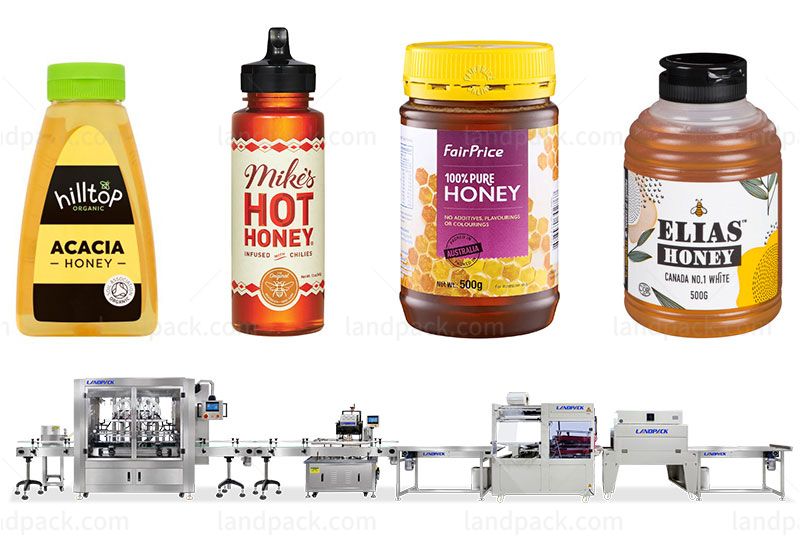

1. The honey filling line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as honey, juice, edible oil, sauce, daily necessities, medicine, etc;

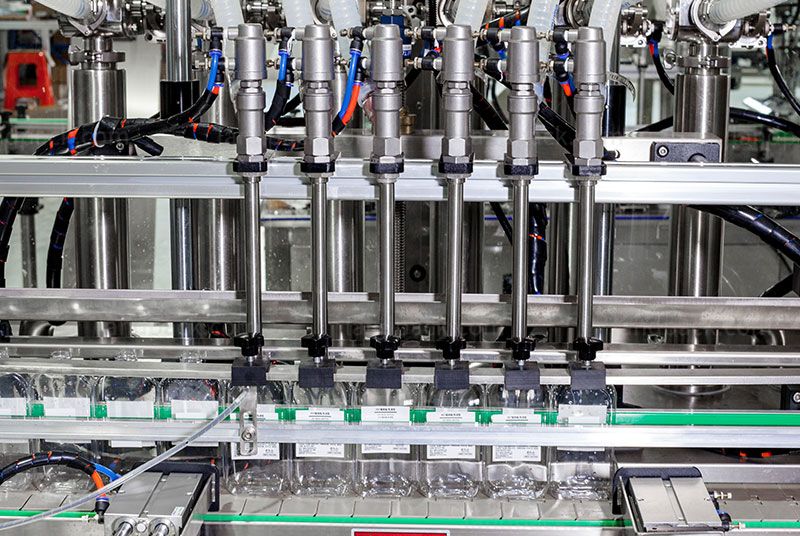

2. Machine has a nice appearance and reasonable structure, it's currently the most advanced new design sauce filling machine, the machine can be customized with 4/6/8/12/etc filling heads according to the customer's production capacity.
3. The contact with the material is 304 stainless steel, in full compliance with GMP standards.
4. Servo motor control filling volume and time, filling precision is about ±0.5%

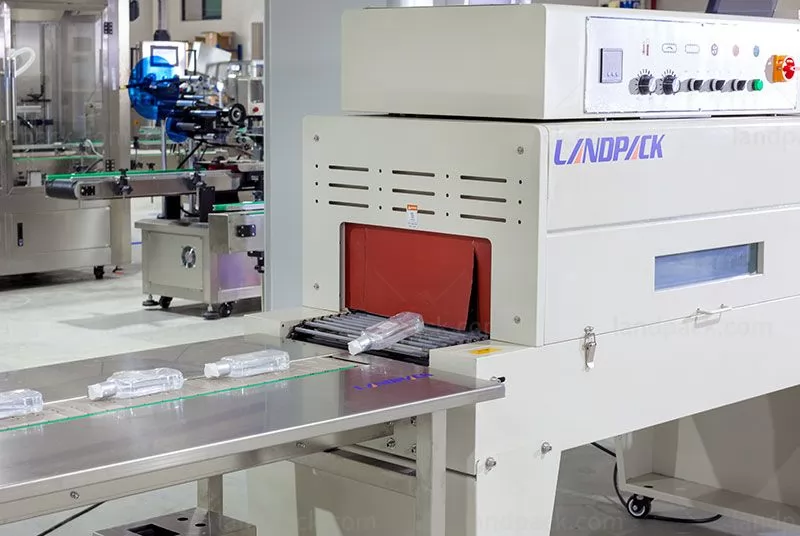

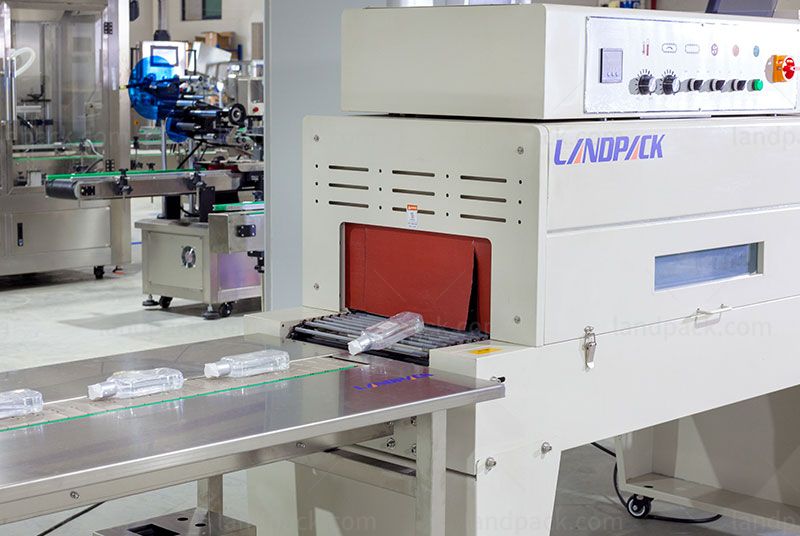

5. The cap sleeve of the bottle is contracted to prevent theft and avoid air entry, which is suitable for preservation;
6. Filling system has the function of shrinking, has no drop leak, available to fill various kinds of viscosity.
Model Name | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Nozzle | 4 | 6 | 8 | 10 |
Production Speed | 15-25 Bpm | 20-35 Bpm | 30-40 Bpm | 40-50 Bpm |
Filling Accuracy | 200ml: ±1%, 200-5000ml: ±0.5% | |||
Filling Range | 50-1000ml (customizable) | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW |
Power Supply | 220V, 50Hz | |||
Air consumption | 0.6-0.8Mpa | |||
Equipment material | 304 | |||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | |||
Weight | 600kg | 650kg | 800kg | 800kg |
Main Machine Size | L4000*W1320*H2090 mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
