Application:
It is suitable for all kinds of semi-fluid, paste, and viscous materials with or without particles, such as honey, cream, syrup, pulp beverage, and Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, peanut butter, sesame sauce, etc;
Packaging Material:
HDPE, Aluminum, Plastic, Glass, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension
Packaging Exambers:
1. The body is mainly made of high-quality stainless steel, beautiful appearance that is clean and sanitary, and completely meets the food hygiene requirements.
2. PLC controller, high function and control the whole machine's work steps.
3. The quick and flexible connection mode makes disassembly and cleaning more convenient.

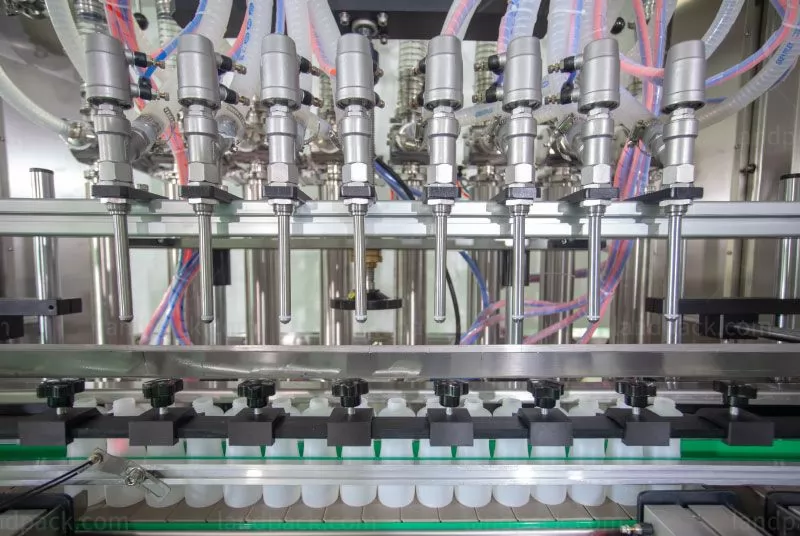

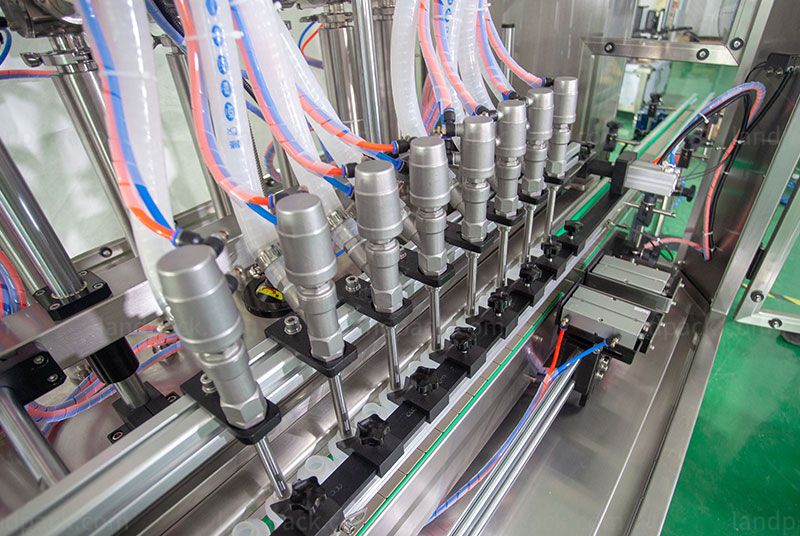

4. It is light and convenient, has strong adaptability, and has a variety of anti-drip filling heads for selection.
5. Accurate measurement, high packaging efficiency, compact structure, low noise, and long service life
6. Honey automatic filling machine is convenient to control, without the bottle, and can and has the function of counting.
7. It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, etc.
8. Honey automatic filling machine automatically goes through the bottle and can pack automatically, with high precision. According to different specifications and models of bottles, the volume of the bottle and the size of the bottle mouth can be adjusted at will. It can be equipped with an automatic assembly line.
Model Name | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Nozzle | 4 | 6 | 8 | 10 |
Production Speed | 15-25Bpm | 20-35Bpm | 30-40Bpm | 40-50Bpm |
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% | |||
Filling Range | 50-5000ml (customizable) | |||
Power Supply | 2KW | 2.5KW | 3.5KW | 5KW |
Power Supply | 220V/380v 50hz Three phase | |||
Air Pressure | 0.6-0.8Mpa | |||
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. | |||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | |||
Dimension (mm) | 4000*1320*2090 | 4000*1320*2090 | 4000*1320*2090 | 4000*1320*2090 |
Weight | 600kg | 650kg | 800kg | 800kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
