Application:
Suitable for honey, cosmetics, creams, skincare, wasabi, tomato sauce, peanut butter, ointments, adhesives, hair dyes, shoe polish, toothpaste, and other thick liquid or paste filling and sealing materials.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

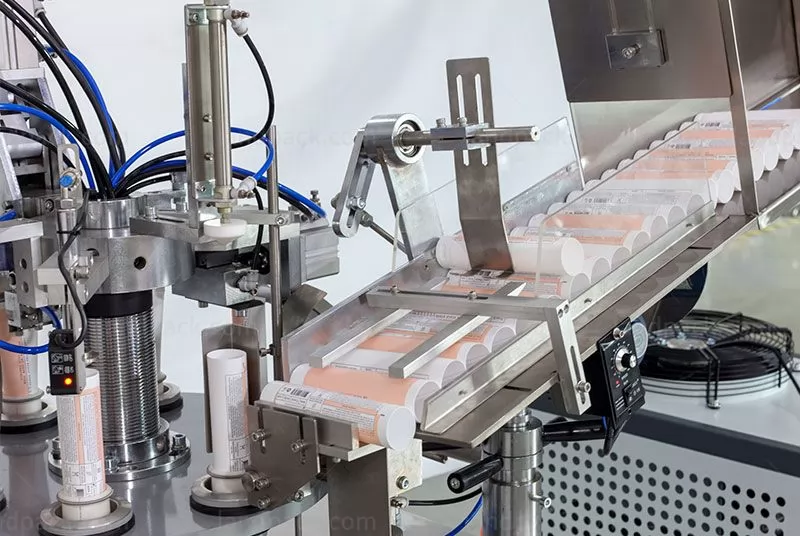

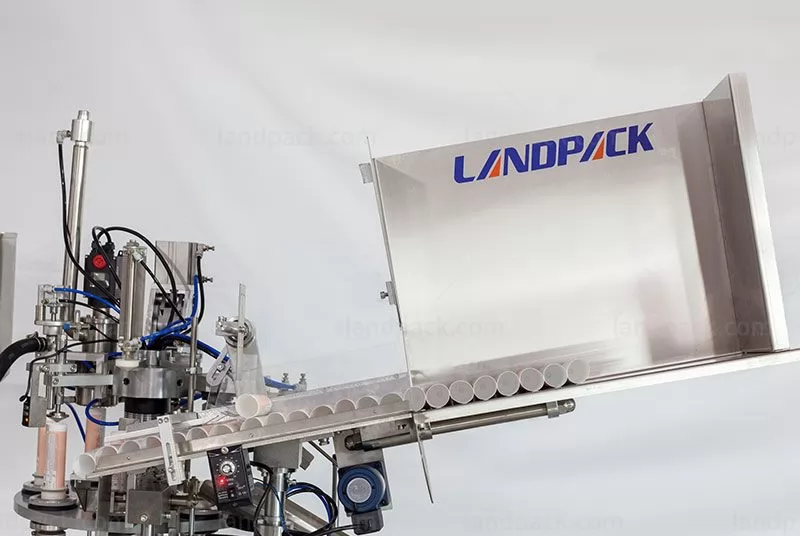

1. Automatic tube feeding to save labor.
2. Air heating and water cooling type for tail sealing, mild sealing mode, Instant cooling after heating sealing to protect the tube from being burned, sealing effect is more beautiful.
Work Flow:
1. Automatic Tubes Feeding
2. Tube Orientation Checking

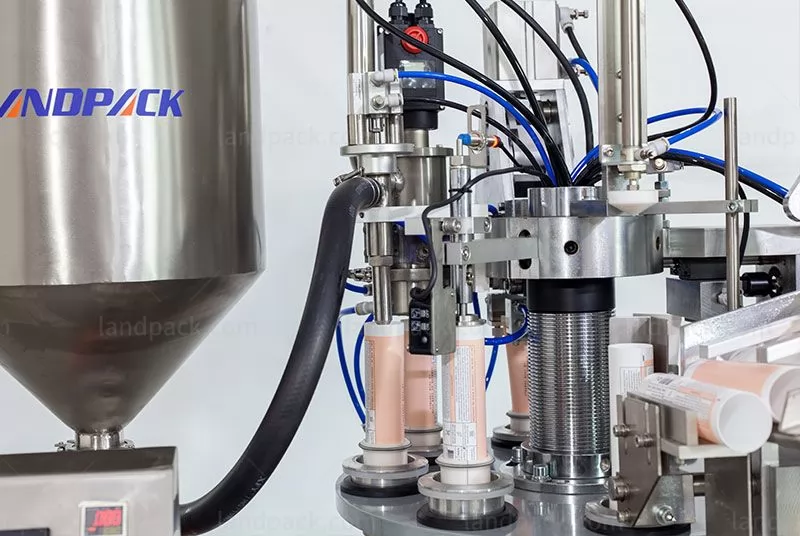

3. Filling
4. Air Heating/Cooling
5. Heat Sealing/Cooling → Date Printing
6. Tube Tail Cutting
7. Finished Tube Output
Model | LD-CFW-00 |
Sealing speed | 0-40 pcs/min |
Sealing range | 5-300 ml |
Tube height | 50-150 mm |
Tube diameter | 10-45 mm |
Size | 1100*850*1600 mm |
Power | 2.5 KW |
Weight | 550 KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
