Application:

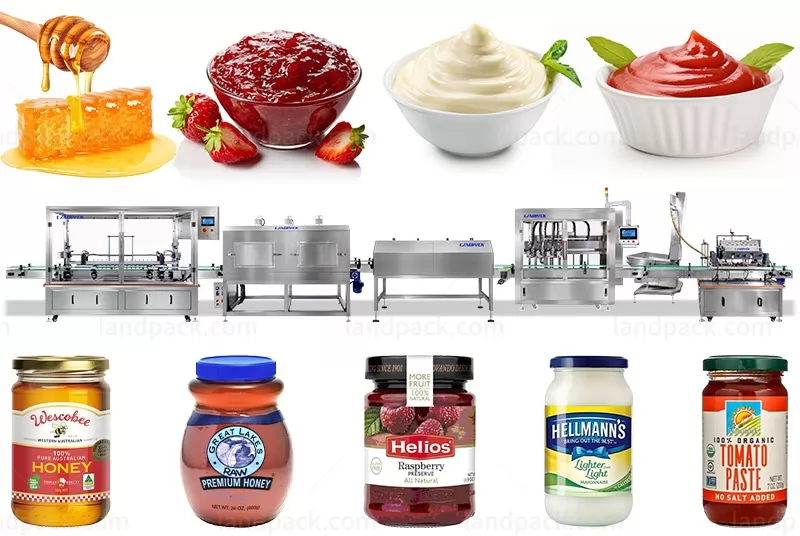

The filling machine line is designed for a wide range of viscous and liquid products, including honey, syrup, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, and dishwashing liquid. It ensures precise filling, efficiency, and high-quality packaging for various industries.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension
Packaging Exambers:
1. Linear Filling Line: Compatible with various bottle shapes, providing flexible packaging solutions.
2. Piston Filling System: Ideal for thick honey filling, ensuring smooth and precise dispensing.
3. Fully Automated PLC Control: Enhances accuracy, reduces waste, and optimizes material and time efficiency.
Workflow:

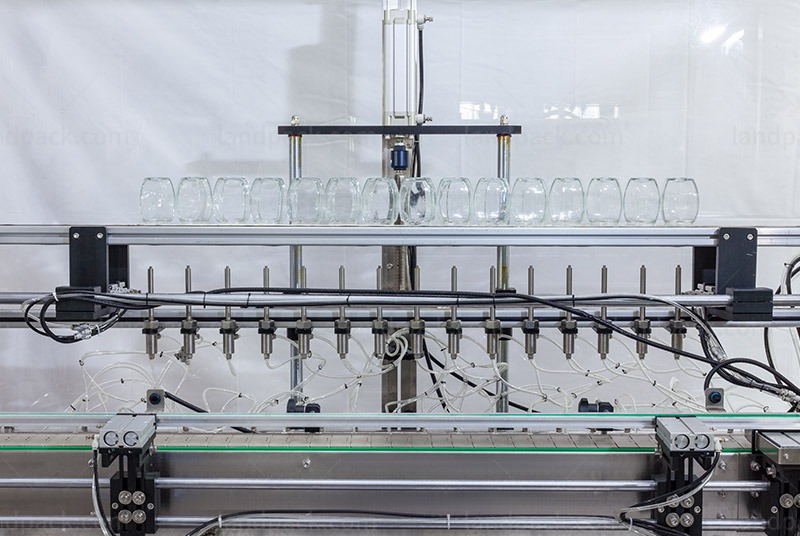

1. Water washing machine (16 Nozzles)

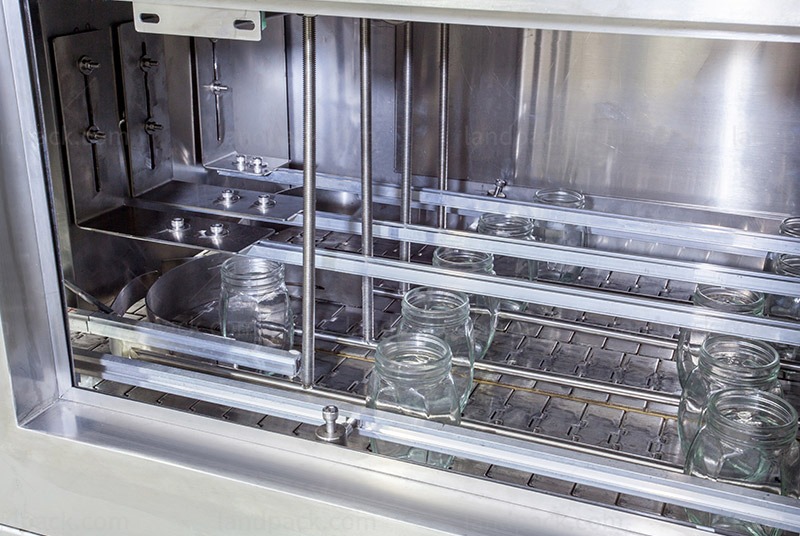

2. Drying machine
3. UV sterilizer

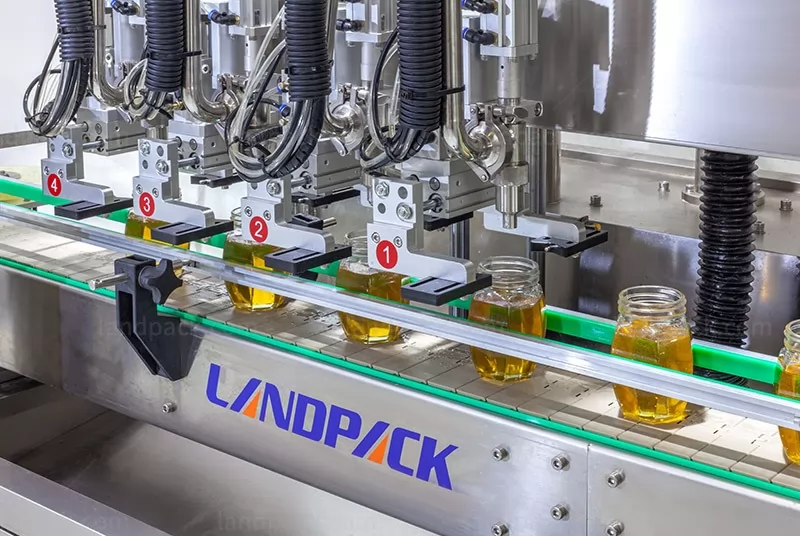

4. 4 heads piston tracking filling machine
5. Two heads screw capping machine
6. Collecting table
Automatic bottle washing machine | ||||
Washing head | 4 Heads(can be customized) | 6 Heads(can be customized) | 8 Heads(can be customized) | |
Bottle diameter | 30-130mm(customized) | 30-130mm(customized) | 30-130mm(customized) | |
Washing way | negative ions | negative ions | negative ions | |
Washing speed | 14-24 bottles/min | 25-35 bottles/min | 36-46 bottles/min | |
Machine body | SS 304 | SS 304 | SS 304 | |
Machine voltage | 220V(can be customized) 3.5KW | 220V(can be customized) 3.5KW | 220V(can be customized) 3.5KW | |
Machine weight | 580kg | 680kg | 780kg | |
Machine size(L*W*H) | 2000*1000*1800mm | 2000*1500*1800mm | 2000*2000*1800mm | |
Bottle Drying Machine | ||||
Machine Model | LD-HG6000 | |||
Power | 3 phase 380v | |||
Power Consumption | 10KW | |||
Tunnel Outside Size | About340*385*2000mm | |||
Tunnel Inside Width | About 100mm | |||
Suitable Bottle Height | About 150-300mm(Can be customized) | |||
Temperature Control | 100-160 degree | |||
Machine Size | About2000*610*1640mm | |||
Packaging Size | About2150*800*920mm | |||
Packaging Weight | About 170kg | |||
UV Machine | ||||
Machine Model | LD-UV1 | |||
Voltage | 220V/110V50-60Hz | |||
Power | About 370W | |||
Quantity of UV Lights | 12 | |||
Length of UV Lights | 600mm | |||
Sterilization Area | 5-10m per light | |||
Conveying Speed | 0-20m/min | |||
Machine Size | About(L)2000*(W)222*(H)900±50mm | |||
Bottle Liquid filling machine | ||||
Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Range | 50-1000ml (customizable) | |||
Production Speed | <15-25 bottles/min | <20-35 bottles/min | 30-40 bottles/min | <40-50 bottles/min |
Measurement Accuracy | ±1% | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW |
Voltage | 220V, 50Hz | |||
Air consumption | 0.6-8Mpa | |||
Weight | 600kg | 650kg | 800kg | 800kg |
Dimension | L4000*W1320*H2090(mm) | |||
Autoamtic capping machine | ||||
Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |
Capacity | 20-50 bottles/min | 40-100 bottles/min | 30-80 bottles/min | |
Bottle cap diameter | Φ22mm-Φ80mm (Could be customized) | Φ18mm-Φ80mm (Could be customized) | ||
Bottle diameter | Φ35mm-Φ140mm（Could be customized） | |||
Bottle sealing height | 38mm-300mm（Could be customized） | |||
Power | 1.5KW | 2KW | 1.5KW | |
Voltage | 220V, 50HZ | |||
Air Pressure | 0.6-0.8Mpa | 0.5-0.7Mpa | ||
Weight | 250kg | 350kg | 300kg | |
Dimensions | H3000*W800*L1600mm | H3120*W1544*L212 | H3100*W1244*L2122 | |
After receiving your inquiry,We will send you the quotation as soon as possible.
