Application
The machine is suitable for various liquid products and can handle different types of premade bags. It is ideal for packaging liquids such as honey, milk, oil, ketchup, paste, sauce, fruit juice, hand wash, and laundry liquid. When equipped with explosion-proof devices, it is also suitable for flammable and explosive liquids like alcohol, spirits, and disinfectants, ensuring safety and precision in the packaging process.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Horizontal Bag Feeding Device: Accommodates a large quantity of bags for uninterrupted operation.

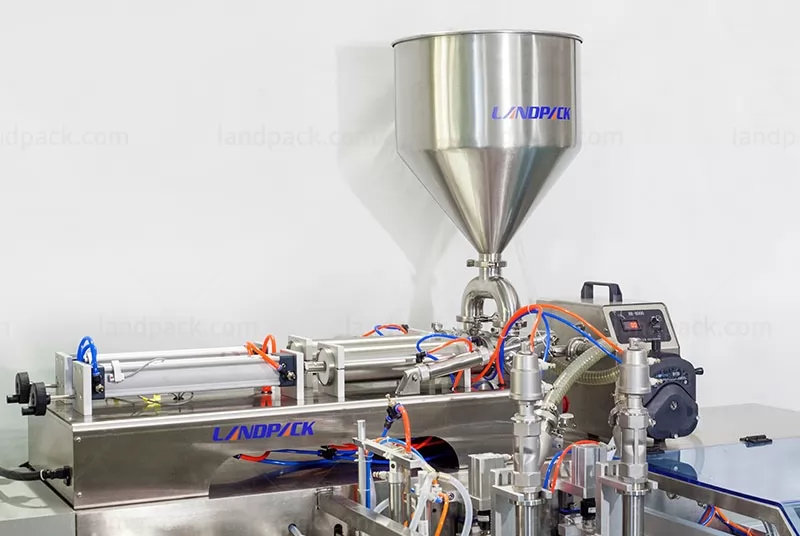

2. Dual Piston Measuring Pump: Offers a wide measurement range, ensuring versatility for different packaging needs.
3. Dual Filling Nozzles: Enhances packaging speed, improving overall efficiency.
Machine Structure:
1. Explosion-proof electrical box
2. Horizontal bag giving device
3. Date printer

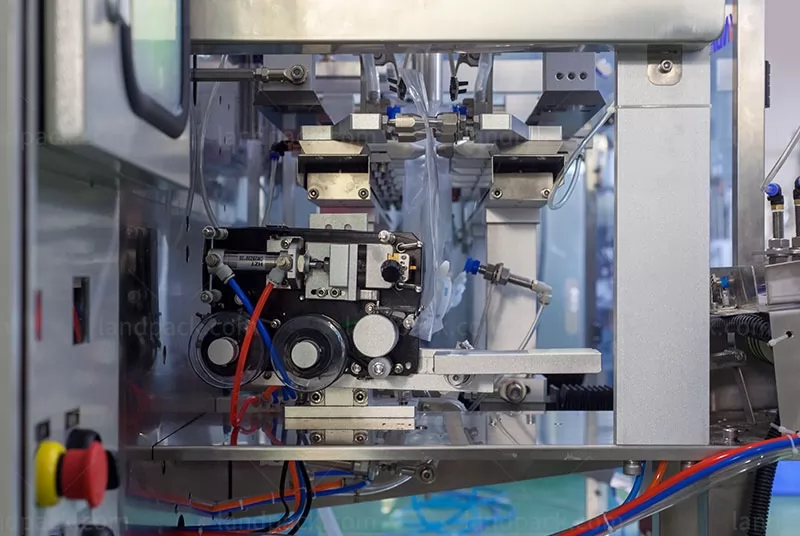

4. Bag opener
5. Dual filling nozzle
6. Double sealing device

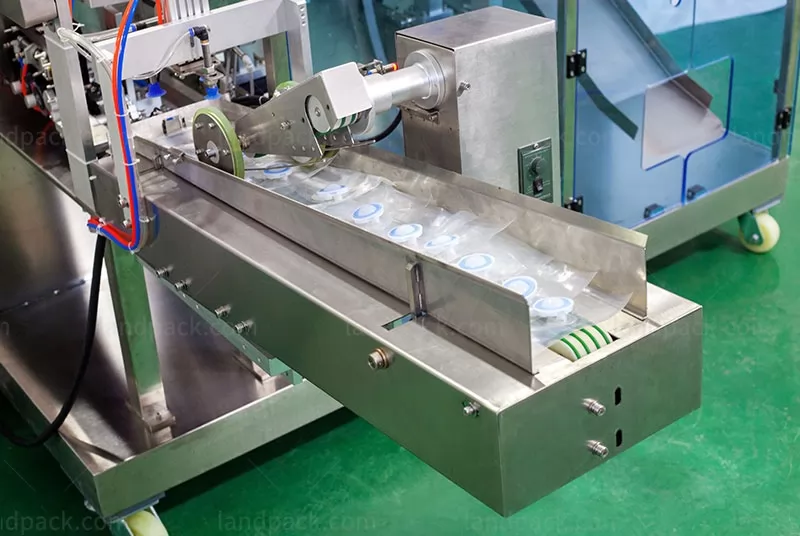

7. Outlet
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
