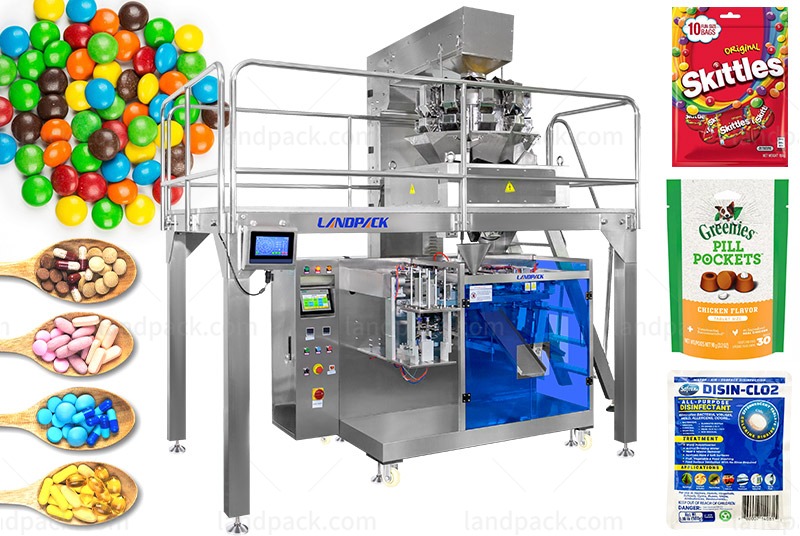

Automatic Premade Pouch Granule Horizontal Doypack Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
This machine is suitable for automatic packing of grain and solid food products, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuits, peanuts, capsules, seeds, chemicals, sugar, and more. It ensures efficient, precise packaging for a wide variety of materials.

Suitable Pouch:  Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: horizontal pouch packing machine

1. User-Friendly Operation: Most parameters are controlled via a 7-inch Siemens touch screen with multi-language options, making it easy to operate and adjust settings.

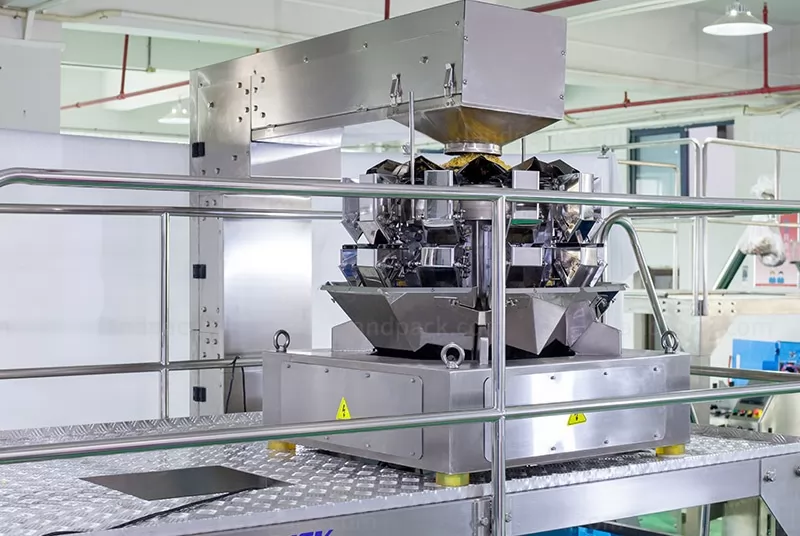

2. High Precision: The multi-head weigher uses advanced Japanese technology to ensure accurate dosing, providing high precision and reliability for consistent packaging.

3. Fully Automatic Process: The machine automates feeding, dosing, bag inputting, and sealing. It supports various bag types such as stand-up bags, bags with Euro holes, linked bags, and bags with date manufacturing.

4. Versatile Packaging Film: Compatible with lamination pouches, PE, aluminum pouches, paper pouches, and different bag types like stand bags, zipper bags, flat bags (3-side seal, 4-side seal, bags with punched hole handles, and pillow bags), providing flexibility for various packaging needs.

5. Industry-Wide Application: Packaging machines are widely used in food and non-food industries, offering efficient packaging solutions suitable for a variety of products.

TypeLDSP-160LDSP-160YLDSP-210LDSP-260
Bag Type3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size110-230mm*80-160mm (L*W)70-100mm*110-230 (L*W)100-210mm/110-320mm (L*W)100-260mm/110-320mm (L*W)
Filling Range10g-100g10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined
by the product filling quantity)
25-50bags/min(speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
Machine weight800KG800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW2.0KW
Work Flow1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product
Dimensions1750*1285*1360mm(L*W*H)2140*1366*1360mm(L*W*H)2140*1366*1360mm(L*W*H)
CollocationScrew metering, screw elevator

After receiving your inquiry,We will send you the quotation as soon as possible.
