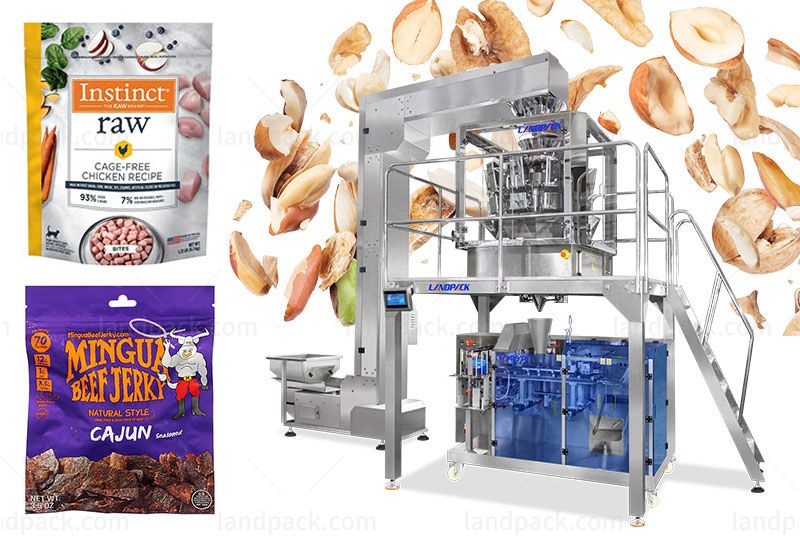

Fast Speed Horizontal Pre-Made Pouch Doypack Packing Machine With Multihead Weigher

  • Application
  • Description
  • Parameter
  • Video

Application:

Fast Speed Horizontal Pre-Made Pouch Doypack Packing Machine With Multihead Weigher,  it is suitable to use in packing the high accuracy and easy fragile material. Such as: nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, apple slices, frozen dumpling, coffee beans, pasta, cotton candy, french fries, rice, small hardware etc.

Sutable Pouch:  Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Fast Speed Horizontal Pre-Made Pouch Doypack Packing Machine With Multihead Weigher

√Easy operation. Most of of parameters in 7inch Simens touch screen with multi-language.

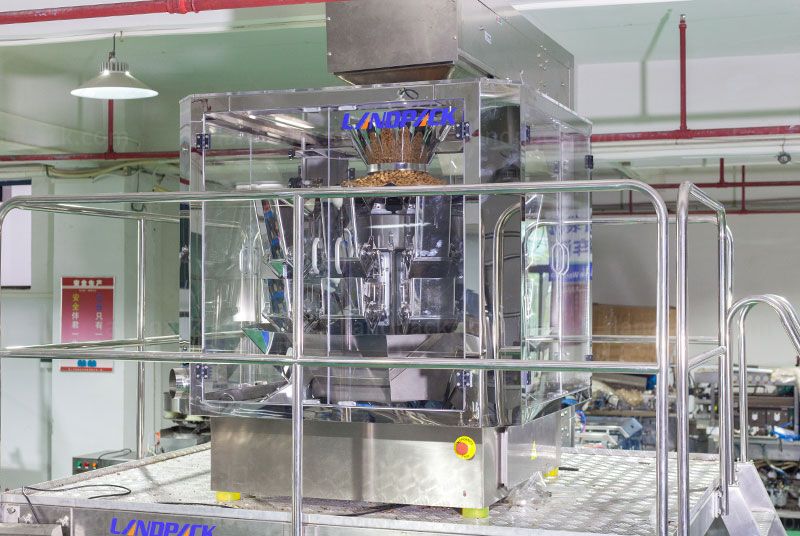

√ Accuracy is very good. Dosing by high precision multihead weigher, Japanese technology ensure high precison and guarratee.

√ Full automatic, Feeding, Dosing, Bag Inputting, Sealing. ( Bag can stand up, or with Euro hole, Linked, date of manufacture )

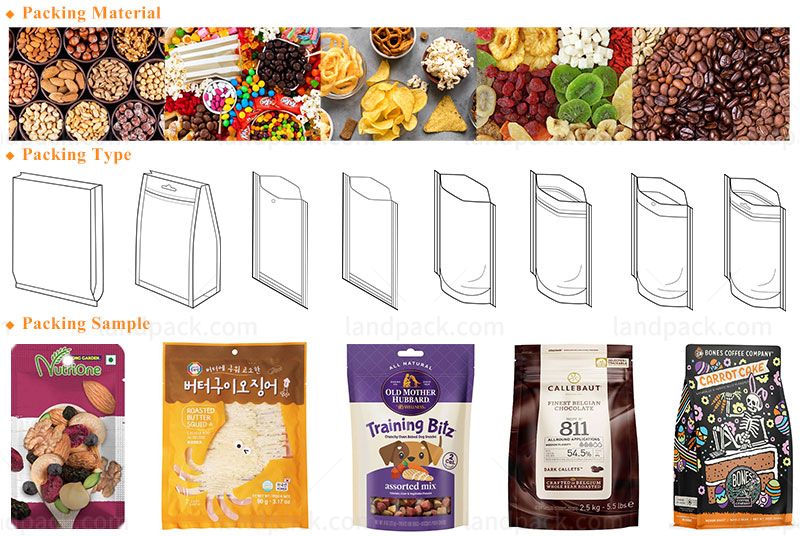

√ Package Film: Lamination Pouch ,PE,Aluminium Pouch, Paper Pouch, Bag type can be Stand bag, zipper bag, flat bag (3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc.).

√ Packaging Machine are used in almost every industry today,food or non-food, They are efficient packaging solutions.

TypeLDSP-160LDSP-160YLDSP-210LDSP-260
Bag Type3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size110-230mm*80-160mm(L*W)70-100mm*110-230(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)
Filling Range10g-100g10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined
by the product filling quantity)
25-50bags/min(speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
Machine weight800KG800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW2.0KW
Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling
5.Heating sealing     6.Output of product
Dimensions1750mm X 1285mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering,screw elevator

After receiving your inquiry,We will send you the quotation as soon as possible.
