Application:
A versatile packaging machine designed for both powder products (milk powder, tea powder, spices, coffee, etc.) and liquid products (honey, milk, oil, ketchup, juice, etc.), offering efficient and flexible solutions for diverse industries.
Suitable Pouch:
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Two-in-One Functionality: Versatile design allows for filling both powder and liquid materials, easily switchable via the touch screen.

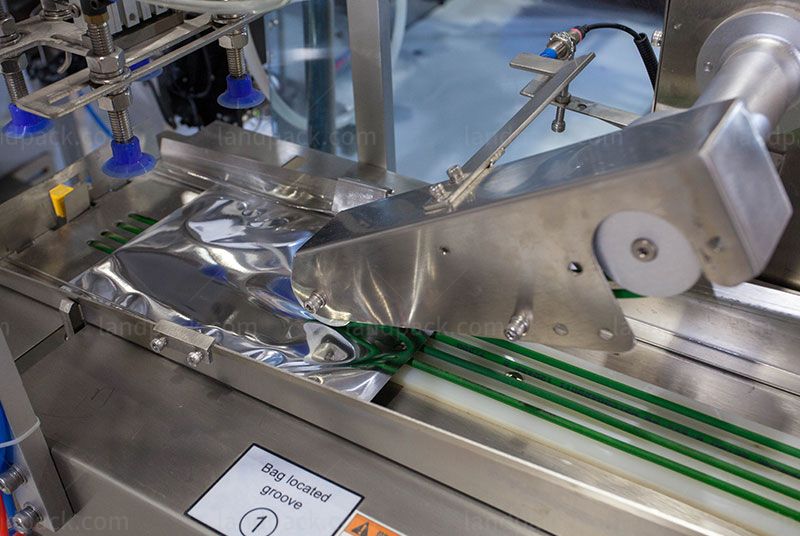

2. Horizontal Bag Feeder: Provides enhanced stability during the bag feeding process, ensuring smooth operation.
3. Upper and Lower Bag Opening Devices**: Guarantees complete bag opening, ensuring successful and precise filling.
4. Flexible Compatibility: Adaptable to various bag sizes, meeting diverse packaging requirements.
5. User-Friendly Touch Screen: Simplifies operation and enhances production efficiency with intuitive controls.
6. Reliable Performance: Ensures stable and accurate filling for consistent packaging quality.
Workflow:
1. Auger Screw Conveyor Feeding The Material
2. Bags Feeding
3. Date Printing
4. Filling Powder 1
5. Rotor Pump
6. Filling Liquid 2
7. Sealing
8. Finished Product Output
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min (speed is determined by the product filling quantity) | 25-50 bags/min (speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm (L*W*H) | 2140*1366*1360mm (L*W*H) | 2140*1366*1360mm (L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
