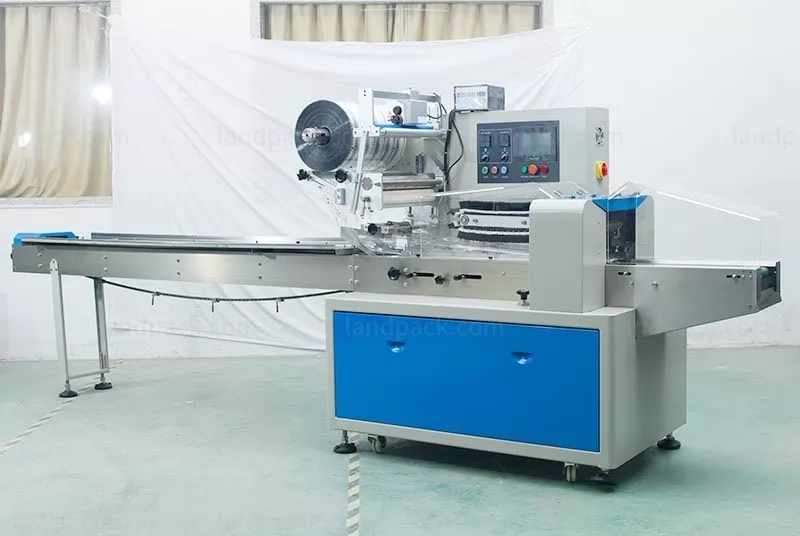

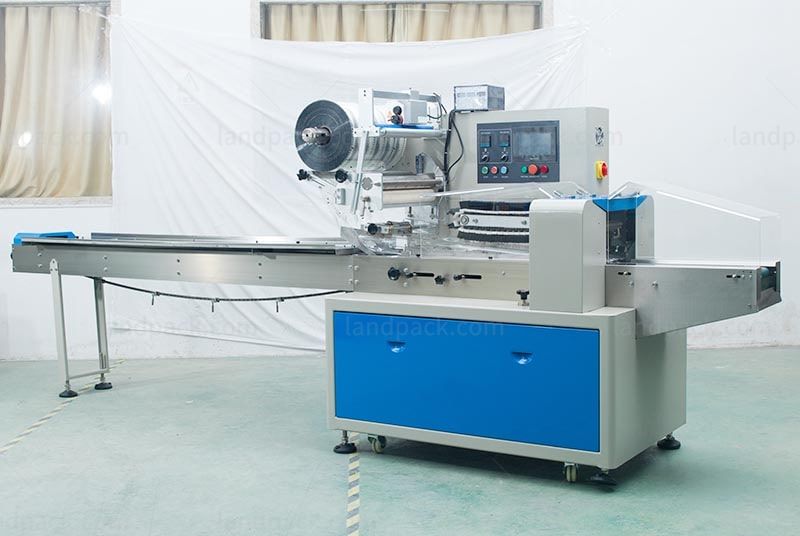

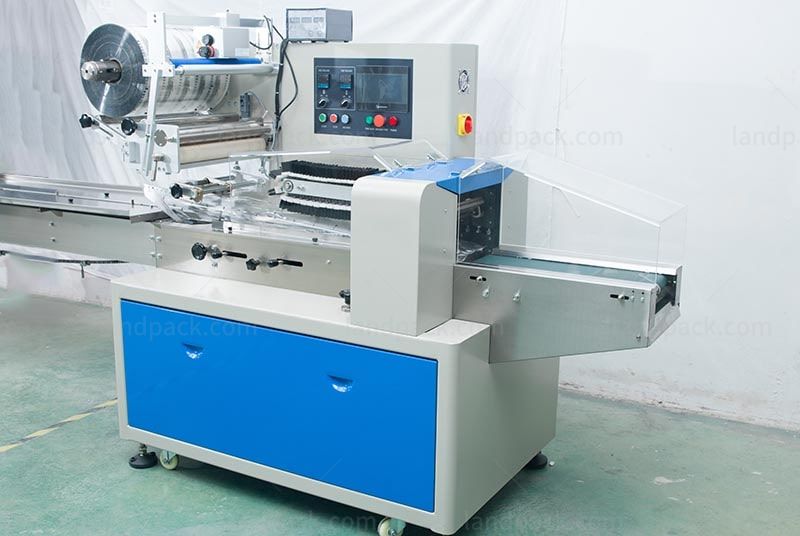

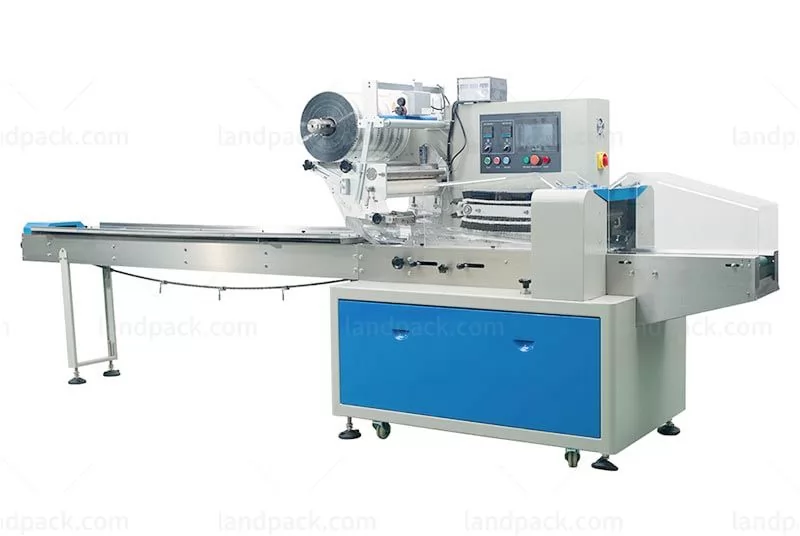

Horizontal Flow Wrap Packaging Machine LP-350/400/450/600/700

  • Application
  • Description
  • Parameter
  • Video

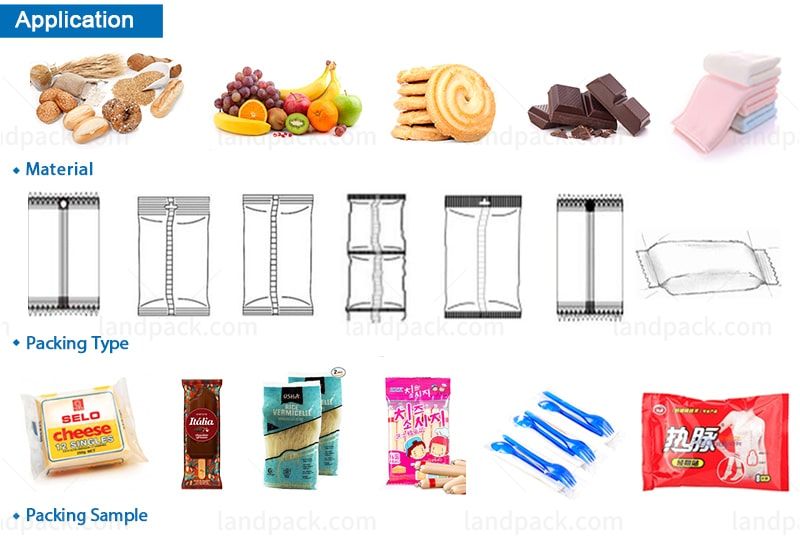

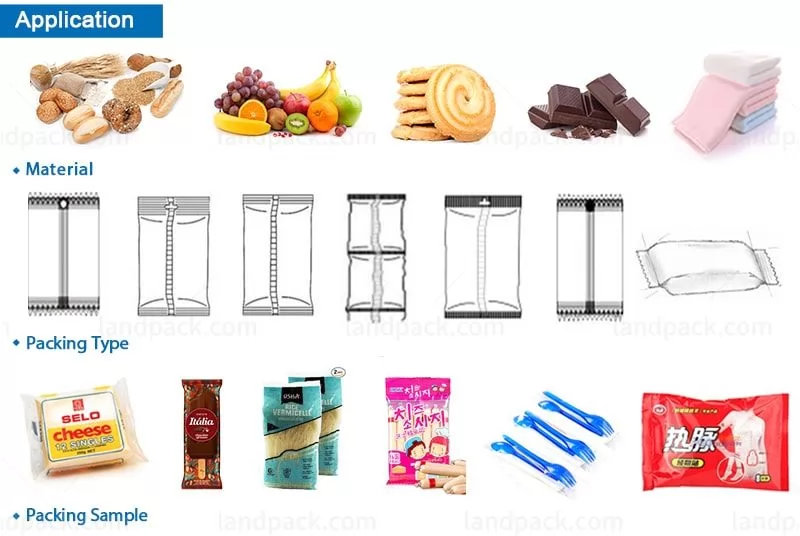

Application:
Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc.
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.
Hardwares: hinge, stainless steel pipe, bearings , screw, nuts and washer, etc
Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.
Stationary: pencil, eraser, notebook, paper card, adhensive tape, etc.
Electric Products: battery, usb cable, earphone, user manual and accessories in one set.
Medical: face mask, glove, gauze, capsule, disposable syringe, etc.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, gift, cups, bottles, napkin, baby diaper, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

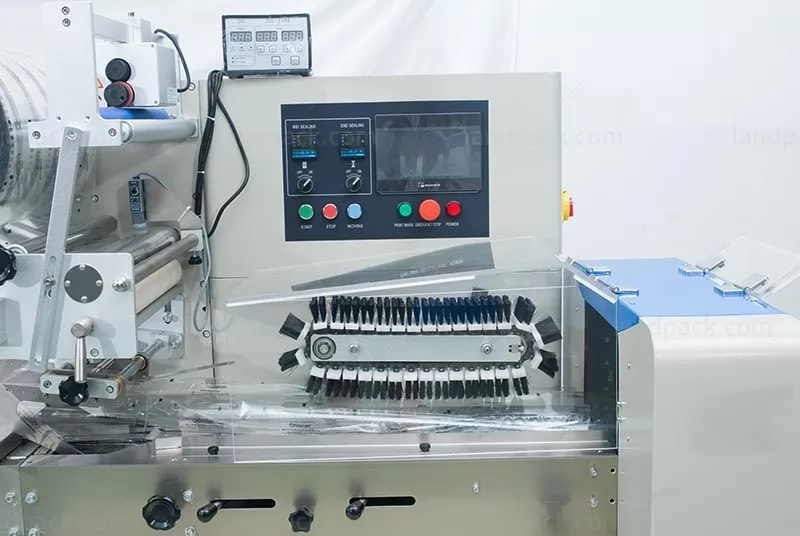

Packing Exambers:    HFFS Horizontal Flow Wrap Machine LP-400/ LP-450/ LP-600/ LP-700

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

Interface features are easy and quick setting and operating.

Self diagnosis failure function, clear failure display.

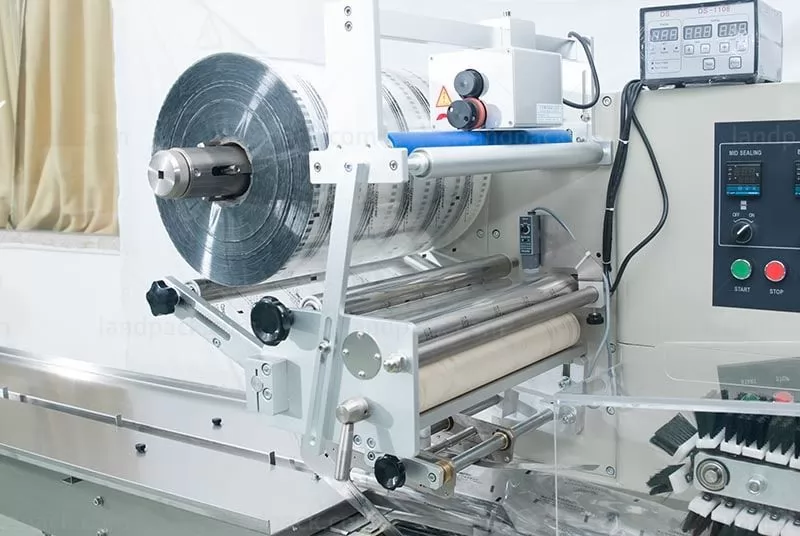

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packing different materials.

Positioned stop function,without sticking knife or wasting film.

Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical urgrade.

ModelLP-350LP-400LP-450LP-600LP-700
Film WidthMax.350mmMax.400mmMax.450mmMax.600mmMax.700mm
Bag Length65-330mm150-400mm150-450mm160-500mm180-600mm
Bag Width50-160mm50-180mm50-180mm100-280mm100-330mm
Products HighMax.60mmMax.65mmMax.75mmMax.110mmMax.110mm
Film Roll DiameterMax.320mmMax.320mmMax.320mmMax.320mmMax.320mm
Packing Speed40-180bag/min30-150bag/min30-150bag/min20-150bag/min20-130bag/min
Power220V 50/60Hz220V 50/60Hz220V 50/60Hz220V 50/60Hz220V 50/60Hz
2.6KW2.8KW2.8KW2.8KW2.8KW
Machine Size4030*770*14204030*770*14204030*820*14204030*970*15004030*1070*1500
(L*W*H)mm
Machine WeightAbout 580kgAbout 600kgAbout 650kgAbout 680kgAbout 720kg
Optional Devices1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,
4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device,
7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine

After receiving your inquiry,We will send you the quotation as soon as possible.
