Application:
Automatic inline filler system designed for the efficient and precise filling of granular or powdered products into bottles. It is widely used in food industries such as potato chips, popcorn, rice, puffed food, biscuits.
Kindly Reminde:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Automatic bottle sorting machine: Automatically arranges and feeds empty bottles into the production line.

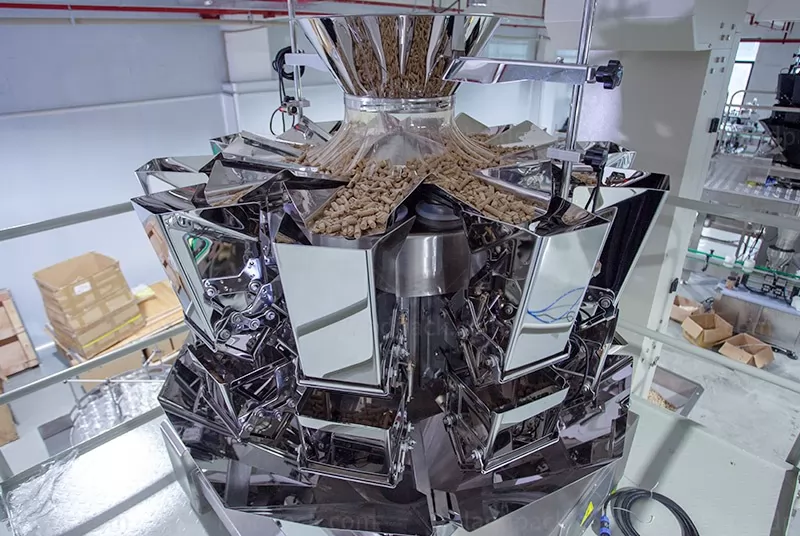

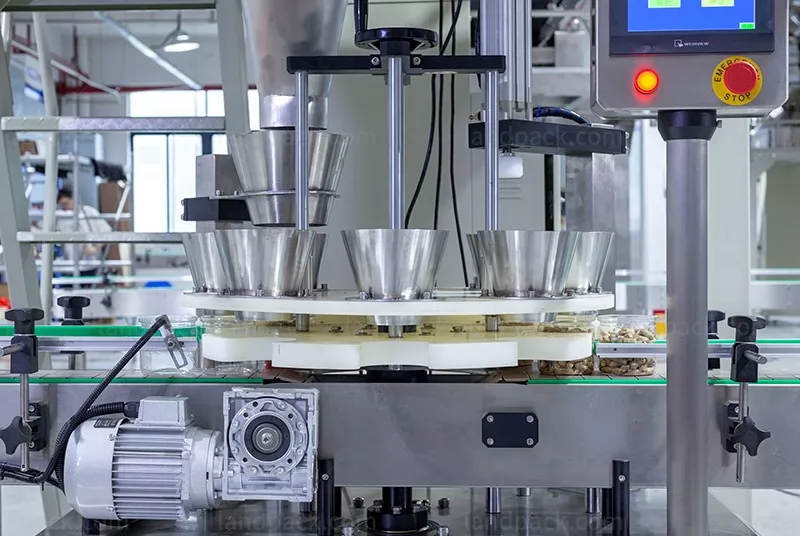

2. Weighing filling: Accurately measures and fills granular materials into can/tin using volumetric or weight-based filling technology.

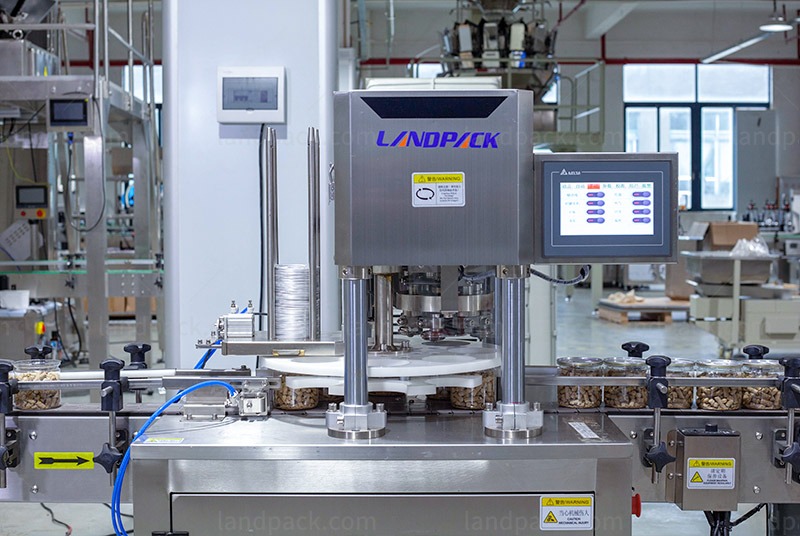

3. Can sealing Machine: Seals the can/tin with caps, ensuring product integrity and preventing contamination.
4. Labeling Machine: Applies labels to the can/tin, including product information, barcodes, and branding.
5. With error indicating system , which help to handle the trouble immediately.

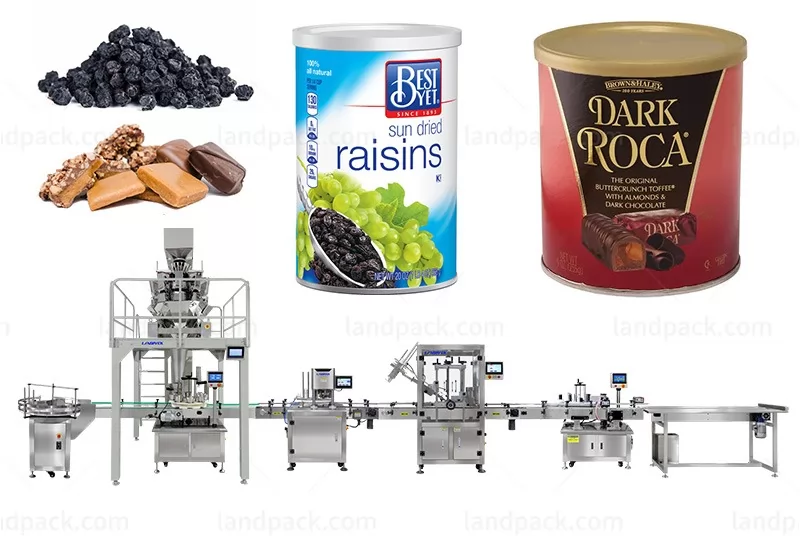

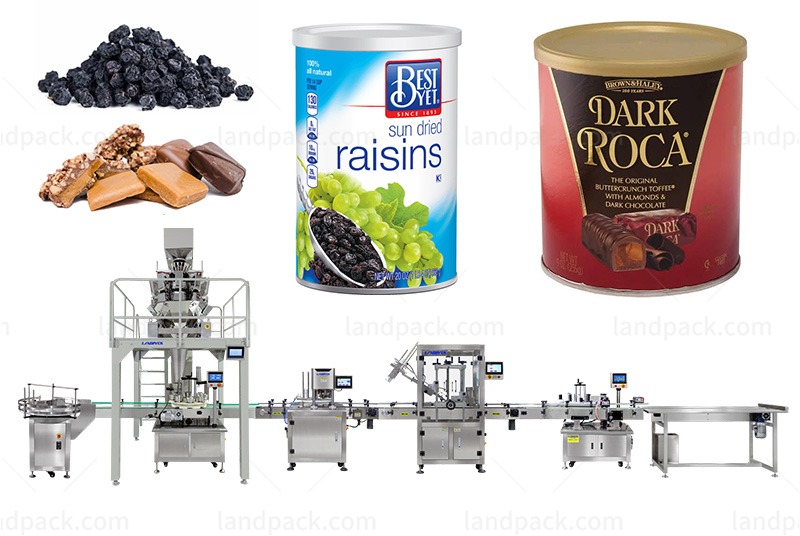

6. Available to connect with the Capping machine, check weigher, Labelling machine and cartoning machine to get the whole bottles or Cans packaging filling line.
Model | LD-AF01 | |
Measure method | Electroni weigher/Piston filler/Pump | |
Sealing height | 50-200mm | |
Filling weight | Max5000ml | |
Packaging precision | ≤0.3-1% | |
Packaging speed | Max50pcs/min (Depend on the product characteristic) | |
Power supply | Three phase 380/220V 50-60Hz / 2kw | |
Pressure | 6-8 kg/cm2 0.3m3/min | |
weight | 500kg | |
Dimension (mm) | 3000x900x1800mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
