Application:
It is suitable for filling various flammable and explosive liquid products, such as disinfectant, nail polish, perfume, toilet water, hair spray, insect repellent, alcohol, fuel, hand sanitizer, spirits, and flammable and explosive chemical liquids.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

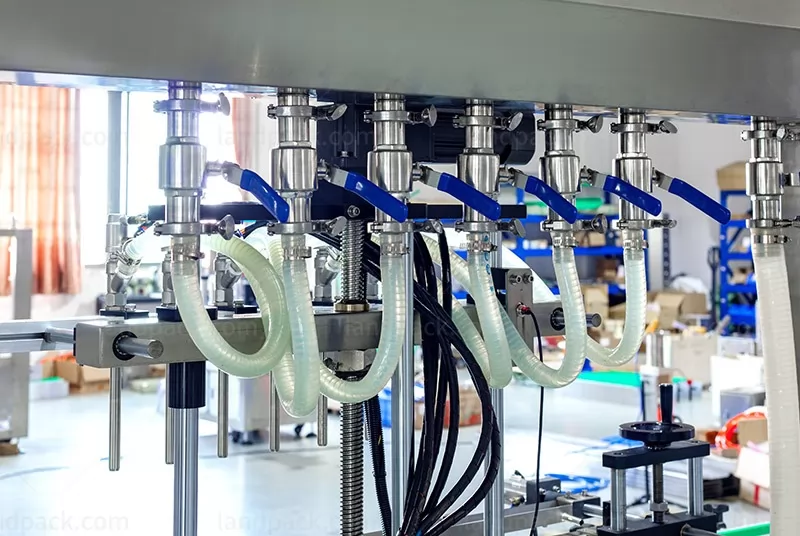

1.Equipped with a 6-nozzle filling system for efficient multi-channel operation.
2.Utilizes premium imported PLC and electrical components from Siemens and Panasonic for reliable performance.
3.Features gear pump metering technology designed for easy maintenance and precise dosing.
4.Incorporates explosion-proof electrical boxes to ensure maximum operational safety.

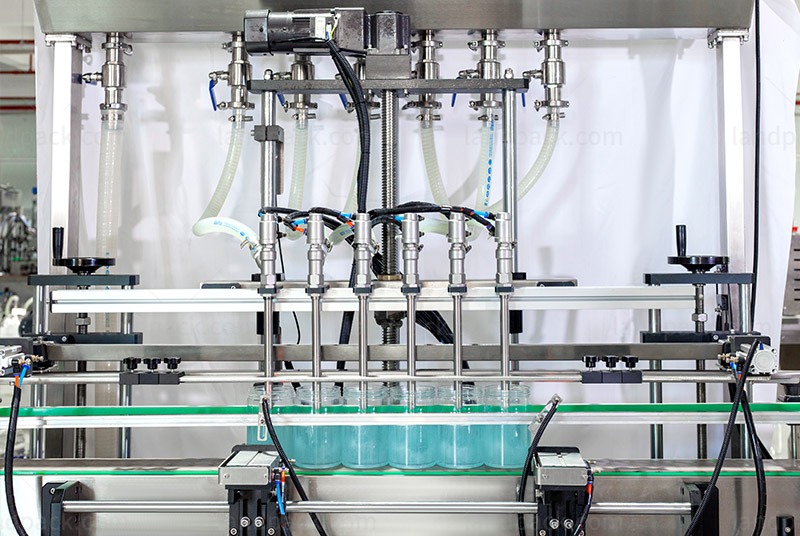

5.Implements motor-controlled lifting mechanism during filling to prevent product foaming.

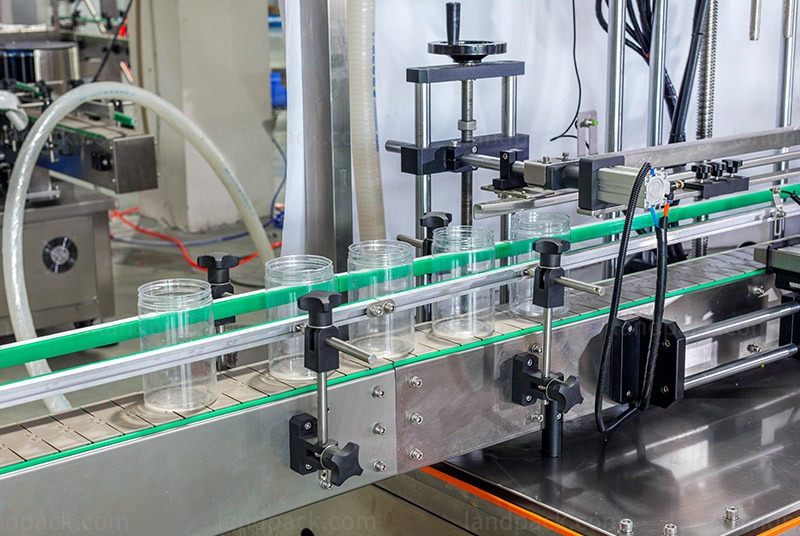

6.Adjustable extended nozzle rods with flexible width settings accommodate various bottle sizes.
Filling volume | 100-5000 ml (Can be customized according to your requirements) |
Filling speed | 2000-2200b/h for 500ml |
Filling precision | 1ml |
Filling head | 2/4/6/8/10(Can be customized according to your requirements) |
Bottles size | 40-100mm(diameter); 80-300mm (height) |
Air pressure | 0.6-0.8Mpa |
Weight | 700kg |
Voltage | 220V/110V; 50hz/60hz |
After receiving your inquiry,We will send you the quotation as soon as possible.
