Application:

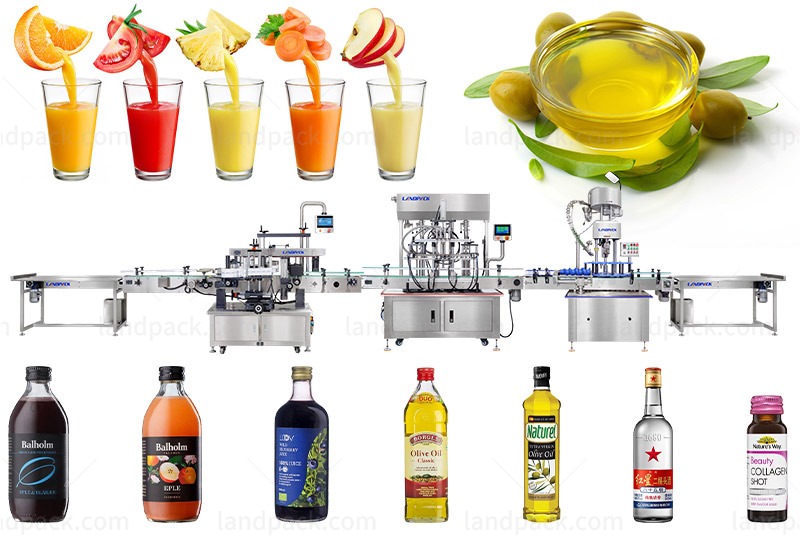

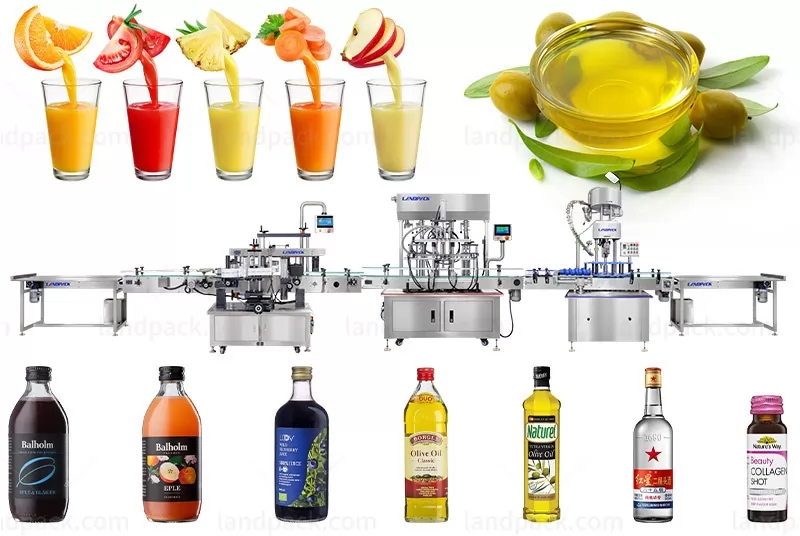

This filling line includes the bottle sorting machine, filling machine, capping machine, labeling machine is a complete filling solution for various liquids, such as soy sauces, vinegar, wines, ails, perfume, toilet water, hair spray, insecticide, shampoo, peanut putter, ketchup, lotion, cream, condiments, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Customized 2/4/6/8/10/12 filling nozzles to fill 2/4/6/8/10/12 bottles at one time.

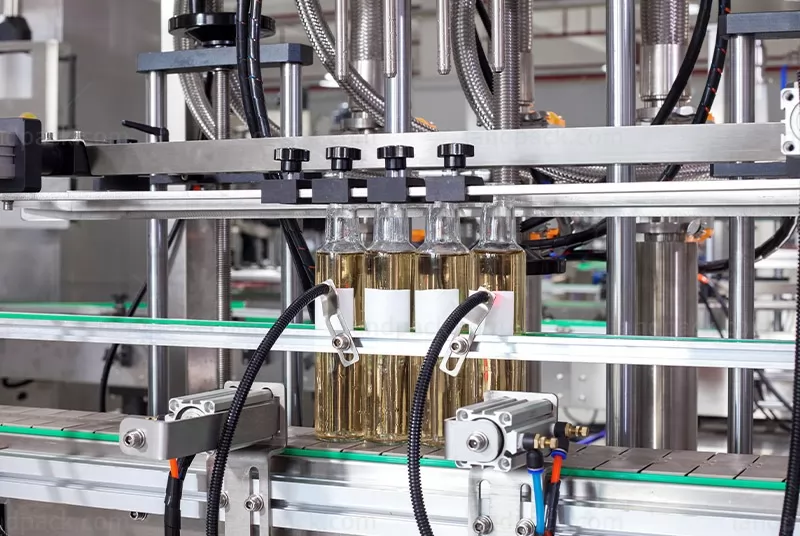

2. The pneumatic shut-off nozzle prevents liquid from dripping down.
3. Provide several operating modes for different production requirements.
4. Various shape bottles can be adopted easily without additional device.
5. Advanced servo motor to enable high speed and high precision multi-filling synchronously.
| Model | LFH-HX-4 |
| Filling Range | 50-1000ml(customizable) |
| Filling Speed | 15-25 bottles/min (100-500ml range) |
| Measurement Accuracy | ±1% |
| Bottle Diameter | Φ30mm-Φ135mm(customizable) |
| Bottle Height | 40mm-200mm(customizable) |
| Control system | PLC |
| Total production line power | 6.5KW |
| Power supply | 220V, 50Hz |
| Airconsumption | 0.8-1.2 m³/min |
| Equipment material | 304 |
| Description of main packaging process: | unscramble bottle → 4 head piston filling → lifting upper cover → servo capping → aluminum foil sealing → labeling → receiving bottle |
After receiving your inquiry,We will send you the quotation as soon as possible.
