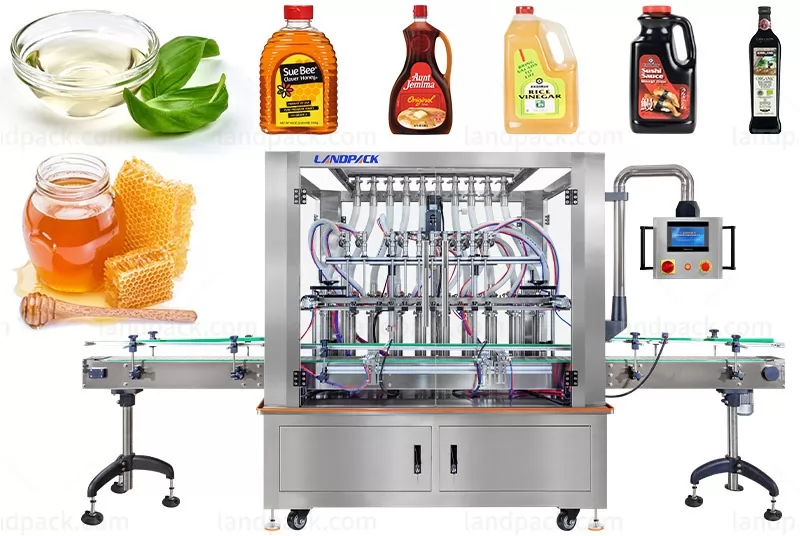

Inline Filling Machine 10 Nozzles Liquid Filling Machine Bottle Filler for Vinegar Juice

  • Application
  • Description
  • Parameter
  • Video

Application:
The inline filler is a high-tech product independently developed by our company. Suitable for products with various viscosities, such as suace, vinegar, ointments, shampoo, etc. Widely used in industries such as food, cosmetics, pharmaceuticals, fats, and daily chemicals

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Inline Filling Machine 10 Nozzles Liquid Filling Machine Bottle Filler for Vinegar Juice

1. With no bottle and no filling function, liquid level automatic control feeding, effectively reduce equipment failure;

2. The overall program control adopts PLC+ touch screen, the adjustment is more convenient and easy to understand;

3. Material in contact with liquid parts such as tank: 304# stainless steel, food-grade silicone, food-grade PVC;

4. The filling nozzle is made of 304 stainless steel, corrosion-resistant and in line with GMP production requirements;

5. The standard machine includes automatic feeding in the form of piston pumping.

Model
LFZ-10
Filling Range
50-1000ml(Customizable)
Filling Speed
15-50 bottles/min
Measurement accuracy
±1%
Power
2 KW
Working power supply
220V, 50Hz
Working pressure
0.6-0.8MPa
Weight
600kg
Size
L4000*W1320*H2090(mm)

After receiving your inquiry,We will send you the quotation as soon as possible.
