Application:
It is Suitable for all kinds of the premade bags, such as zipper pouch, pillow bag, 3-side, 4-side and 8-side quad seal bags (box pouch), kraft bags and spout bags and so on.
It is widely used For lots of application such as grain, stick, slice, globose, irregular shape products such as beef jerky, biltong, dried meat, candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Easy to operate
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. Adjustable bag width
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification

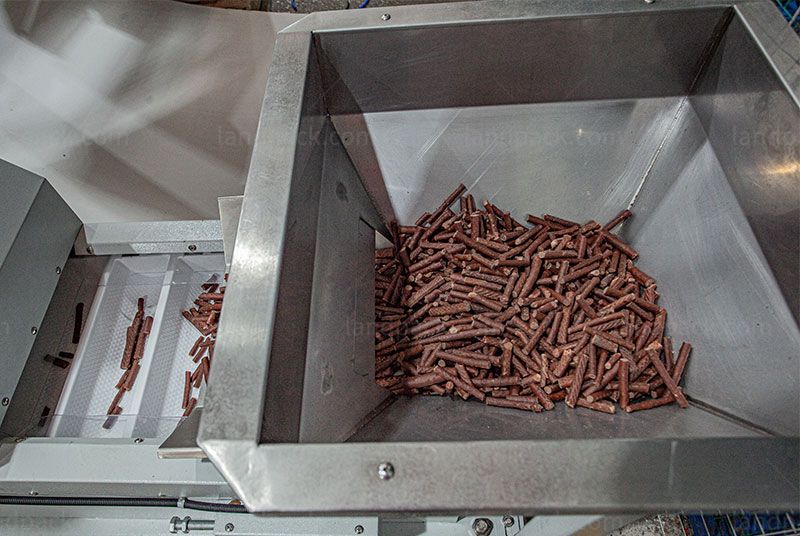

7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on
8. Bag materials: Suits in extensive range
9. Pushing device, specially for long product
10. With zipper opening and nitrogen filling device

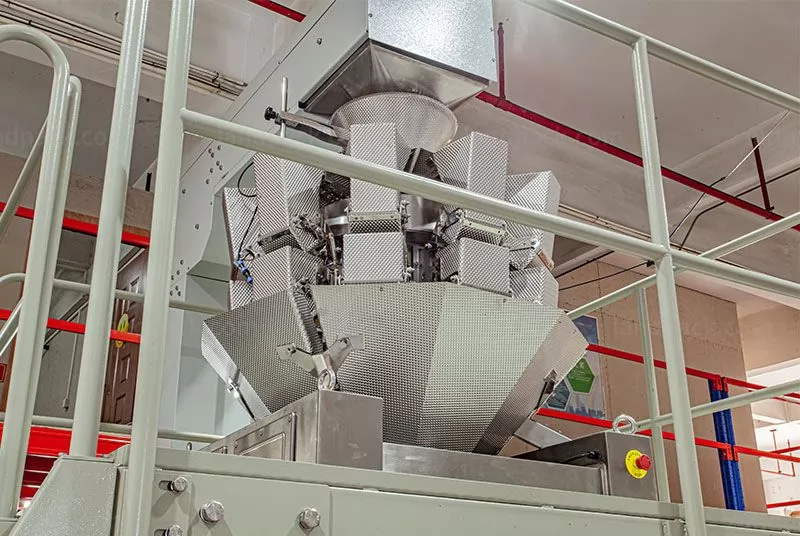

11. Weigher with dimple surface, to avoid the sticky on plate surface

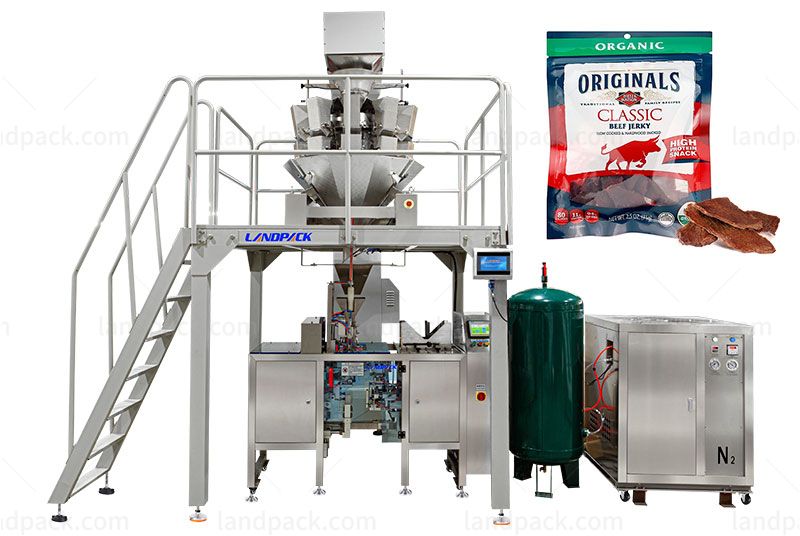

Type | Automatic Beef Jerky Biltong Ziplock Bag Doypack Packing Machine With Nitrogen Filling Function | ||
LDB-200 | LDB-300 | LDB-430 | |
Bag Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | ||
Premade bag type | 3-sides sealing bag, stand-up bag) | ||
Upgraded Bag Type | (Need additional purchase of functional device) | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
Speed | 0~60bags/min | 0~15bags/min | |
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
Sealing Width | 10mm(5--20mm) can be customized | ||
Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
Air Pressure | 0.65Mpa | ||
Air Consumption | Standard machine, no additional function | ||
Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
Export non-fumigation wooden case |
After receiving your inquiry,We will send you the quotation as soon as possible.
