Application:

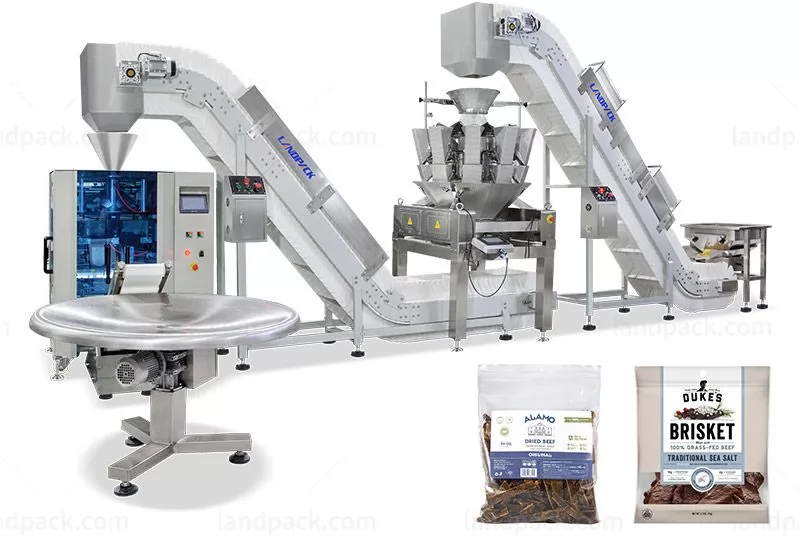

Automatic Beef Jerky Packing Machine With Secondary feeding + weighing. It suitable for packaging in food, agriculture, pharmaceutical, cosmetics, chemical and other industries. such as beef jerky, biltong, chicken nuggets, snack foods, frozen foods, vegetables, fruits, candies, chemicals and other particles.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Material measuring by manual.
It is convenient to input prize, lottery and uneasy measuring.
Material or multi-type packing products.
A complete set of machines are economical and practical.
New design with perfect fashion, more reasonable structure, more advanced technology.
Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
