Application:

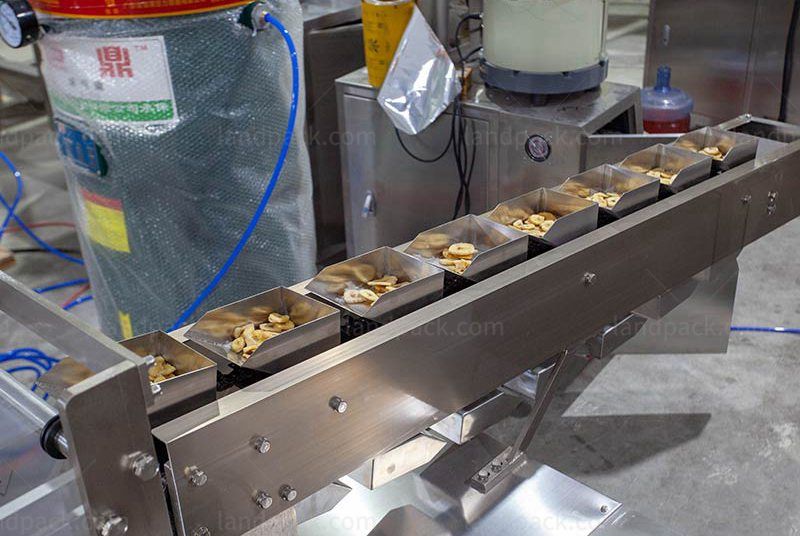

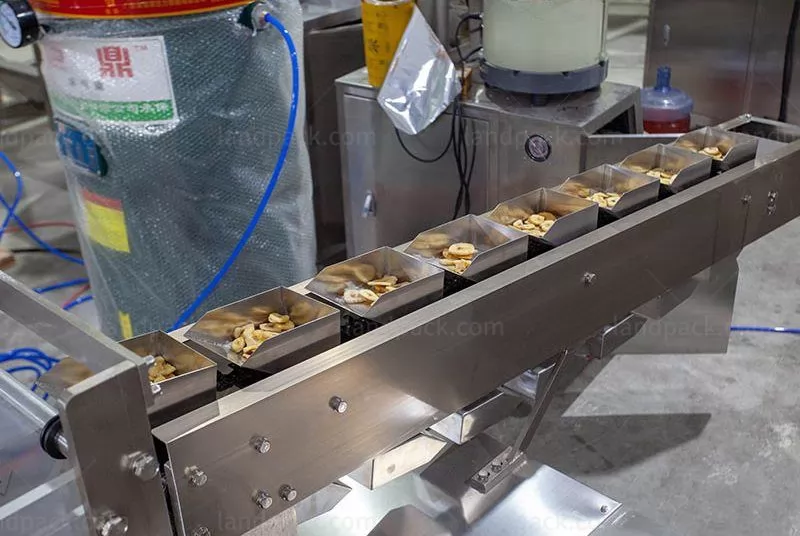

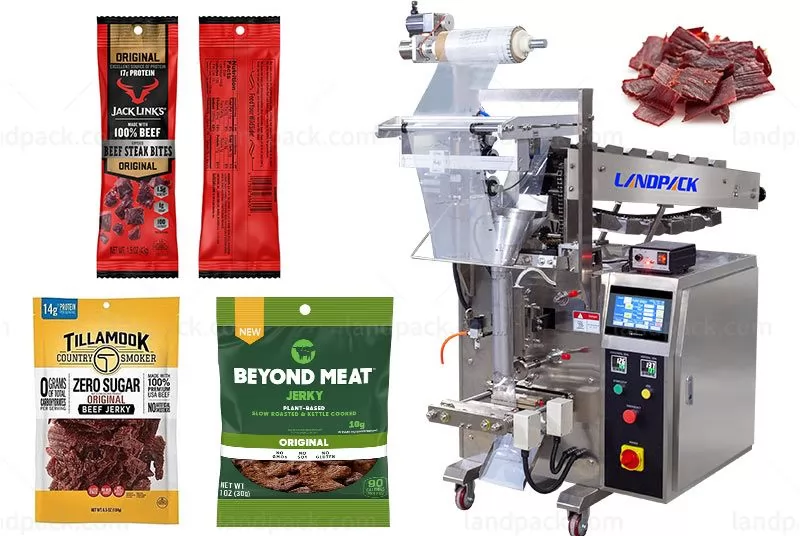

Semi-automatic packing machine with Chain-type batchers is suitable for disposable supplies, daily necessities, industrial parts, medical equipment and other granular, sheet, strip, solid packaging. Such as beef jerky, screw, candy, sugar, nuts, popcorn, frozen food, dry fruit, cannabis, pet food, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
High precision structure for simple and easy operating and repairing.
Single-chip CPU,step-motor,easy and accurate to set the bag length.
Own simple circuitry and outstanding function.

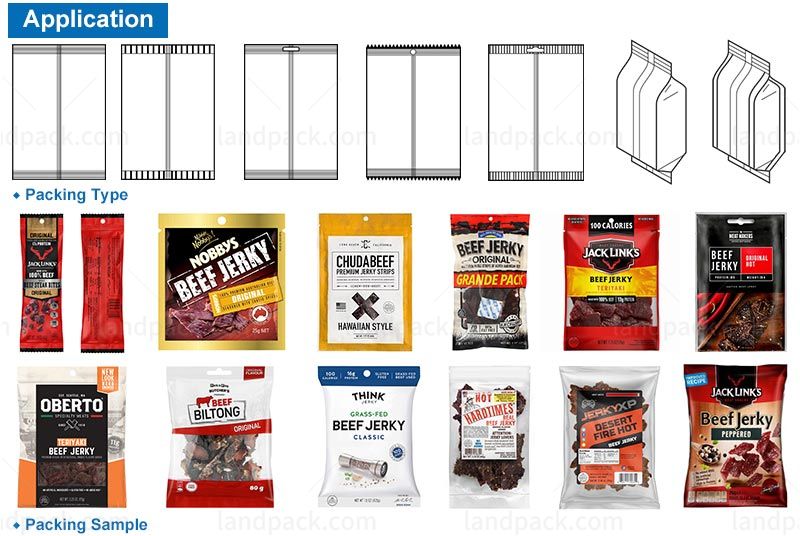

Selecte device: triangle bag, 3 or 4 sides seal bag, bag-linking device.
| Type | LD-320B | LD-380B |
| Film Width | 120-320mm | 180-380mm |
| Bag Length | 50-200mm | 60-280mm |
| Bag Width | 50-150mm | 60-180mm |
| Range of Measurement | 50-500ml | 50-570ml |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Packaging Rate | 35-70bag/min | 35-70bag/min |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine Size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine Quality | 300KG | 450KG |
| Optional device | 1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device | |
After receiving your inquiry,We will send you the quotation as soon as possible.
