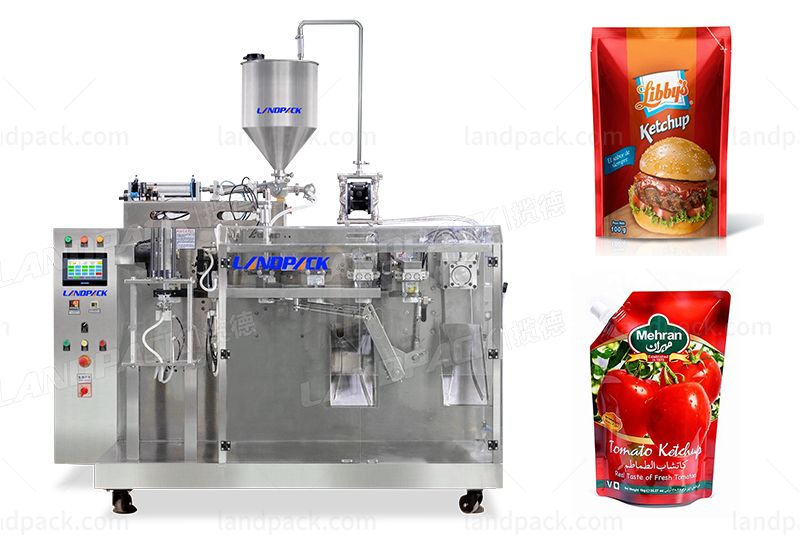

Automatic Doypack Pouch Filling Sauce Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic granules horizontal premade pouch packing machine, it is suitable for the measurement and packaging of various fine particle products, such as sugar, salt, chicken essence, monosodium glutamate, buckwheat, snacks, etc. After replacing the metering device, it is suitable for packaging liquid and powder products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: Automatic Doypack Pouch Filling Sauce Packaging Machine

1.Each adjustment station has a scale, so that the size can be adjusted quickly when filling bags of different specifications.

2.The main parts are made of food grade 304 stainless steel, corrosion-resistant and rust free. The painting of the whole rack reaches the drug grade.

3.Indexing box running spindle, vibration only 3 microns, almost no vibration. The noise is low when the machine is running at high speed.

4.There is a waterproof trough on the back, so we can wash the whole body directly with water.

Model
LD-GD250
Speed
30-45 bags/min
Accuracy
± 1.5%
Bag width
80-250mm
Bag height
100-280mm
Max packaging capacity
1-5kg
Power
3.8kw
Gas consumption
0.6m3/min
Air pressure value
0.6MPa
Weight
1200kg
Size(mm)
3500*1000*1390

After receiving your inquiry,We will send you the quotation as soon as possible.
