Application:
Suitable for packing all kinds of liquid, fluid, and paste material, such as ketchup, mayonnaise, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, daily necessities, medicine, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material
Packaging machine:

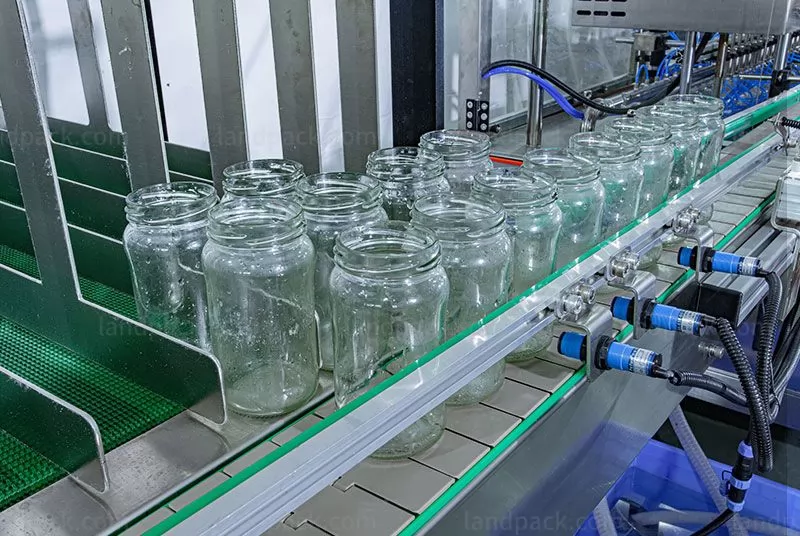

1. 14 Heads Empty Bottle Washing Machine: Washes and air-dries bottles.

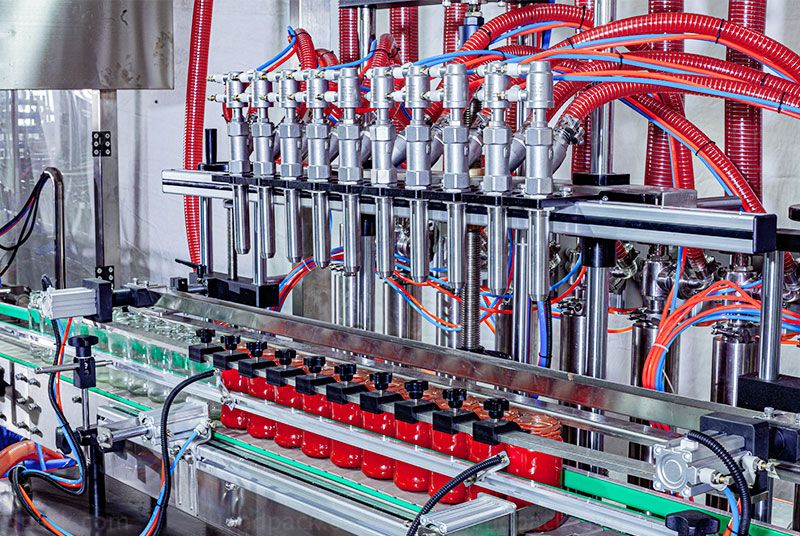

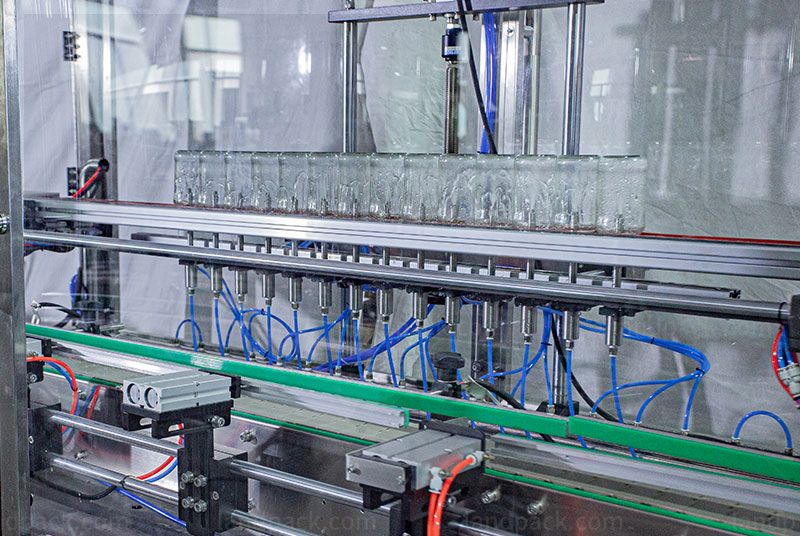

2. 10 Heads Piston Pump Filling Machine: Provides high accuracy in filling.
3. Double 4 Wheels Capping Machine: Increases capping speed.
4. Customized S-shaped Conveyor Belt and Bottle Turners: Tailored to meet specific customer needs.

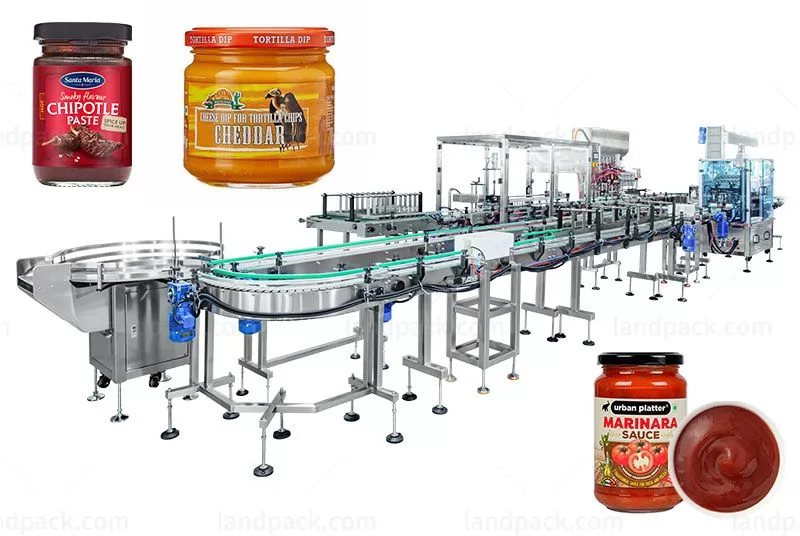

Composition structure:
1. Bottle feeder
2. 14 heads Empty bottle washing machine
3. 10 Heads piston pump filling machine
4. Double 4 wheels capping machine
5. Bottle turner tunnel
6. Customized S shape conveyor belt
7. Collecting platform
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml | |||
| Filling Speed | 15-25 bottles/min | 20-35 bottles/min | 30-40 bottles/min | 40-50 bottles/min |
| Measurement Accuracy | ±1% | |||
| Power | 220V, 50HZ, 2KW | 220V, 50HZ, 2.5KW | 220V, 50HZ, 3.5KW | 220V, 50HZ, 5KW |
| Working Pressure | 0.6mpa-0.8mpa | |||
| Weight | 600kg | 650kg | 800kg | 800kg |
| Size | L4000*W1320*H2090(mm) | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
