Application:

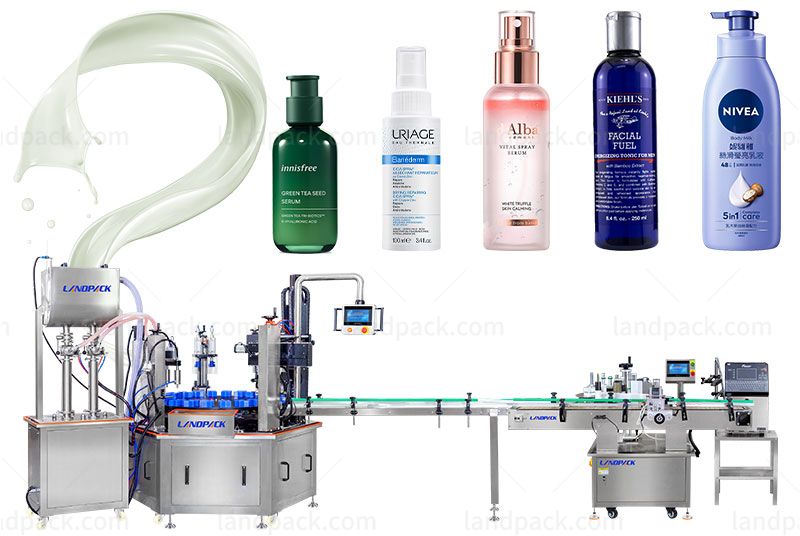

High-Efficiency Liquid Cream Bottle Filling And Capping Machine is used for packaging food and beverages, water, juice, cans, daily necessities, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

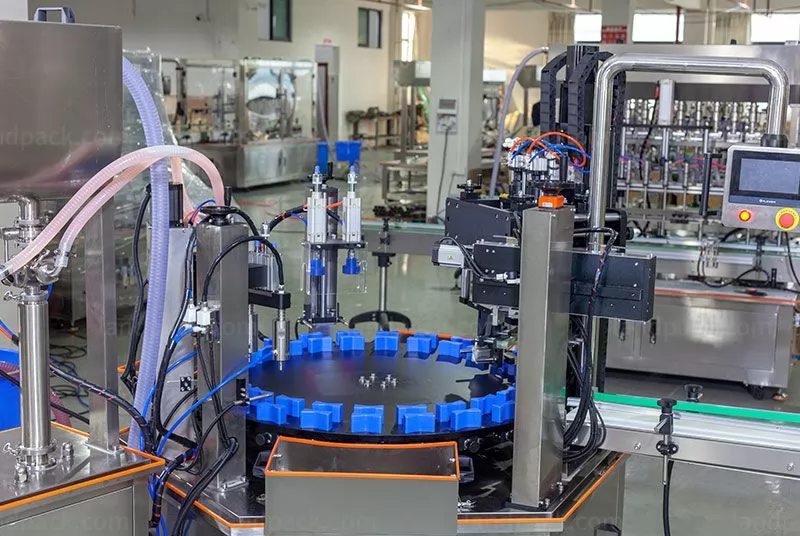

1. Automatic air cleaning- filling- inner cap inserting- capping.
2. Air cleaning system: cleaning dust and impurities.
3. Filling system: Servo motor control, rotary vale filling. High filling accuracy, suitable filling high foam liquid, can
self-suck when filling water type liquid.
4. The hopper is with liquid level detection system. Simple operation and adjust
5. Adjustable molds: suitable for different sizes of bottles

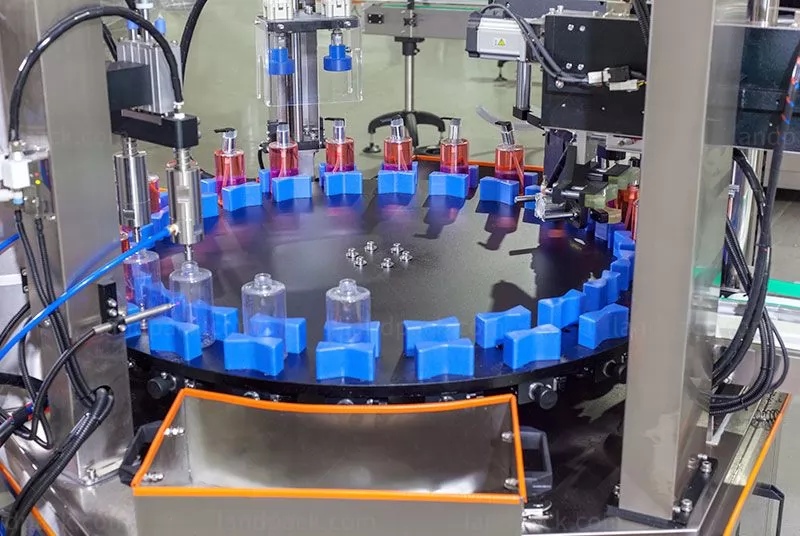

6. Screw filling system: suitable for any of the screw caps. The cap contacting material is soft silicone, this material won’t scrap cap
7. Anyone can skillfully operate without training
8.Five Servo Motor Controlling High Efficicency
| Model | LD-ALF01 |
| Filling Range | 50-1000ml(Customizable) |
| Filling Speed | 15-50 bottles/min |
| Measurement accuracy | ±1% |
| Power | 2 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 500kg |
| Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
