Application:
Suitable for all kinds of liquid materials such as fluid milk, water, honey, juice, tomato paste, ketchup, sauce, oil, etc. There are various bag types: E.G. back-sealing bags, 3-side seal bags, 4-side seal bags, stick bags, linking bags, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Versatile Machine Design: Suitable for varying bag lengths.
2. Stable and High-Speed Operation: Ensures efficient and rapid production.
3. High-Accuracy Small Bag Packaging: Delivers precise packaging for small bags.
4. Four-Side Sealing: Produces bags with four-side sealing for enhanced protection.
Workflow:

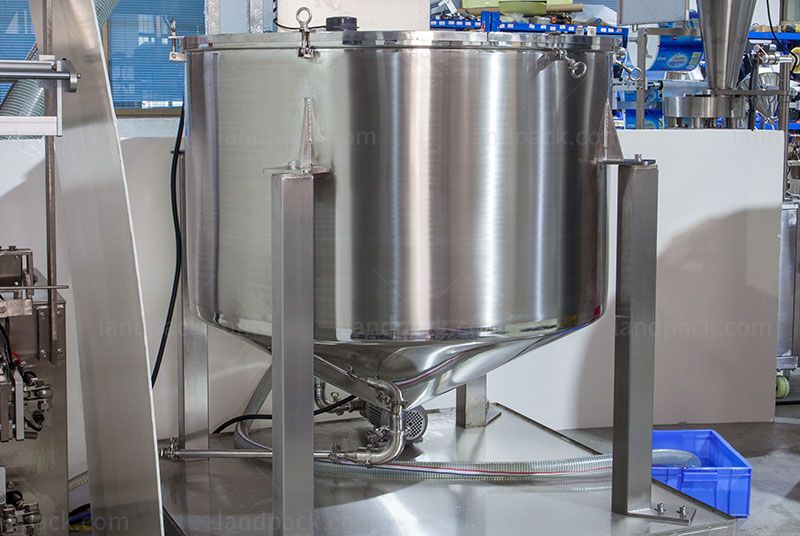

1. Tank stirring
2. Metering
3. Form the bag by roll film
4. Filling
5. Finish product output
Model | LD-320 | LD-520 | LD-720 | LD-900 |
Film width | Max.320mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 50-200mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 50-150mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 35-70 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 50-500 ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V 50/60Hz 2kw | 220V 50/60Hz 3kw | 220V 50/60Hz 3kw | 220V 50/60Hz 4.5kw |
Machine size(LxWxH) | 970*680*1950 mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 300kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
