Application:
Ideal for both standard and high-viscosity liquids, this machine is suitable for products like chili sauce, ginger garlic paste, ketchup, peanut butter, shampoo, creams, jam, milk, and juice. Designed for efficient, precise filling across a variety of liquid and semi-liquid products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Automatic Metering and Filling: Ensures precise and consistent filling to improve efficiency.
2. Horizontal Mixing Bucket: Provides more uniform mixing, resulting in a consistent blend of ingredients.
3. Customized Leak-Proof Valve: Specially designed to prevent drips and leakage, keeping the workspace clean.
4. Piston Metering: Accommodates products with seeds or small particles, ensuring smooth and uninterrupted packaging.
Workflow:
1. Automatic feeding
2. Mixing and heating
3. Date printing
4. Filling

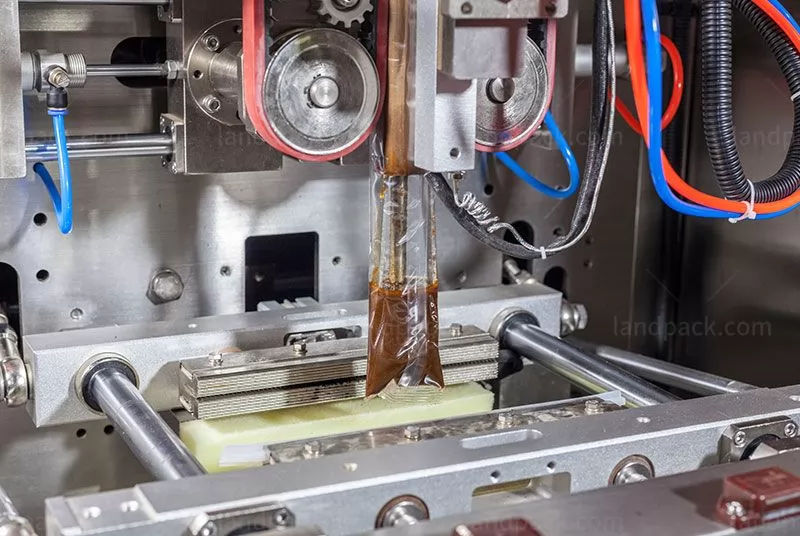

5. Sealing
Model | LD-420L | LD-520L | LD-620L | LD-720L |
Film width | Max.420mm | Max.520mm | 150-Max.620mm | 150-Max.720mm |
Bag length | 80-300mm | 60-400mm | 60-450mm | 60-500mm |
Bag width | 60-200mm | 100-250mm | 65-300mm | 65-350mm |
Film roll diameter | Max.600mm | Max.600mm | Max.600mm | Max.600mm |
Packaging rate | 5-60 bags/min | 5-40 bags/min | 5-35 bags/min | 5-30 bags/min |
Range of measurement | 1000ml | 2000ml | 3000ml | 5000ml |
Film thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3.2kw | 220V, 50/60Hz, 3.5kw |
Machine size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1488*1180*1550mm | 1780*1350*2050mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
