Advantage:

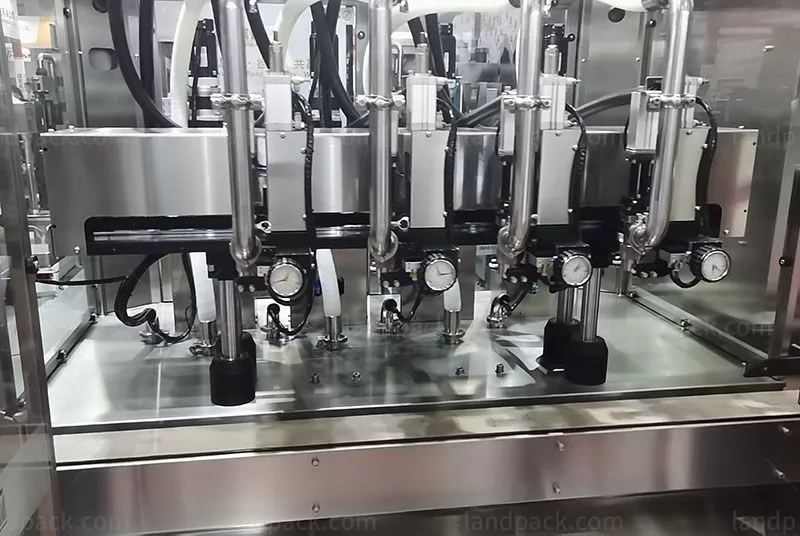

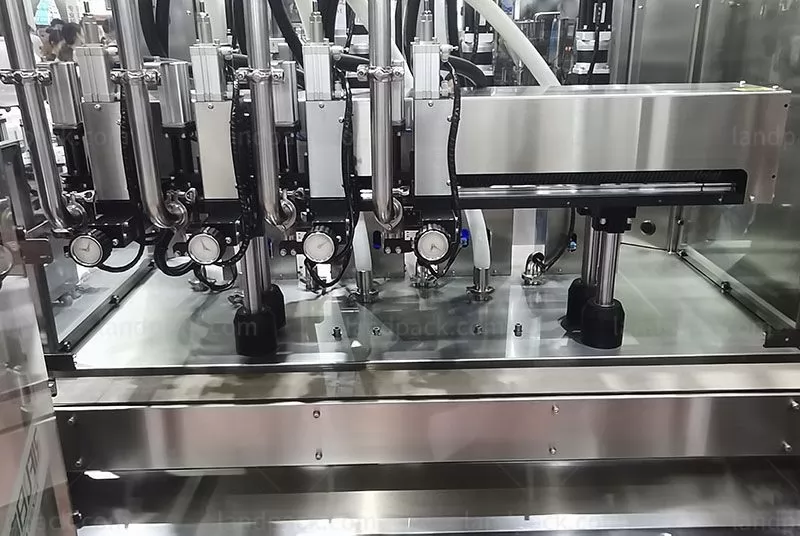

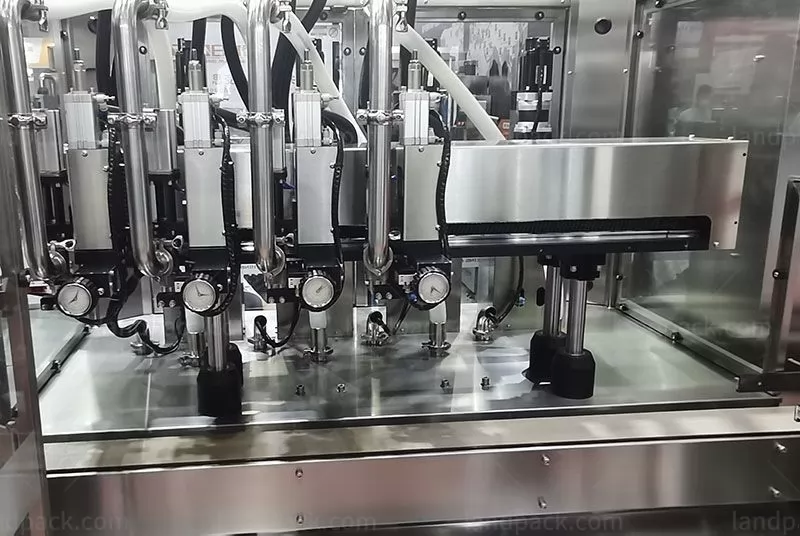

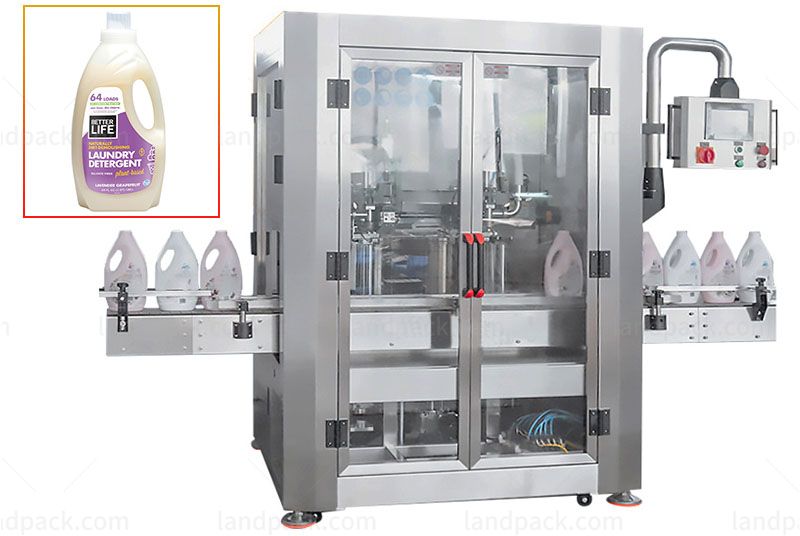

Follow-up high-speed double-head filling machine ,operated by chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo following system, electric lifting adjustment mechanism, waterproof electric cabinet, touch-type man-machine Interface, etc.
Application:
Can be used for automatic filling equipment of bottles of different specifications.This filling machine widely used in filling viscous liquids, such as edible oil, laundry detergent, engine oil, lubricating oil, honey,cream,shampoo,daily chemicals and other liquid products.
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examber:
Simple structure in linear type ,easy to operate and clean.
Piston filling method, follow-up high-speed filling machine, using sensors to accurately find bottles, follow-up filling, no bottle stop in the production process
Filling heads and speed can be customized.
If you need to replace bottles of different shapes, different heights, and different capacities, it only takes a few minutes to complete the debugging
It can be connected with capping labeling machine production line.
No bottle no filling.
| Model | LD-LFG-04 |
| Filling head | 4 Heads |
| Piston cylinder | 8 cylinders |
| Metering way | Piston filling |
| Driven motor | frequency conversion |
| Filling range | 50-1000ml(can be customized) |
| Filling speed | 35-45BPM(it depends on filling material and volume) |
| Machine body | SS 304 |
| Machine voltage | 220V(can be customized) |
| Machine weight | 400kg |
| Machine size(L*W*H) | 2000*1000*1900mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
