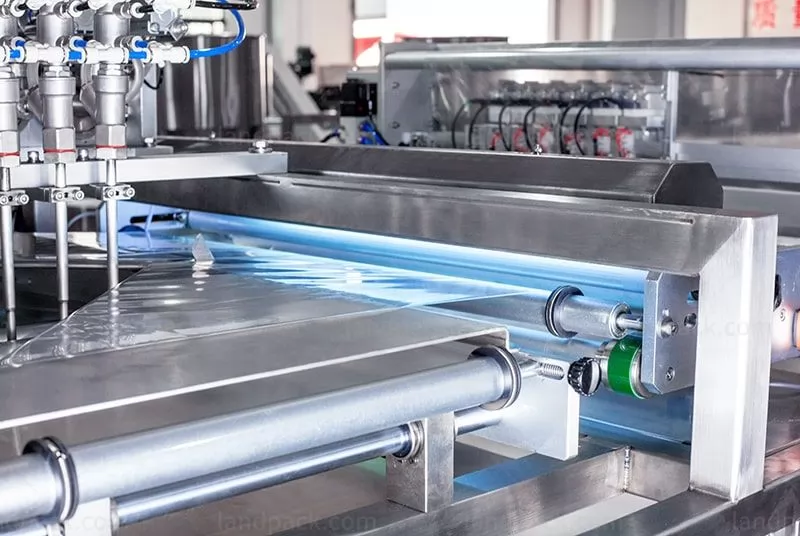

Application:

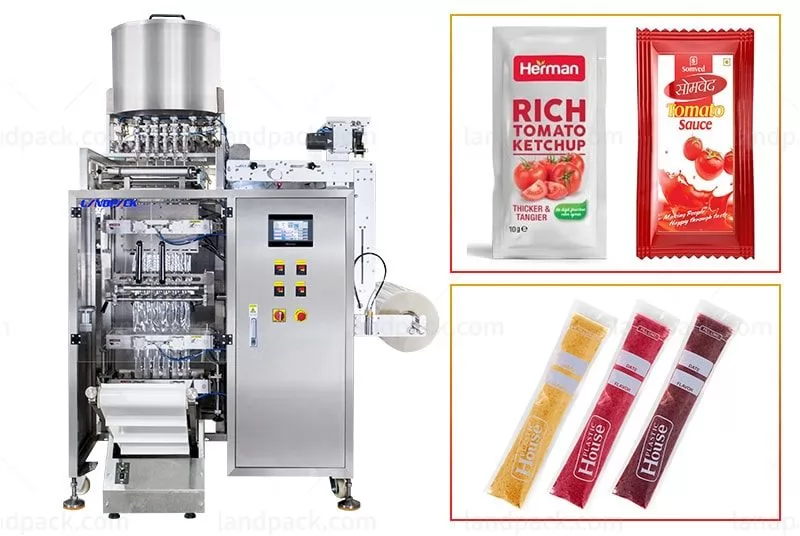

Multi track liquid sachet packing machine with uv sterilization, suitable for many kinds of liquid products, such as popsicle, milk, shampoo, ketchup, honey, sauce, oil, chili sauce, paste, ice candy, coffee liquid etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

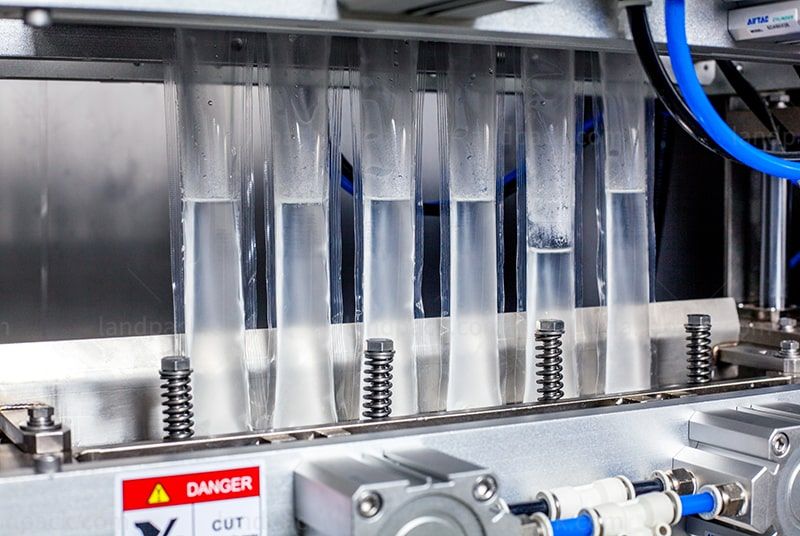

Multi lanes machine can produce multi lanes bags at same time.

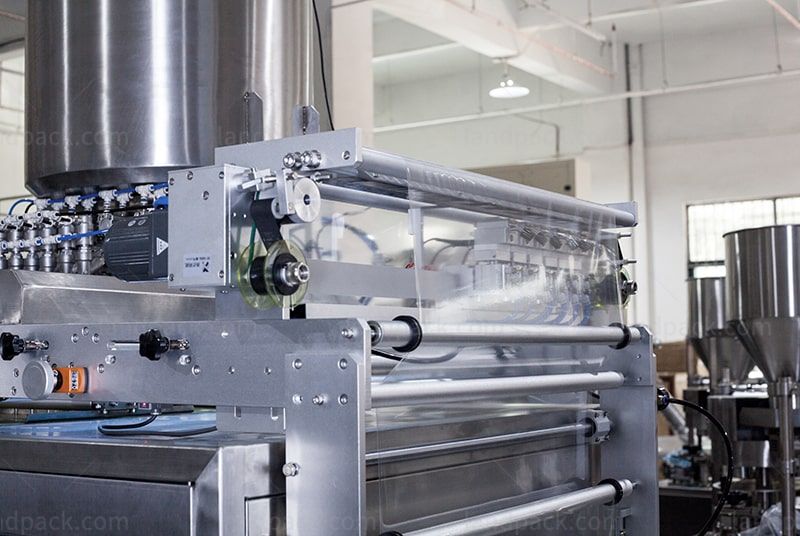

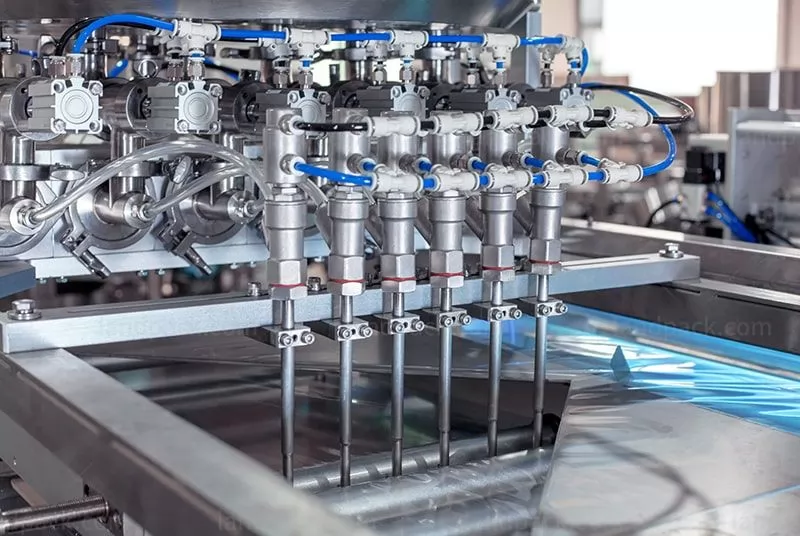

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
PLC controller, high function and control the whole machine’s work steps.
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
