Application:
Suitable for counting packing kinds of liquid products, such as shampoo, ketchup, shower gel, fruit juice, honey, mouthwash, sauce, jam, jelly, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

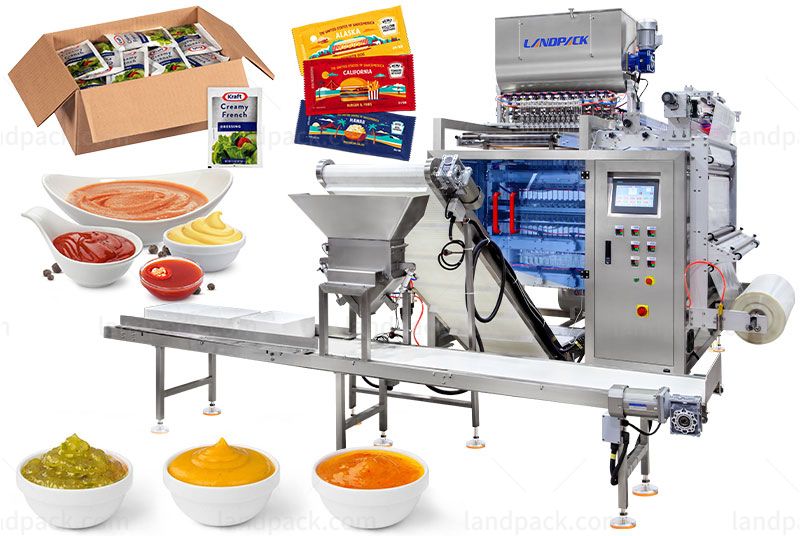

1. The machine’s control system uses a PLC with an easy-to-use interface for operators.
2. The servo motor ensures accurate control of the metering pump, crucial for precise liquid measurements.
3. The machine can fill 12 lanes simultaneously, boosting production capacity.
4. High-speed photoelectric sensor ensures precise bag counting.
Workflow:
1. Air shaft loading roll film width 1200mm
2. UV sterilization

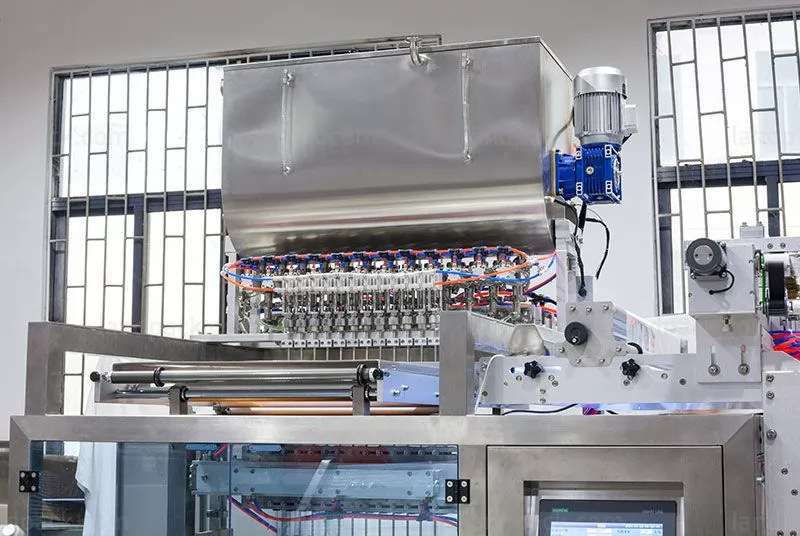

3. Piston pump metering servo motor control

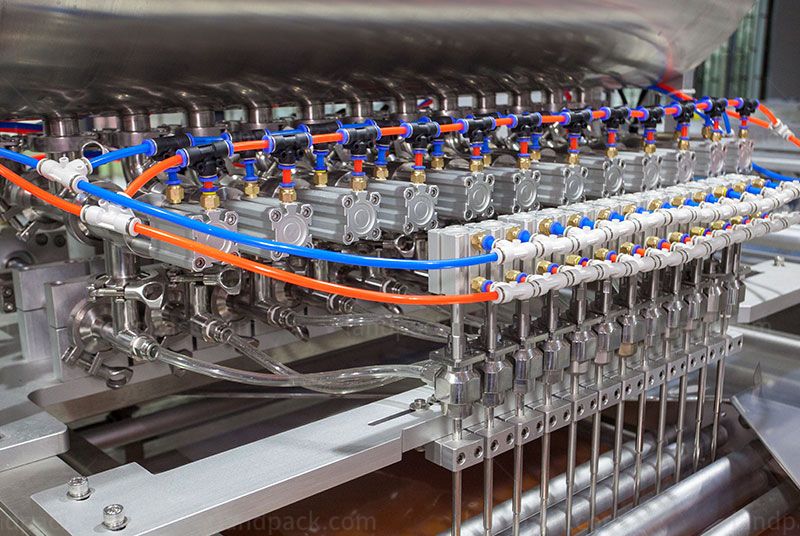

4. 12 Lanes filling device
5. Cylinder control cutting film

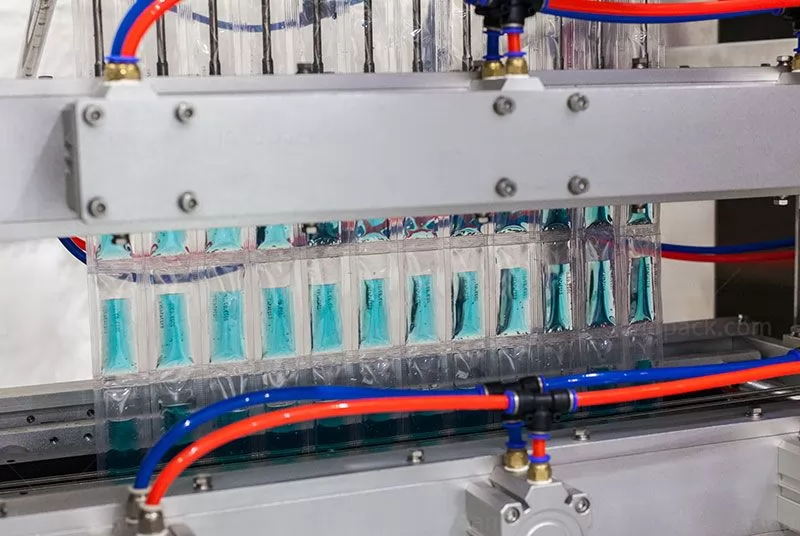

6. Automatically counting sachet into box
7. Photoelectric Sensor detect no carton no feeding
8. Ribbon date printer
9. Multi rollers system runs film smoothly and stably
| Model | LDFS-1200L |
Production capacity | Max. 480 bags/min |
Diameter of film roll | Maximum 300mm |
Packaging film width | The widest 1200 mm |
outer bag size | The longest 120mm widest 120mm product packaging |
Air pressure | 0.5-0.7Mpa |
Machine noise | Less than 80db(A)decibel |
Heating power | 5.5 Kw |
Total weight of the machine | 500KG |
Machine size | 1415mm*1686mm*2130mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
