Application:
This bottle filling line can be tailored to accommodate a wide range of liquid products, including liquid soap, shower gel, shampoo, laundry detergent, mayonnaise, yogurt, ketchup, butter, paste, fabric softener, dishwashing liquid, and more. It offers flexibility to handle various types of liquid formulations with ease.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1.Linear Machine Design: This machine is engineered to accommodate various bottle types with ease, and can be quickly adjusted to handle different bottle sizes.
2.Touch Screen & PLC Control: The entire system is operated via a user-friendly touch screen interface, integrated with a PLC (Programmable Logic Controller) for precise control.
3.Dual Washing Options: Offers both water and air washing methods, making it suitable for cleaning glass and plastic bottles effectively.

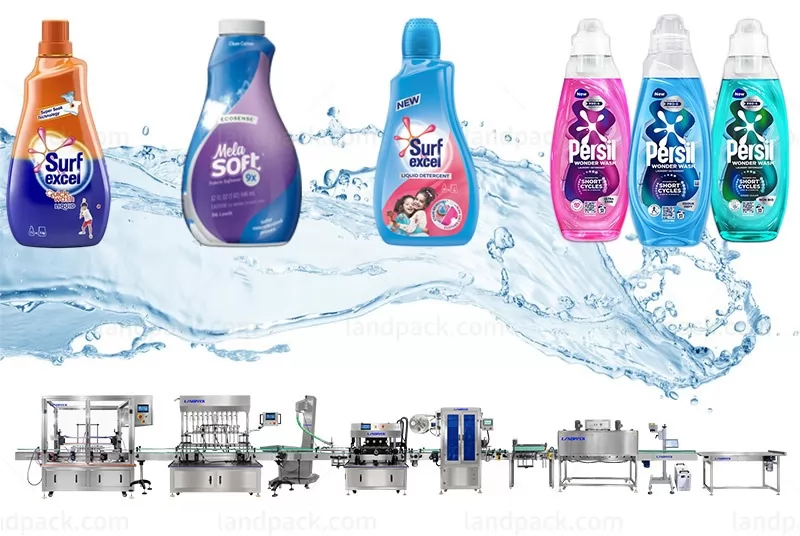

Workflow:
1. Flip-type washing machine

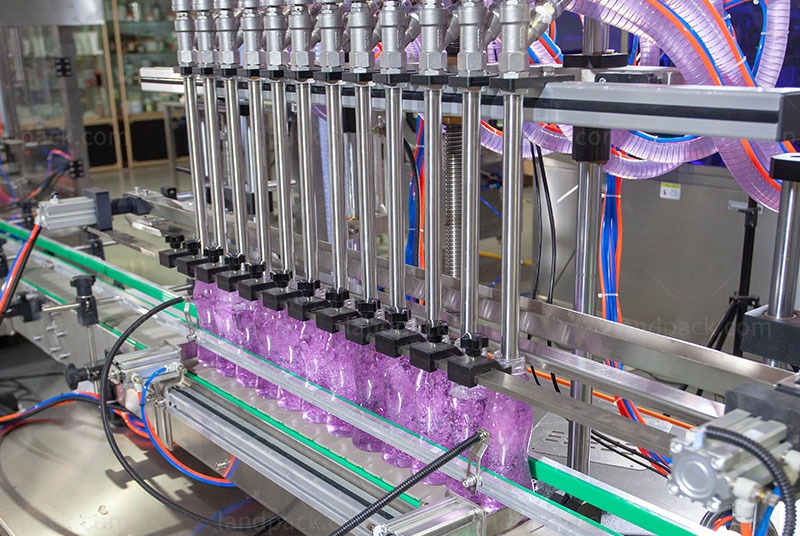

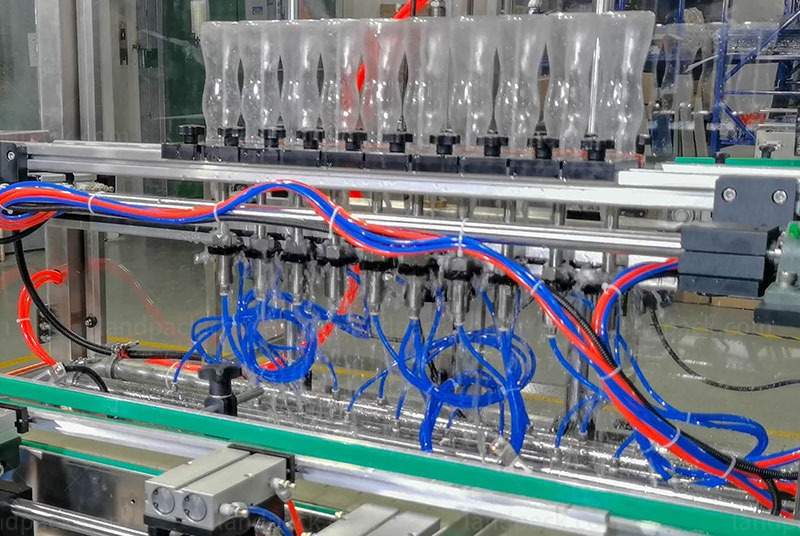

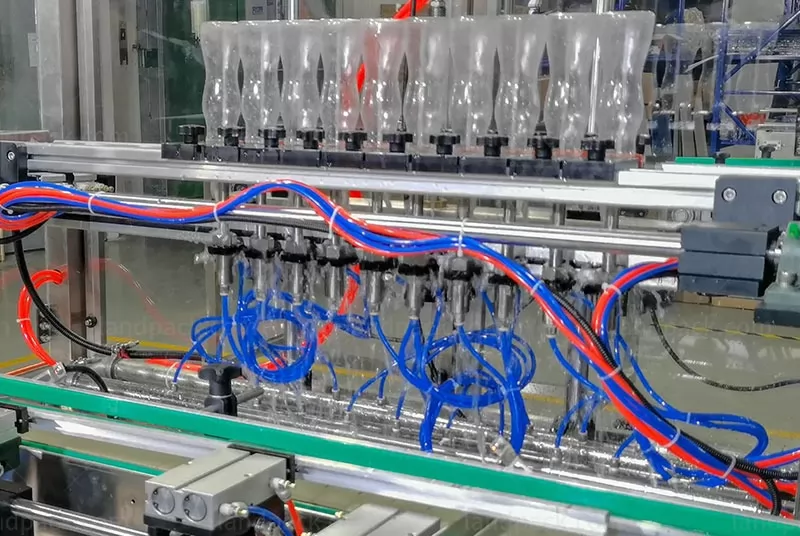

2. Gravity filling machine

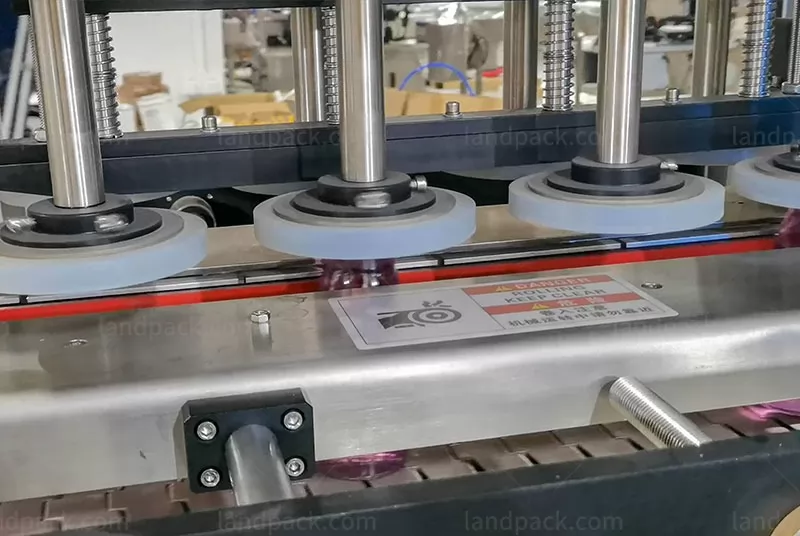

3. High-speed screw capping machine
4. Automatic labeling sleeve shrinking machine
5. Laser printing machine
6. Collecting table
| Model | LD-ALF01 |
| Filling Range | 50-1000ml(Customizable) |
| Filling Speed | 15-50 bottles/min |
| Measurement accuracy | ±1% |
| Power | 2 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 600kg |
| Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
