Application:

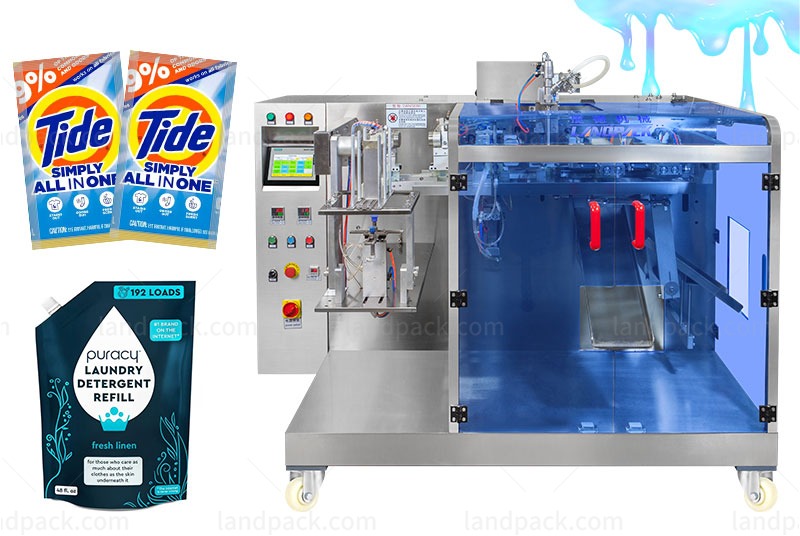

This machine is suitable for doypack bag packaging of liquids, such as liquid soap,skin care, soy sauce, chili sauce, honey, ketchup, tartar, liquid butter, juice, milk, etc. As a multi-functional packaging machine, it supports a variety of pouch types. Such as: stand up pouch, spout pouch, zipper pouch, flat bottom pouch.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Equipped with Siemens PLC for intelligent control, ensuring easy operation.
Designed to meet the needs of both entry-level and mid-tier customers, with a speed range of 15-30 bags per minute.
The gear pump ensures precise filling measurements, with all contact parts made of SS316 for superior material compatibility.
The machine features a fully stainless steel frame (SS304), offering high hygiene standards and easy cleaning.
Fitted with an anti-leak filling nozzle design to prevent spills and maintain a clean working environment.
Utilizes a double heat-sealing process for secure and tight seals, ensuring better product preservation.
Workflow:

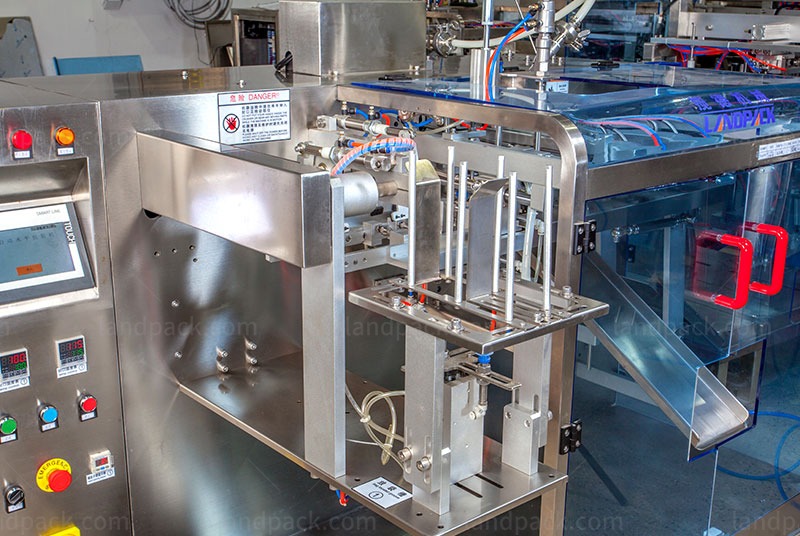

1. Bag Giving

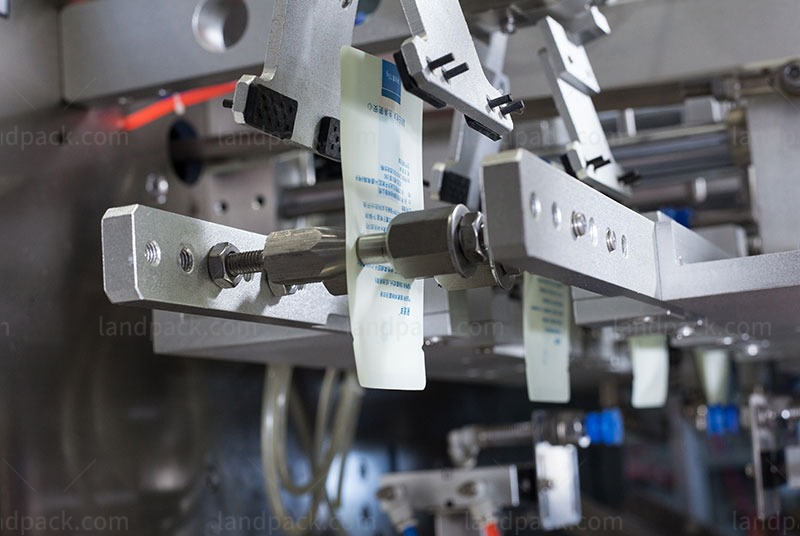

2. Open Bag
3. Gear Pump For measuing the filling range

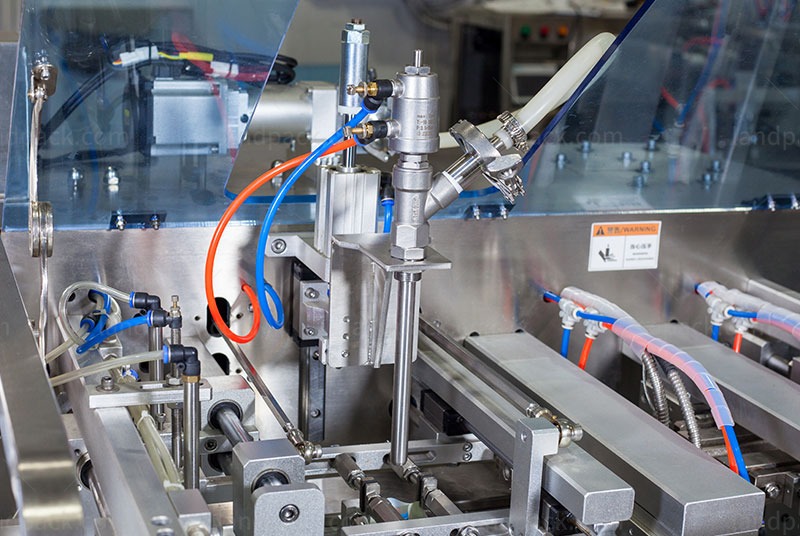

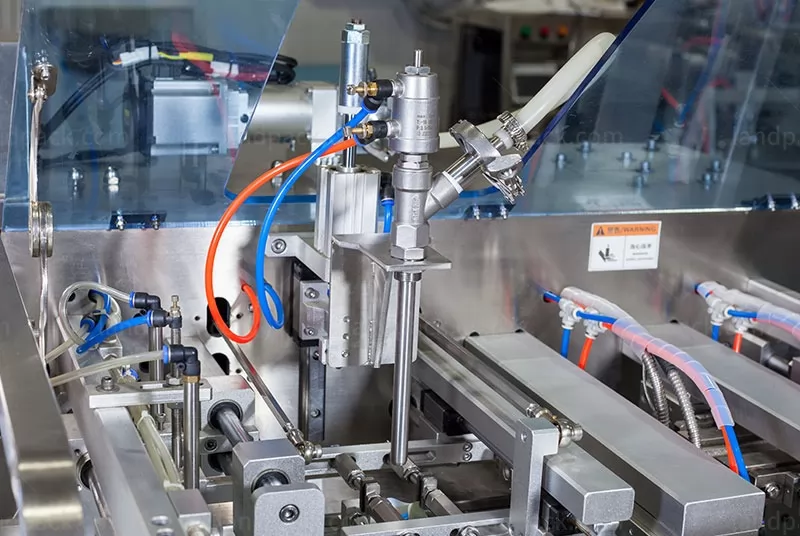

4. Filling Nozzle with anti leak design
5. Double Sealing
6. Stampe Code
7. Finished bag Output
Model | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
Pouch Size (mm) | 110-230mm(L); 80-160mm(W) | 70-100mm(L); 110-230mm(W) | 70-100mm(L); 110-230mm(W) | 100-260mm(L); 110-320mm(W) |
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
Packing Speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
Power | 2 KW | 2 KW | 2 KW | 2 KW |
Workflow | 1. Giving bag; 2. Pick up the bag(coding); 3. Open the bag up and down; 4. Fill; 5. Heating sealing; 6. Output of product | |||
Machine Size | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | ||
Collocation | Screw metering, screw elevator | |||
Machine Weight | 800 kg | 800 kg | 900 kg | 1000 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
