Application:
The machine is suitable for packaging powdered materials into m shape pouch, such as milk powder, cocoa powder, wheat flour, tapioca powder, coffee powder, curry powder, chili powder, seasoning powder, protein powder, tea powder, soy powder, lubricating powder, soda Powder, baking powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

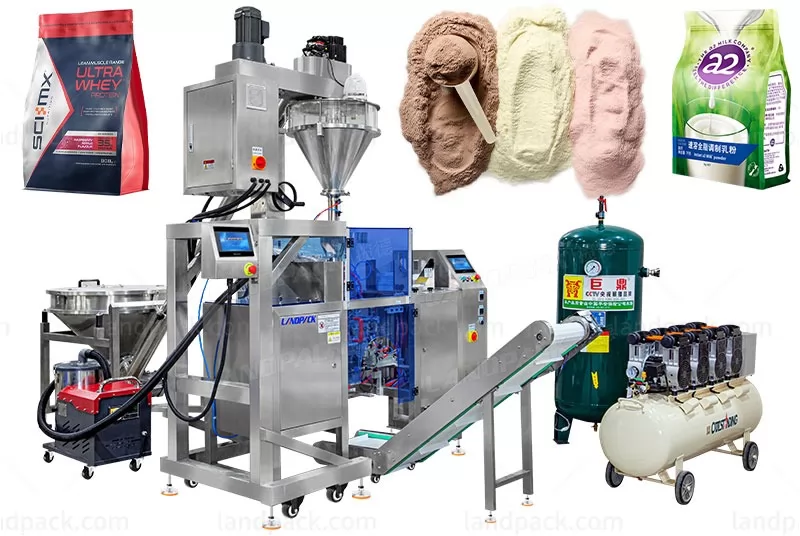

1. Protein powder Mini Doypack Machine to automate your process and boost production.
2. Compactly designed Mini powder doypack machine.

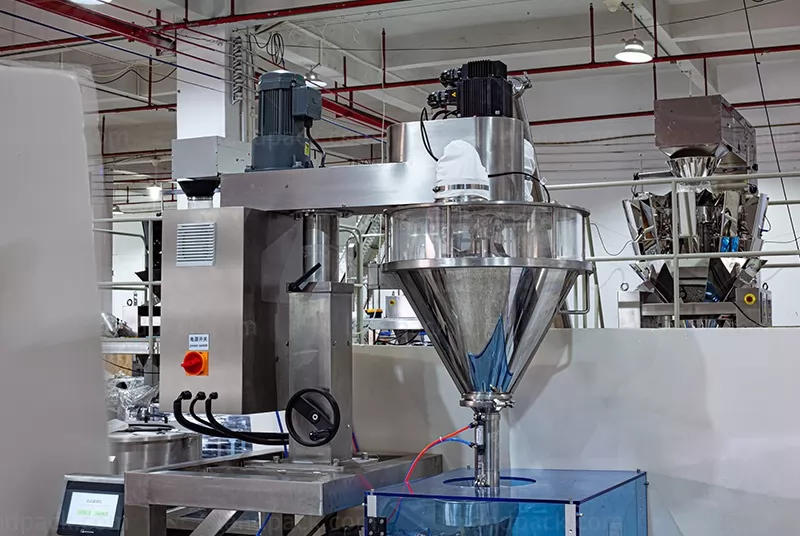

3. 50L screw metering system for accurate measurement.
4. Auger feeder transports powder to the screw metering system.

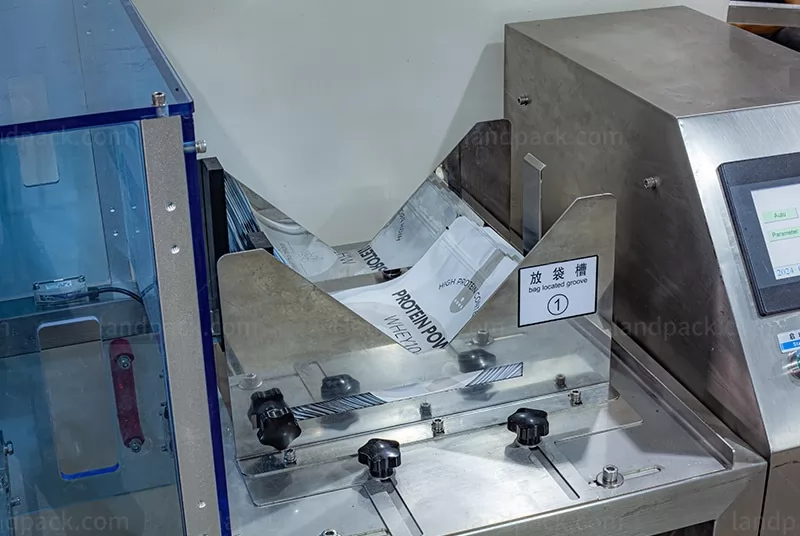

5. Bag Magazine for pre-made pouch packaging.
6. Dust removal system to collect dust during filling.
7. Compressed air required for operation.
8. 7-inch touch screen for easy control.
Workflow:
1. Auger feeder to transport powder
2. Dust remover
3. Picking bags
4. Opening zipper
5. Filling powder into pouch & Sealing
Type | LDB-200 | LDB-300 | LDB-430 |
Bag Material | Multi-layer Composite Premade Bag (e.g.: PET/PE) | ||
Premade bag type | M Shape Pouch, Gusset Bag, Zipper Bag, etc | ||
Bag size | 70mm≤W≤150mm; 70mm≤L≤150mm | 80mm≤W<300mm; 100mm≤L≤300mm | 80mm≤W<300mm; 100mm≤L<430mm |
Speed | 0-60 bags/min | 0-15 bags/min | 0-15 bags/min |
Sealing Type | Straight grain, the pitch is 1mm (Optionalreticulate) | ||
Sealing Width | 10mm(5-20mm)can be customized | ||
Voltage | 220v, Single-phase, 50/60HZ, 1.2KW | ||
Air Pressure | 0.65Mpa | ||
Air Consumption | 0.3 m³/min(Standard machine,no additional function) | ||
Body Dimension | 1770*600*1230mm | 1770*600*1230mm | 1677*1140*1450mm |
Machine Weight | 300kgs | 350kgs | 450kgs |
After receiving your inquiry,We will send you the quotation as soon as possible.
