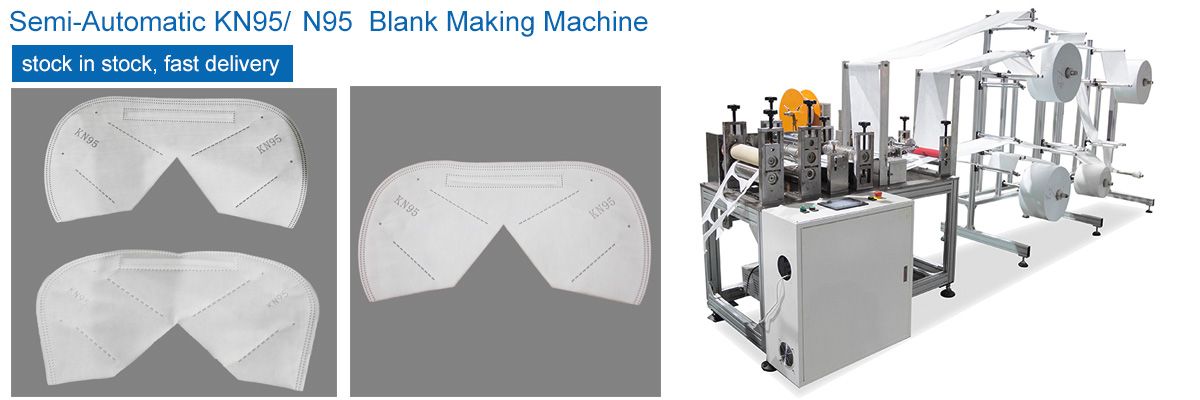

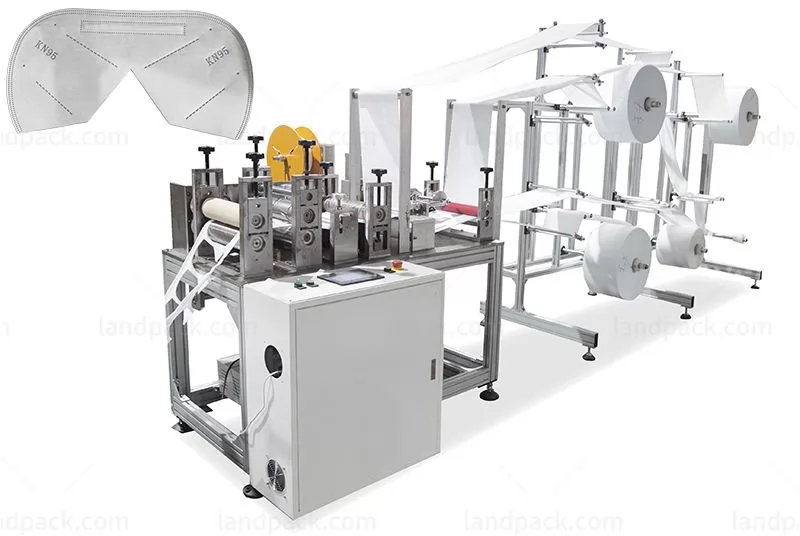

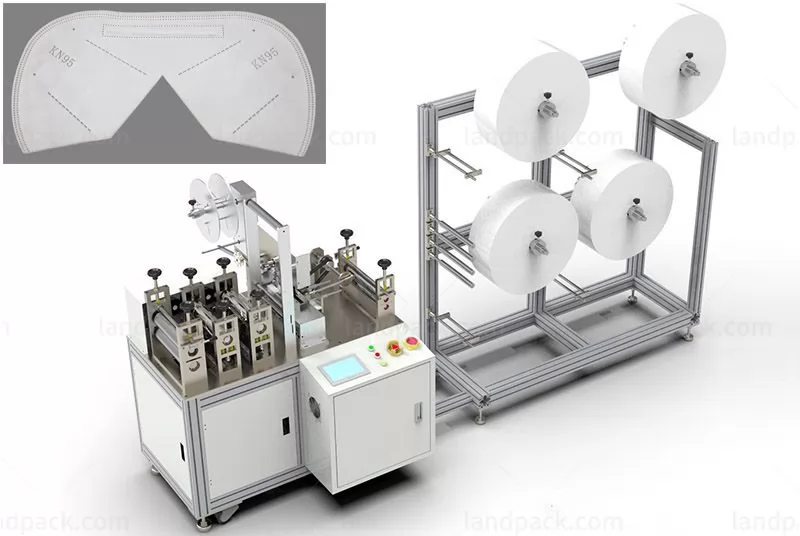

This machine is mainly used for the automatic forming of face masкs.

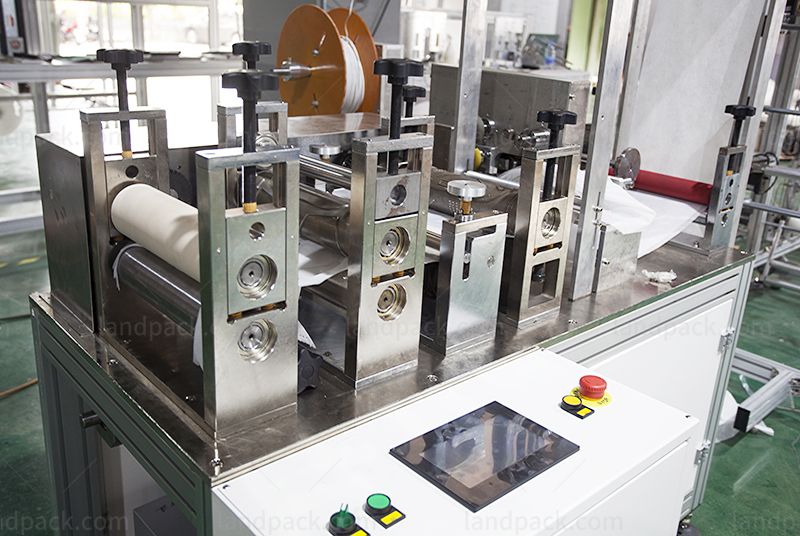

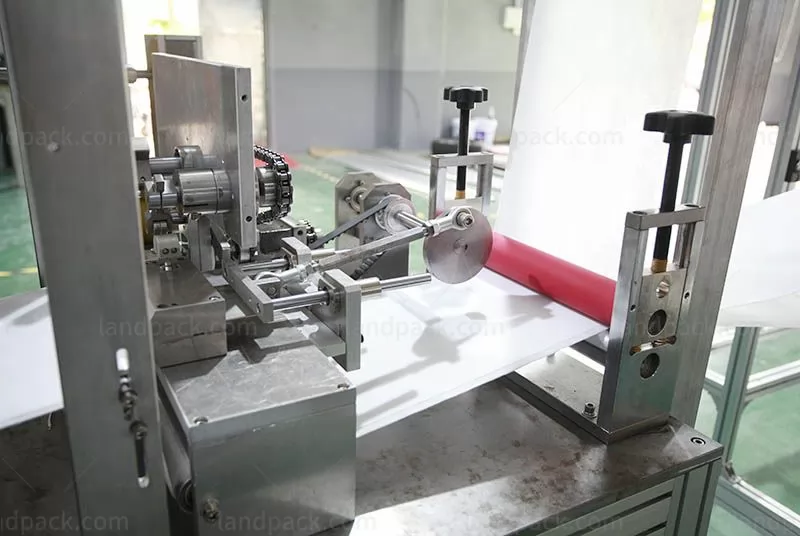

The entire roll of fabric is driven by rollers after unwinding. The fabric is automatic bending, hemming, the nose strip is cut automatic and then passed through the ultrasonic sealing fabric. The masк fabric with nose strip sealing parts will be cut and formed by a cutter. The whole process is automatically controlled. Only one person is required to operate this machine.

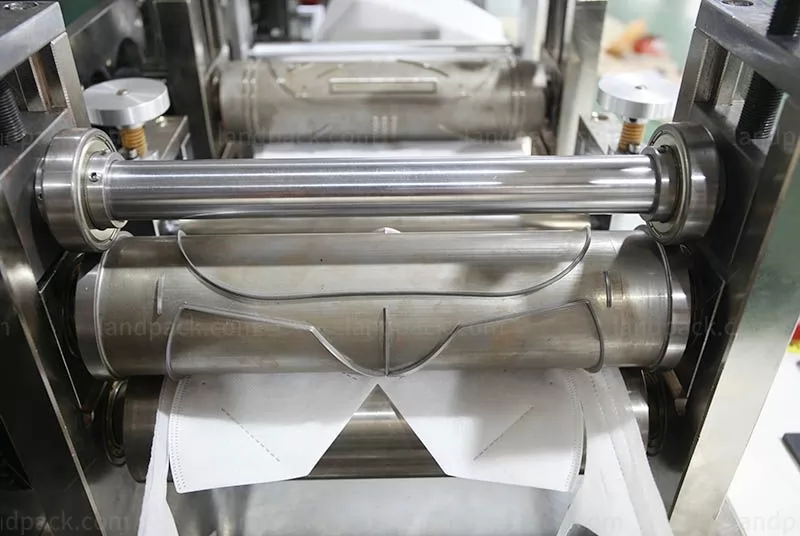

The scientific and reasonable mechanical transmission configuration makes this machine extremely efficient. The special welding wheel and cutter wheel design have good abrasion resistance and greatly increase the service life of the product.
Machine PLC control
The production capacity reaches 50-80 tablets per minute
The folding position can be adjusted, and the fold shape can be changed the guide device
The machine structure is all aluminum alloy
Can produce3~ 5 layers of non-woven Blank masк
Automatic function of nonwoven feeding, nose bridge inserting, pattern welding, ear loop welding, masк fabric forming & folding and masк shape cutting.
Adopting advanced brand components in pneumatic parts and electric parts, which ensure machine performance.

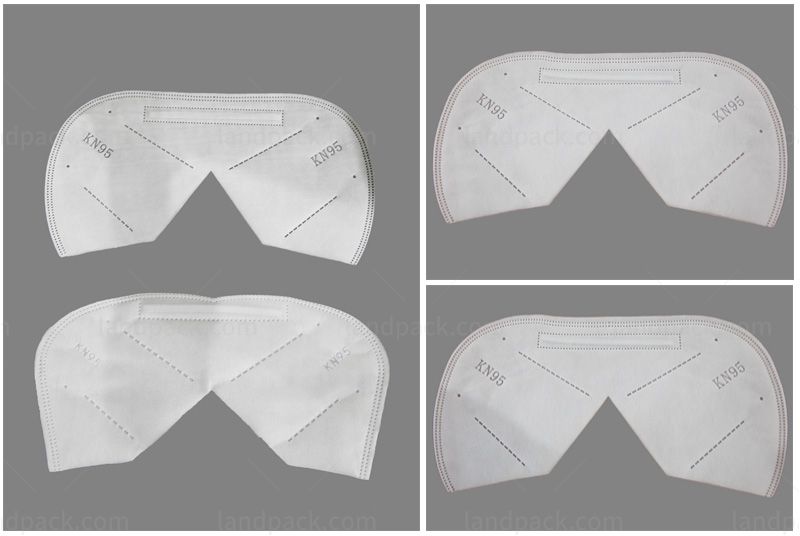

Masк shape can be customized per client's sample.
Simple structure in linear type ,easy in installation and maintainance.
Machine stable performance and constant operation is available with over 99% qualified masк output.
| Capacity | 50-80 pcs/min |
| PP nonwovens size | 260mm width * 40g; 600mm reel length |
| Cotton filter size | 260mm width * 25g; 600mm reel length |
| Melt-brown fabric size | 260mm width * 25g; 600mm reel length |
| Nonwoven size | 260mm width * 40g; 600mm reel length |
| Ear loop size | 3-5mm width |
| Nose bridge | Dual-core metal strip 5mm |
| Power supply | 220V 50/60Hz, 8.5KW |
| Air pressure | 0.6-0.8 MPA |
