Application:

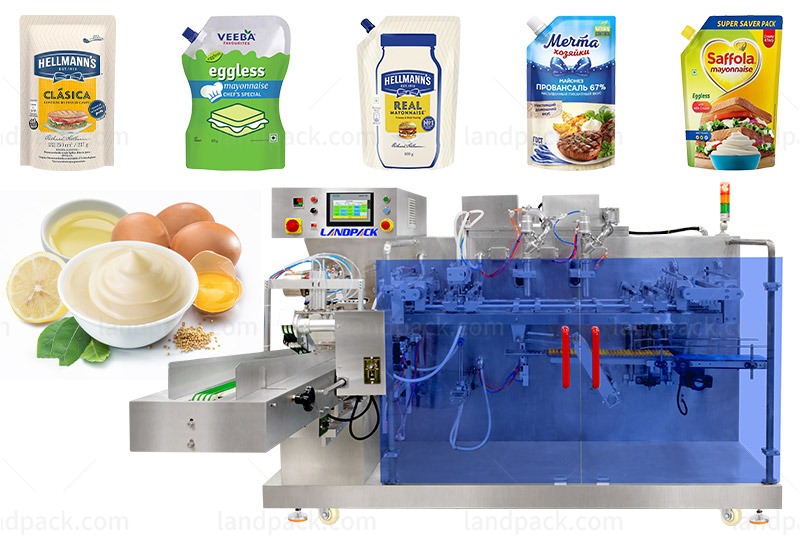

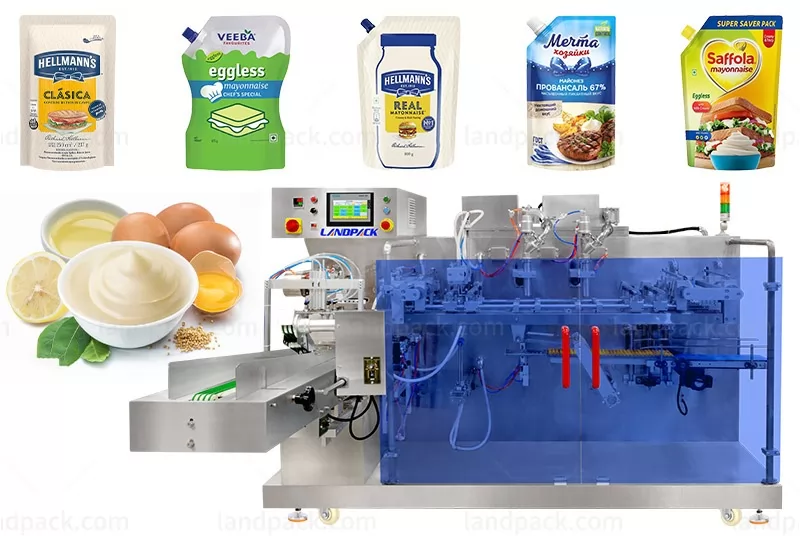

This automatic doypack packing machine is customized for differernt kinds of liquid products like mayonnaise, softener,gel, sauce, paste, jam, oil, juice, drinks, ect. metering, filling, sealing and packing into premade bags. (3 or 4 side seal bag,doypack bag, spout bag, irregular shape premade pouches, ect.)
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Multiple Machine Models Available – Supports a wide range of premade bag sizes.
2. Customizable Machine Structure – Compatible with various bag shapes, including doypack zipper bags, 4-side seal bags, stand-up bags, and irregular-shaped bags.

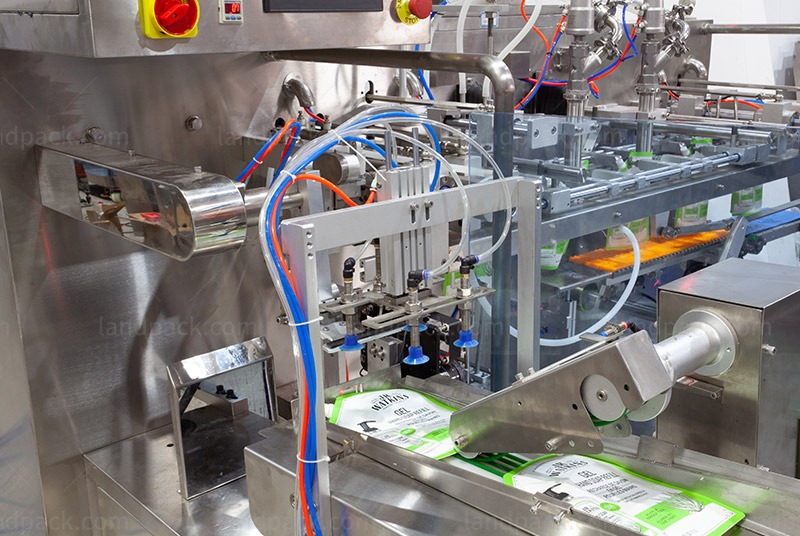

3. Upper & Lower Bag Opening Devices – Ensure complete bag opening for accurate and successful filling.
4. Upgraded PLC Control System – Allows easy operation and parameter setting via a touchscreen interface.

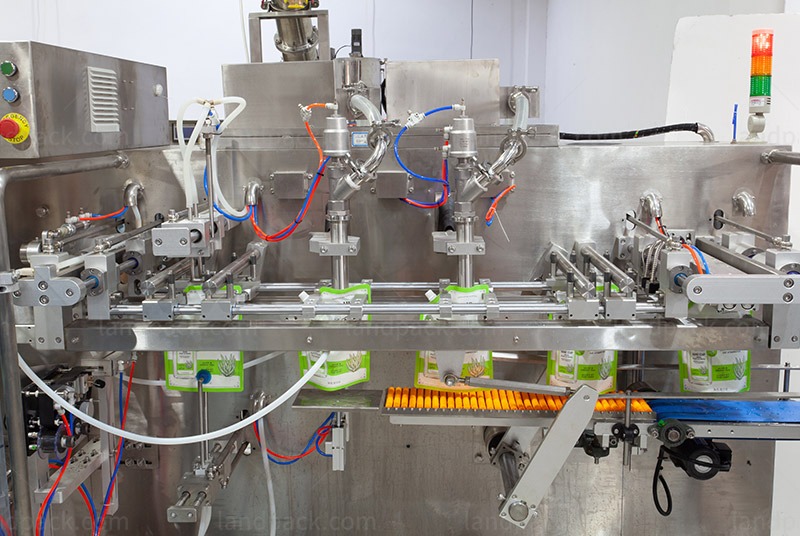

5. Dual Filling Nozzles – Fill simultaneously to achieve the target volume; each filling station is independently adjustable, reducing filling time and increasing packaging speed.
Workflow:
1. Horizontally bag giving
2. Automatic taking bag

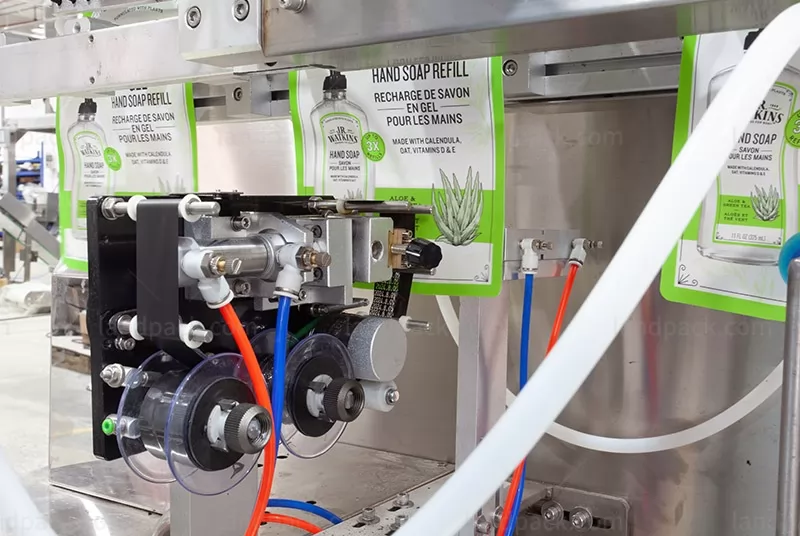

3. Ribbon code printing
4. Open bag up and down
5. Filling one
6. Filling two
7. Forming
8. Sealing
9. Output
| Model | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
| Pouch Size (mm) | 110-230mm(L); 80-160mm(W) | 70-100mm(L); 110-230mm(W) | 70-100mm(L); 110-230mm(W) | 100-260mm(L); 110-320mm(W) |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Power | 2 KW | 2 KW | 2 KW | 2 KW |
| Workflow | 1. Giving bag; 2. Pick up the bag(coding); 3. Open the bag up and down; 4. Fill; 5. Heating sealing; 6. Output of product | |||
| Machine Size | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | ||
| Collocation | Screw metering, screw elevator | |||
| Machine Weight | 800 kg | 800 kg | 900 kg | 1000 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
