Application:

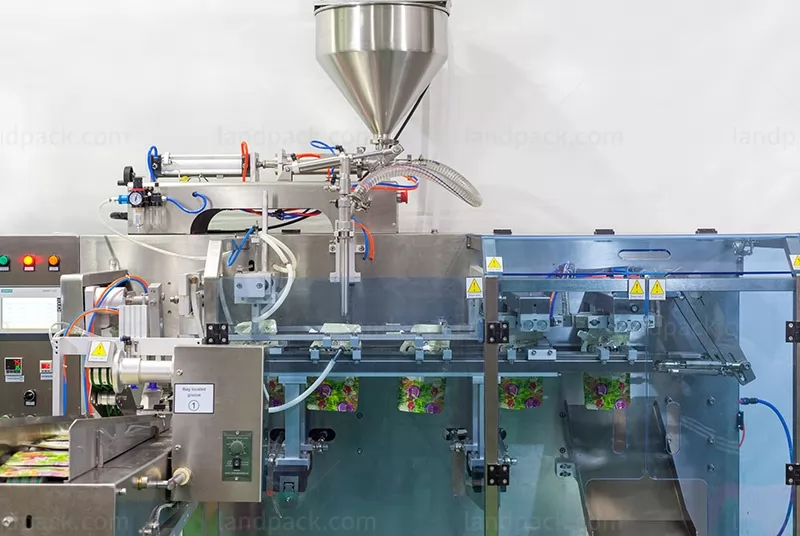

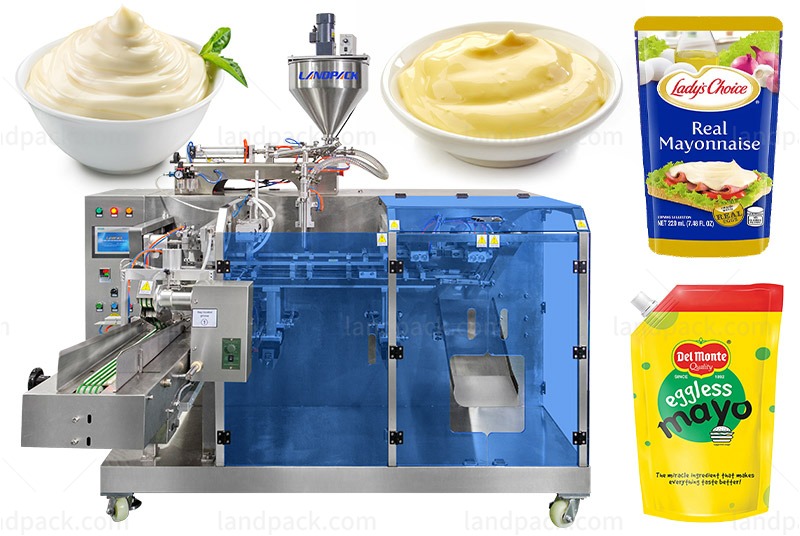

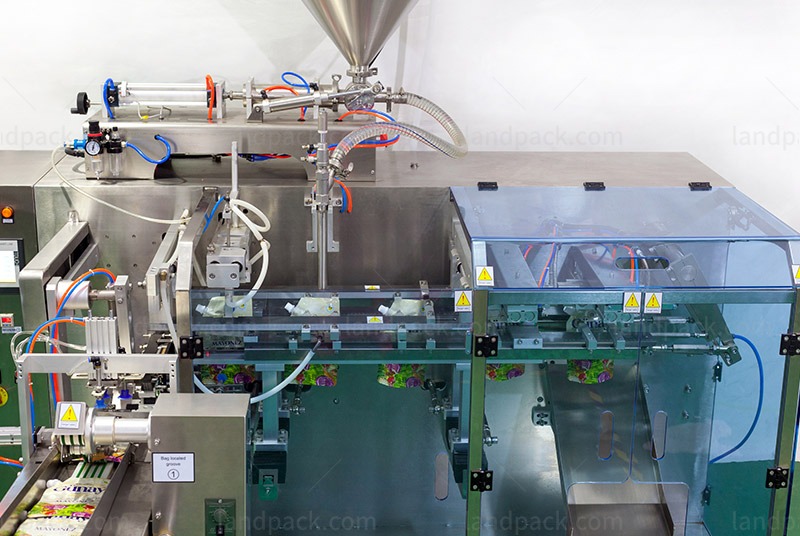

This liquid filling packing machine consists of the liquid pump and the doypack machine. It suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as mayonnaise, milk, oil, ketchup, paste, sauce, fruit juice, hand wash, laundry liquid, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

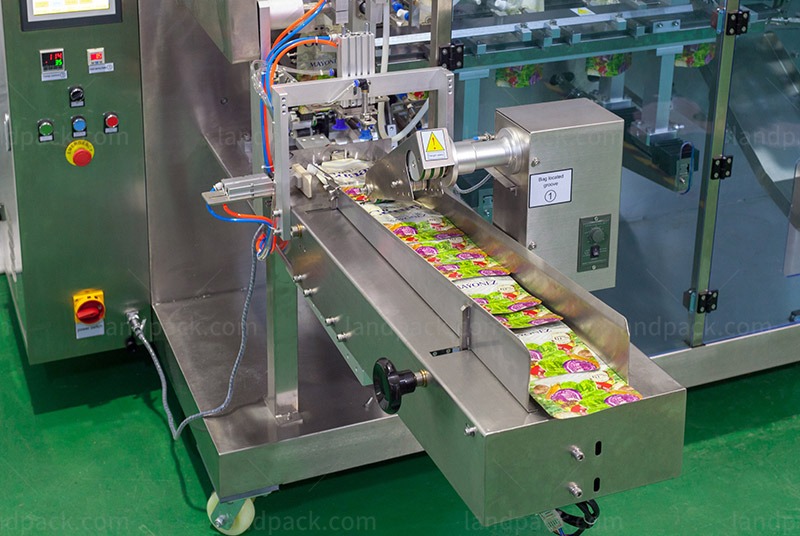

Fully Automated Process – Completes bag taking, opening, measuring, filling, vacuuming, and sealing.
User-Friendly Operation – Features PLC and color panel with fault indication for easy control.
Quick Adjustment – Adapts to different pouches in just 10 minutes.
Easy Maintenance – Innovative mechanical structure simplifies inspection and upkeep.
Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
Machine weight | 800KG | 800KG | 900KG | 1000KG |
Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
Collocation | Screw metering,screw elevator |
