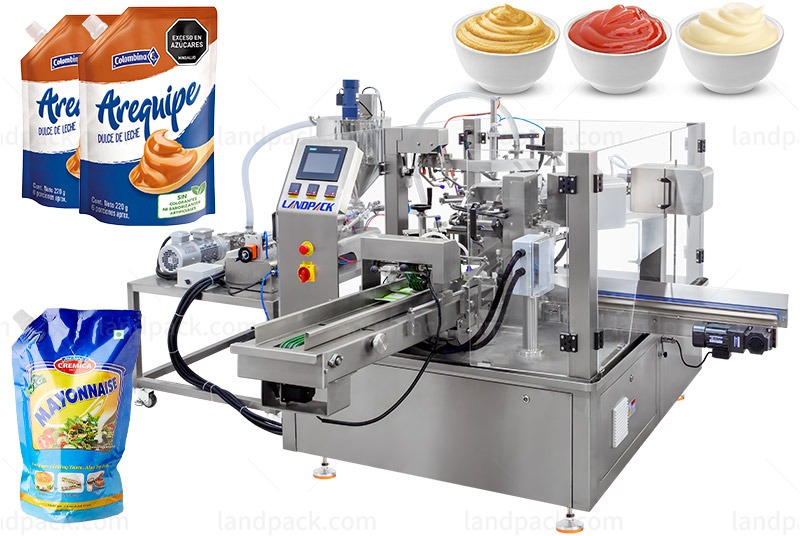

Application:
Landpack premade pouch packing machine is a versatile packaging solution widely employed in food industries such as sauce, mayonnaise, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, for efficiently filling and sealing premade pouches, spout pouch stand up with various products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Multiple Machine Models Available – Accommodates a wide range of premade bag sizes.
2. Customizable Machine Structure – Supports various bag shapes, including 4-side seal bags, doypack zipper bags, stand-up bags, M-shape gusset bags, corner spout bags, and irregular-shaped bags.

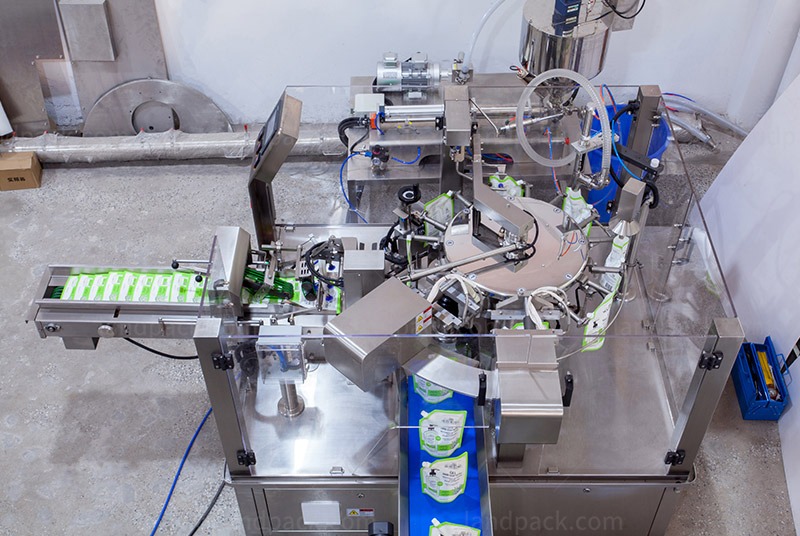

3. Eight-Station Automated Process – Handles bag pickup, opening, product filling, arranging, sealing, and output in a fully automated workflow.
4. Upgraded PLC & HMI Control System – Ensures easy operation and quick parameter adjustments.

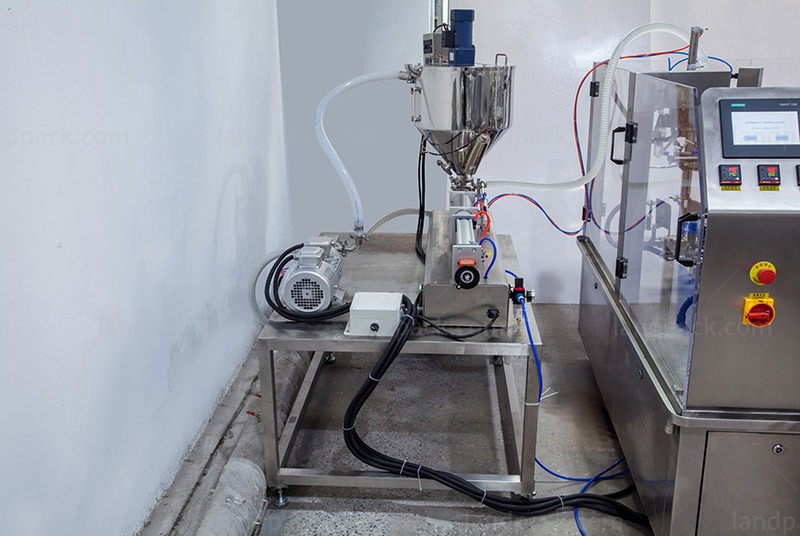

5. Versatile Multi-Function Machine – Compatible with different metering systems like weighing scales, liquid pumps, auger fillers, and bucket chains for precise auto-filling and packing of various products in premade pouches.
Workflow:

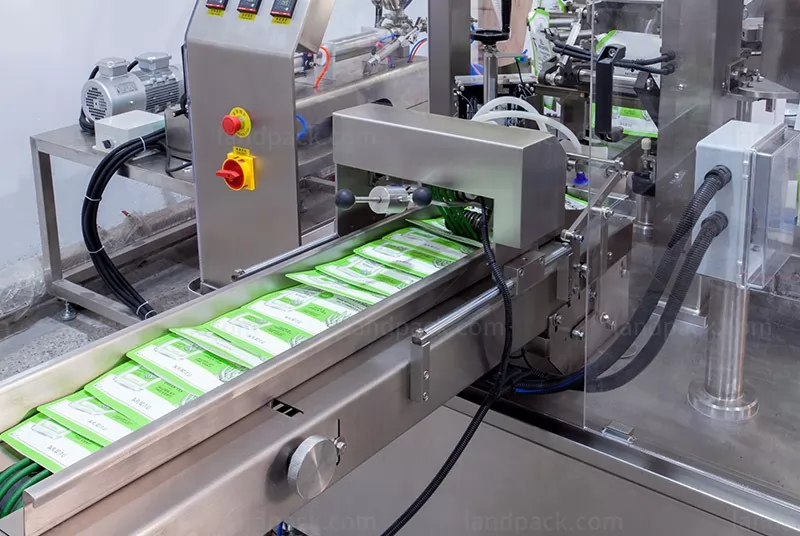

1. Horizontal bags feeding
2. Printing date & open the bag
3. Automatic filling
4. Blow
5. Tidy up the bag
6. Sealing the bag
7. Second sealing
8. Output for finished products
| Model | LD-8200/LD-8230/8300 |
| Packing material | spout bags, 3-side, four edge-sealing bags, self-reliance bags, handbags, zipper bags, compound bags, etc |
| Size | W: 100-300mm, L: 100-450mm |
| Filling range | 10-2500g (Depending on type of products) |
| Packing speed | 25-60 bags/min (speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900*1570*1700mm (L*W*H) |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
