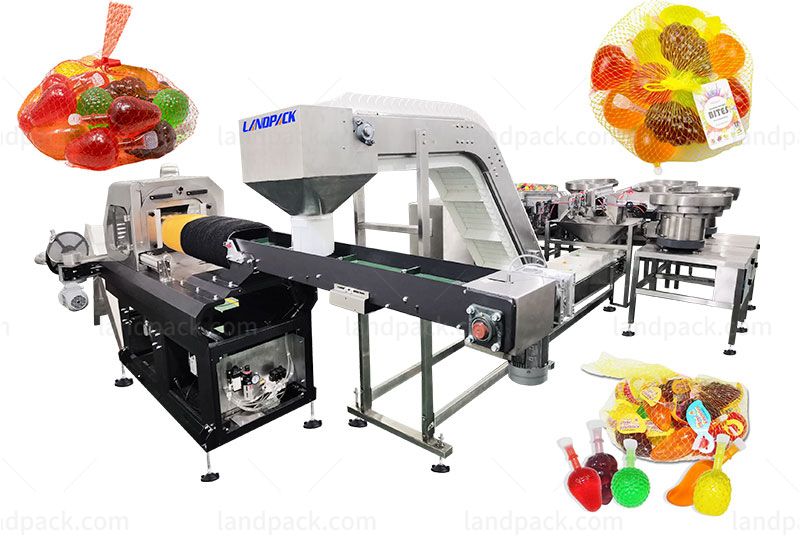

Automatic Granule Jelly Fruit Mesh Net Bags Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Automatic granule jelly fruit mesh net bags packing machine is suitable for the packaging of jelly, citrus, navel orange, pomelo, honey pomelo, apple, jujube, potato, onion, garlic, etc.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Mesh bag/net bag material
4. Mesh bag/net bag dimension

Packing Exambers:mesh bag packing machine

1. Fully automatic mesh bag machine, automatic counting, automatic mesh bag, automatic label tying.

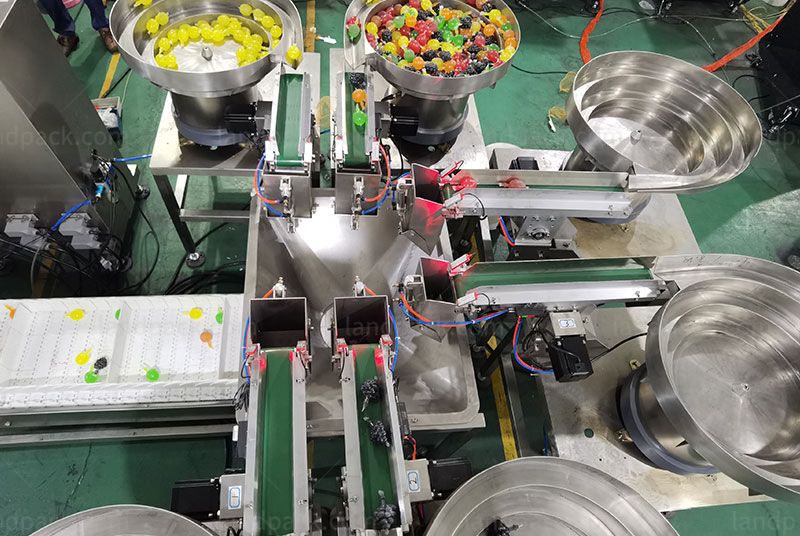

2. 6 vibration disks working separately, counting.

3. Automatically replace net management after using up packaging materials.

4. The operation interface is simple, easy, and convenient.

Model
LD-MB01
Bag Material
Plastic
Bag Type
Mesh bag
Size Range
80mm≤W≤300mm 100mm≤L≤400mm
Speed
30-40 bags/min
Voltage
220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure
0.65 Mpa
 Air Consumption
0.3 m³/min (Standard machine, no additional function)
 Body Dimension
1950*1010*2010mm

After receiving your inquiry,We will send you the quotation as soon as possible.
