Automatic Orange Fruit Vegetable Net Bag Mesh Bag Weighing Packaging Labeling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for binding continuous mesh bags for a variety of products, including fruits, vegetables, and more. Ideal for oranges, potatoes, onions, tomatoes, sweet potatoes, bell peppers, garlic, apples, shellfish, jelly, and even non-food items like LEGO bricks. Ensures secure and efficient packaging.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: mesh bag packing machine

Introduction:
The mesh bag packaging equipment operates at a maximum speed of 40 bags per minute, depending on the packaged product. The actual packaging speed may vary based on the specific characteristics of the product.

Working Process:

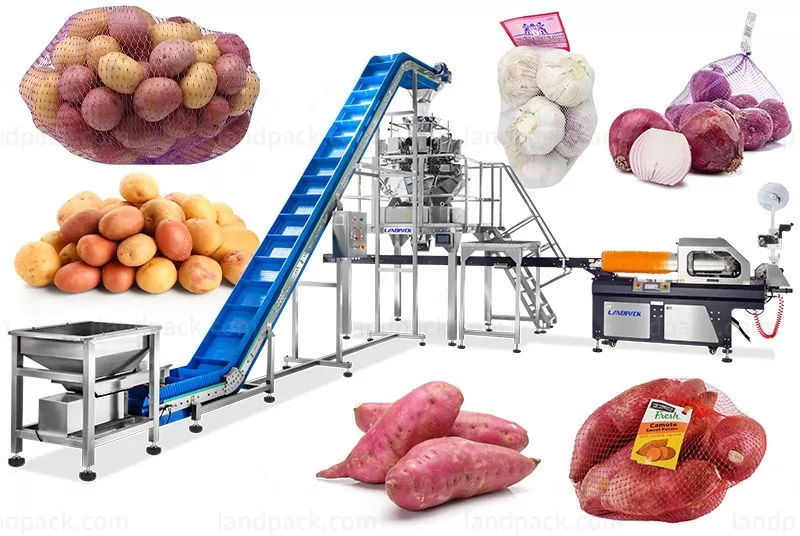

The workflow is as follows: First, products are manually sorted and placed on the conveyor belt. The conveyor then moves the materials to multi-head weigher and then fills them to the net bag packing machine via a lift conveyor. During the automatic packaging process, the set label is printed automatically. Finally, manual framing is conducted to complete the standardized packaging of the products, ensuring efficiency and precision.

Features:

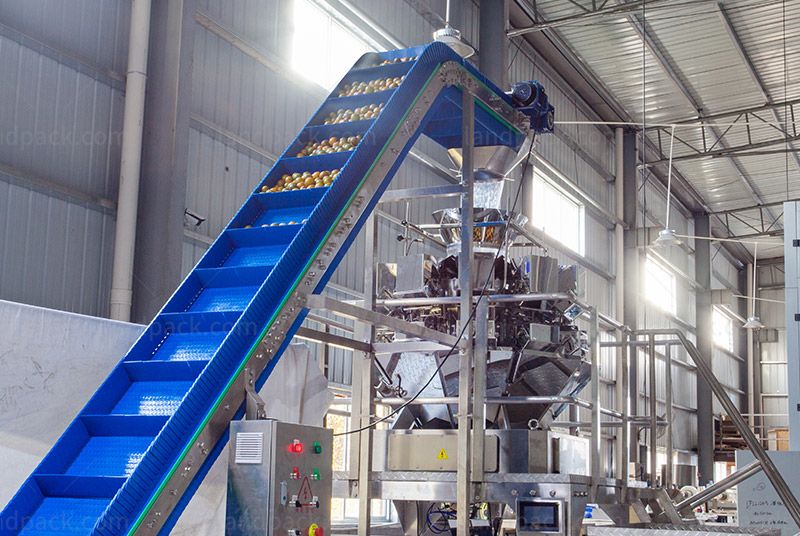

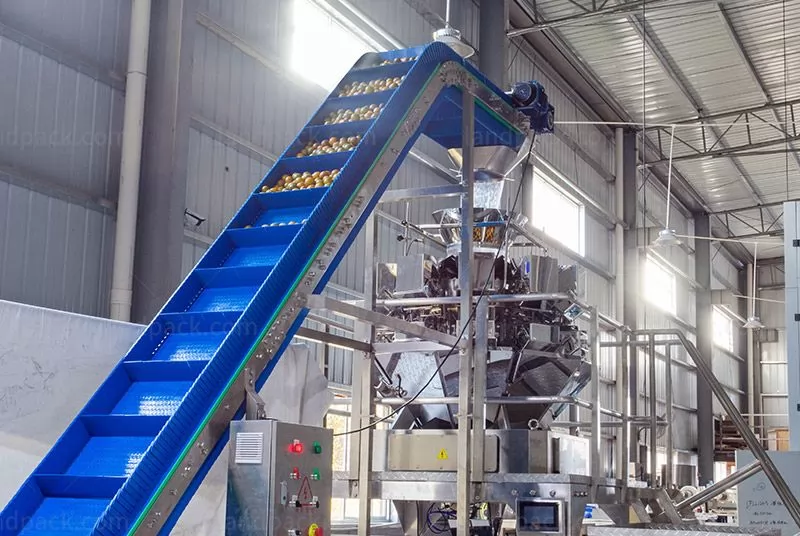

1. Large-incline conveyor belt efficiently lifts fruits and vegetables to the weighing system.

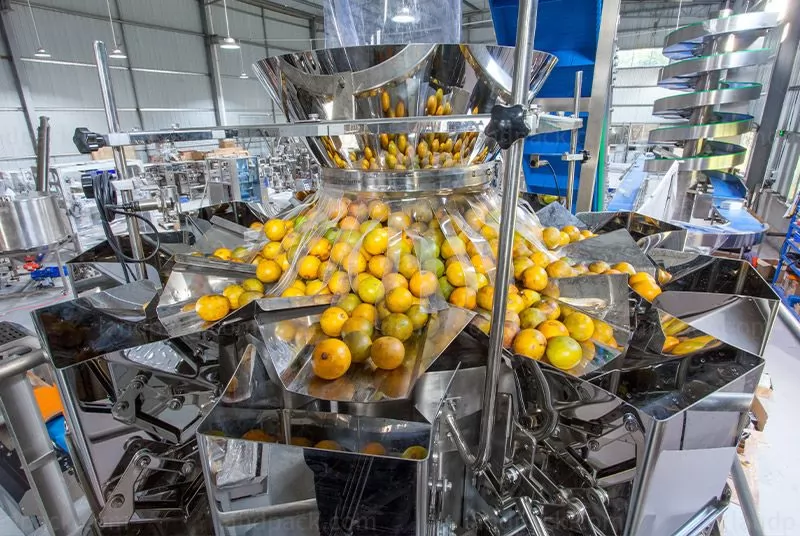

2. Multi-head weigher ensures high-speed and precise weighing.

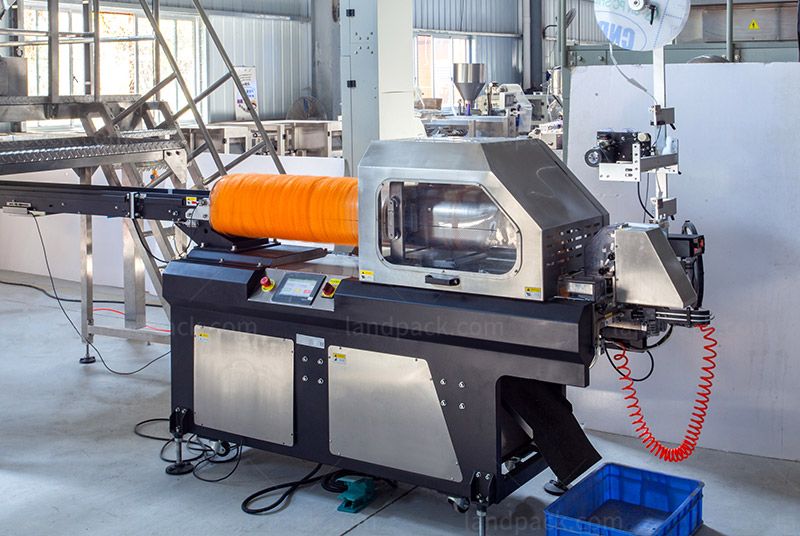

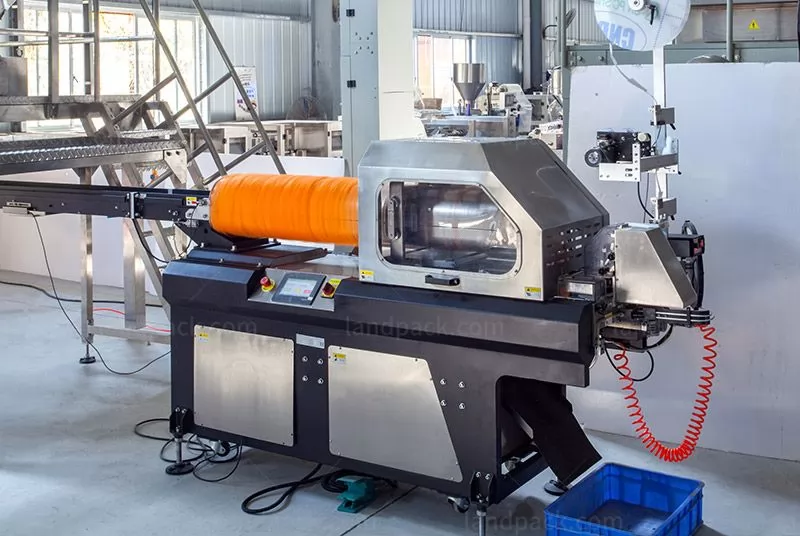

3. Automatic discharge to the horizontal mesh bag packing machine conveyor belt.
4. Mesh bag packing machine equipped with tap labeling and date printing functions.
5. Simplifies operations, freeing hands and boosting productivity.

ModelLD-MB01
Bag MaterialPlastic
Bag TypeMesh bag, net bag
Size Range80mm≤W≤300mm, 100mm≤L≤400mm
Speed30-40 bags/min
Voltage220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure0.65Mpa
Air Consumption0.3m³/min (Standard machine, no additional function)
Body Dimension1950*1010*2010mm
