Application:
It applies to fill all kinds of semi-viscous and viscous products into metal tubes such as glue, hand cream, ointment, paint, toothpaste, cosmetics, food industry products, and other soft tube sealing.
Optional Supporting Devices:
Three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:

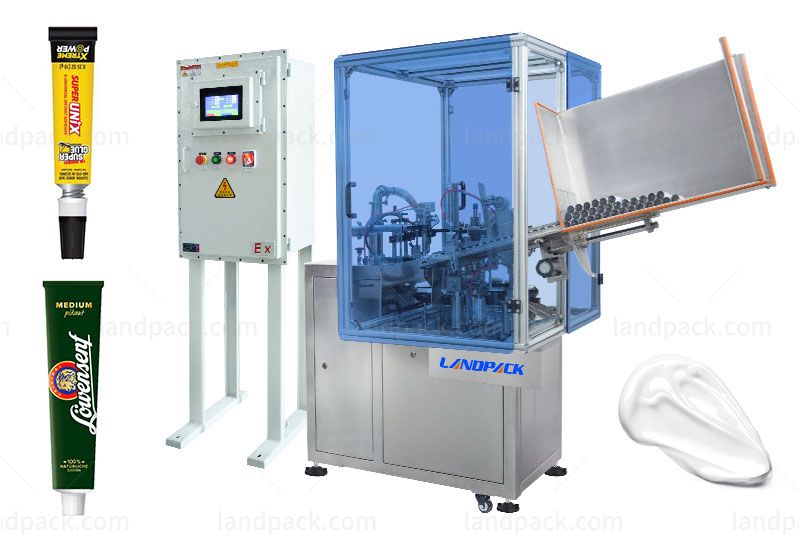

1. Explosion-Proof Electric Box: Ensures safe operation with flammable and explosive products.

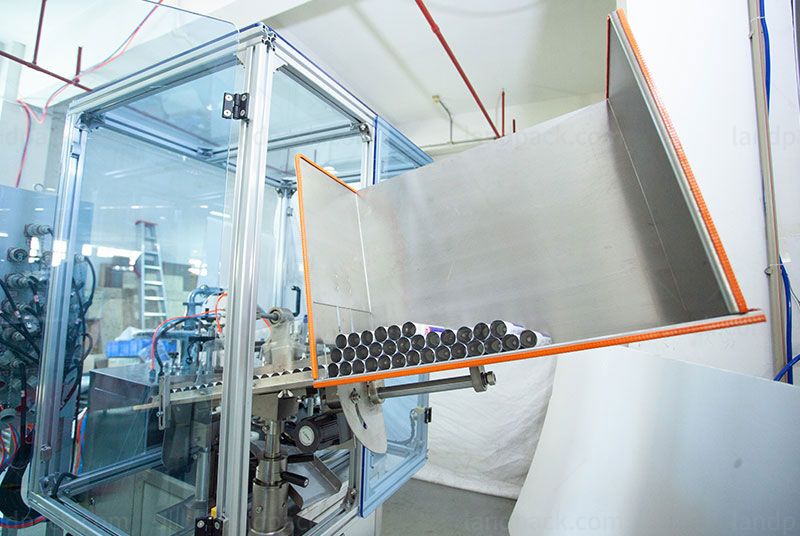

2. Automatic Tube Loading: Reduces labor costs and increases efficiency.
3. Three-Fold Sealing: Provides excellent end sealing to prevent material deterioration.
Workflow:

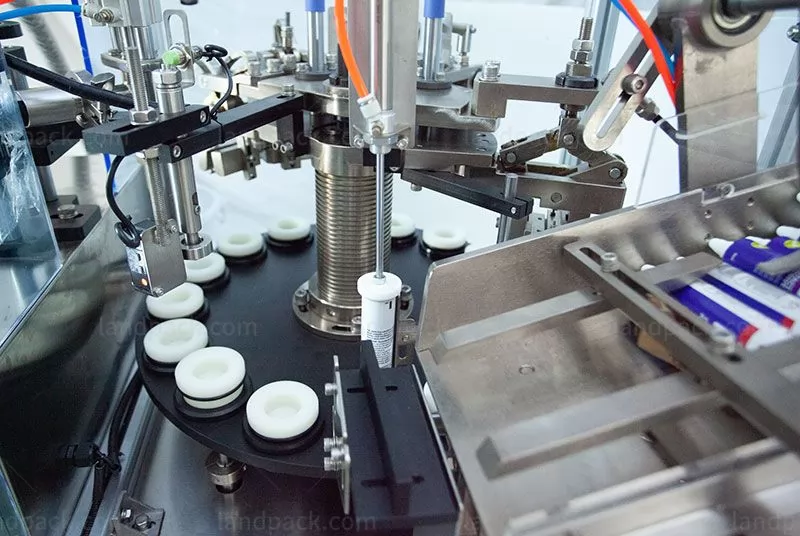

1. Auto tube hopper to feed tubes one by one
2. Fixing tube tightly with a pusher
3. Positioning the tube in the correct direction

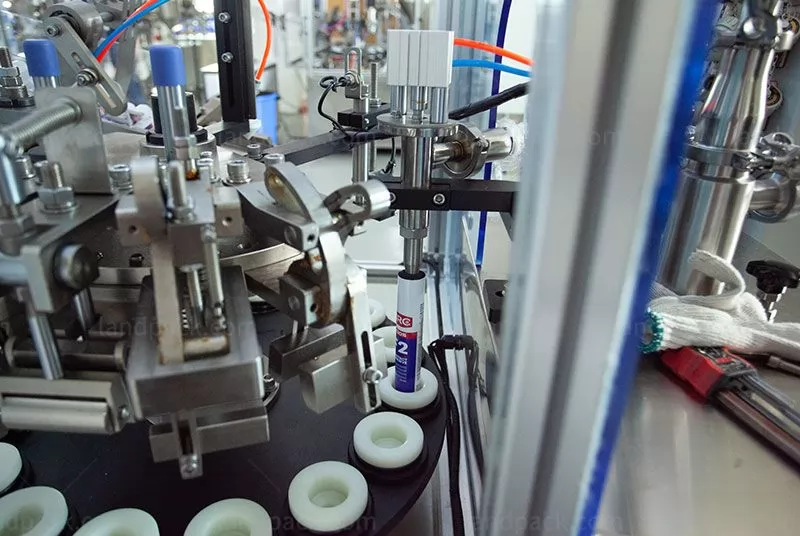

4. Filling by piston pump
5. Pressing & Folding station
6. Coding
7. Outlet
Model | LFF-ZWS-008 |
| Tube material | Aluminum / Metal tube |
| Tube diameter | 10-50 mm |
| Tube length | 25-250 mm (customizable) |
Filling volume | 75 ml/pcs (adjustable) |
| Filling accuracy | ≤±1% |
| Sealing way | Folding |
| Folding times | 2 folds |
| Output | 20-25 bpm |
| Capacity of liquid tank | 30L (the material tank will be removed) |
| Air consumption | 0.55-0.65Mpa |
Motor power | 1.1 KW (220V/50Hz, 110V/60Hz) |
| Machine size | 1230*700*1400 mm |
| Machine weight | 300kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
